Photoelectric Proximity Switches, Size M18W, Diffuse sensor with background suppression - operating distance 120 mm, Housing Length 61.5, Cable version

Manufacturer	CONTRINEX
Description	Photoelectric Proximity Switches, Size M18W, Diffuse sensor with background suppression - operating distance 120 mm, Housing Length 61.5, Cable version
Part number	LHK-1180W-301

CAD modely

Výběr produktu

Index	Selector	Type	Order number	Series	Size	Operating distance (mm)	Standard target	Power consumption (mA)	Emitter (nm)	Weight (g)	Compatible connection cables
1	1	NPN light-ON / cable	LHK-1180W-301	1180W	M18	10 ...120	100 x 100 mm white	25	LED red 660 nm	124	---
2	2	LHK-1180W-303	LHK-1180W-303	1180W	M18	10 ...120	100 x 100 mm white	25	LED red 660 nm	124	---

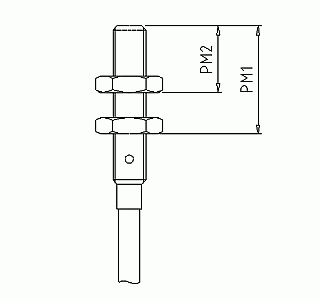

Nut position PM1 (mm)

Nut position PM2
