FYSP20..B - Double Pitch Sprockets

Manufacturer	Dongguan Forrun Hardware Co., Ltd.
Description	Double Pitch Sprockets - FYSP2040B19-S-14
Part number	FYSP2040B19-S-14
Mass	0.64 kg
Material	EN 1.1191 Equiv.
Accessories	Set Screws (Only for shaft bore specifcation N)

CAD modely

Požadavek cenové nabídky

Výběr produktu

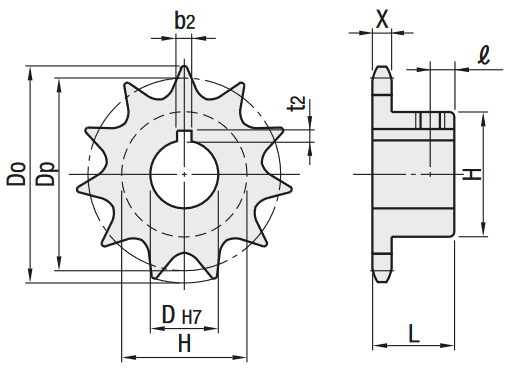

	Part Number (Partial)	Number of Teeth	Dp (mm)	Do (mm)	H (mm)	L (mm)	l (mm)	Mass (kg)
	FYSP2040B19	19	78.23	84	60	25	7	0.64
	FYSP2040B21	21	86.17	92	69	25	7	0.93
	FYSP2040B23	23	94.15	100	77	25	7	0.99
	FYSP2040B25	25	102.14	108	63	25	7	1.06
	FYSP2050B19	19	97.78	105	73	28	8	1.1
	FYSP2050B21	21	107.72	115	73	28	8	1.62
	FYSP2050B23	23	117.68	125	73	28	8	1.74
	FYSP2050B25	25	127.67	135	73	28	8	1.87

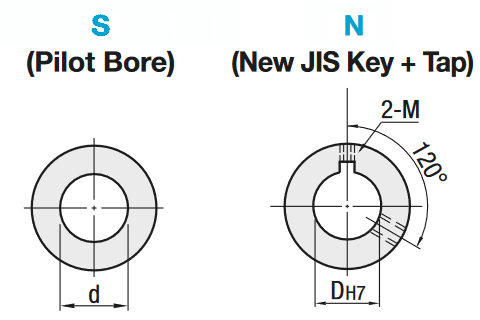

Shaft Bore Specification

Shaft Bore Diameter D

14
