G-6413 Green Pin® Open Wedge Socket CP (inch)

Manufacturer Green Pin®
Description G-6413 Green Pin® Open Wedge Socket CP, SKGOW008 (inch)
Part Number SKGOW008
CAD modely
Ujistěte se, že je tento software nainstalován.

Výběr produktu

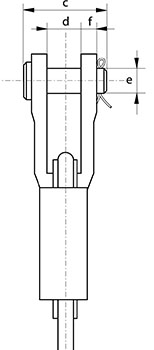

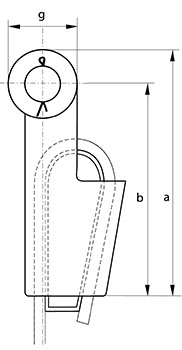

Part NumberDescriptiondrawing
in
PDF
number
minimum
breaking
load

t)
diameter
wire
rope

(inch)
length


a
(inch)
length
to
center pin
b
(inch)
width


c
(inch)
width
inside

d
(inch)
diameter
pin

e
(inch)
thickness
side
plates
f
(inch)
diameter
eye

g
(inch)
weight
each


(lbs)
SKGOW008G-6413 Green Pin® Open Wedge Socket CP, SKGOW008 (inch)PDF0.2585/165 1/324 5/16223/325/811/321 7/161.76
SKGOW010G-6413 Green Pin® Open Wedge Socket CP, SKGOW010 (inch)PDF0.5123/86 1/25 19/322 7/1613/1613/167/161 13/163.31
SKGOW013G-6413 Green Pin® Open Wedge Socket CP, SKGOW013 (inch)PDF1201/26 7/85 3/42 19/321115/322 1/45.29
SKGOW016G-6413 Green Pin® Open Wedge Socket CP, SKGOW016 (inch)PDF2255/88 5/166 29/323 1/41 1/41 3/1619/322 3/48.82
SKGOW019G-6413 Green Pin® Open Wedge Socket CP, SKGOW019 (inch)PDF3403/49 15/168 11/323 3/41 17/321 3/85/83 5/3216.31
SKGOW022G-6413 Green Pin® Open Wedge Socket CP, SKGOW022 (inch)PDF4557/811 11/329 1/24 5/161 3/41 5/83/43 3/424.3
SKGOW025G-6413 Green Pin® Open Wedge Socket CP, SKGOW025 (inch)PDF575112 15/1610 25/325 1/8227/84 5/1635.3
SKGOW028G-6413 Green Pin® Open Wedge Socket CP, SKGOW028 (inch)PDF6901 1/814 3/412 3/165 11/162 1/42 1/415 1/848.5
SKGOW032G-6413 Green Pin® Open Wedge Socket CP, SKGOW032 (inch)PDF71101 1/416 11/1613 25/326 3/322 1/22 17/321 1/85 3/468.3
SKGOW035G-6413 Green Pin® Open Wedge Socket CP, SKGOW035 (inch)PDF81251 3/818 11/1615 3/46 3/82 23/322 17/321 1/85 13/1686.0

Popis produktu

For all dimensions please consult the specific product page on the Green Pin(r) website for the most up to date technical information.

Dokumentace

Kontaktujte dodavatele

Green Pin®

Green Pin®

Green Pin® is the leading brand for premium quality lifting and lashing equipment including shackles, turnbuckles, hooks and fibre link chain. What makes it the leading brand? Only Green Pin® combines innovative, high quality products with industry leading availability and comprehensive, worldwide support. This unique combination means that with Green Pin® products you are always ready to get the job done. You are Green to Go. Discover the benefits of using Green Pin®. Green Pin® products conform to many certifications, including DNV and Lloyd’s.
