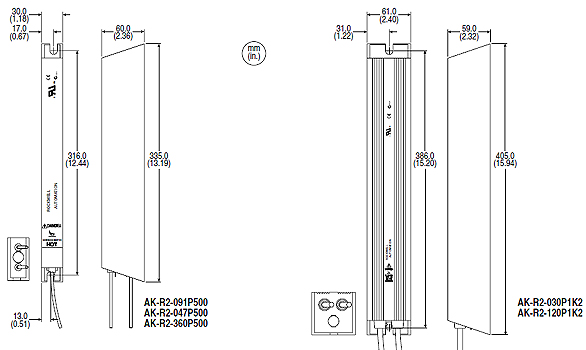

External Dynamic Brake Kit

CAD modely

Výběr produktu

Description	Drive and Motor Size	Cat. No.	Resistance (Ohms +/- 5%)	Continuous Power (kW)	Max Energy (kJ)	Max Braking (Torque % of Motor)	Application Type 1, Braking (Torque % of Motor)	Application Type 1, Duty Cycle (%)	Application Type 2, Braking (Torque % of Motor)	Application Type 2, Duty Cycle (%)
External Dynamic Brake Kit, 400-480 Volt AC Input Drives	0.37 (0.5)	AK-R2-360P500	360	0,086	17	305%	100%	47%	150%	31%
External Dynamic Brake Kit, 400-480 Volt AC Input Drives	0.75 (1)	AK-R2-360P500	360	0,086	17	220%	100%	23%	150%	15%
External Dynamic Brake Kit, 400-480 Volt AC Input Drives	1.5 (2)	AK-R2-360P500	360	0,086	17	110%	100%	12%	110%	11%
External Dynamic Brake Kit, 400-480 Volt AC Input Drives	2.2 (3)	AK-R2-120P1K2	120	0,26	52	197%	100%	24%	150%	16%
External Dynamic Brake Kit, 400-480 Volt AC Input Drives	4 (5)	AK-R2-120P1K2	120	0,26	52	124%	100%	13%	124%	10%
External Dynamic Brake Kit, 400-480 Volt AC Input Drives	5.5 (7.5)	AK-R2-120P1K2	120	0,26	52	90%	90%	10%	N/A	N/A
External Dynamic Brake Kit, 400-480 Volt AC Input Drives	7.5 (10)	AK-R2-120P1K2	120	0,26	52	66%	66%	10%	N/A	N/A
External Dynamic Brake Kit, 400-480 Volt AC Input Drives	11 (15)	AK-R2-120P1K2 + AK-R2-120P1K2	60	0,52	104	90%	90%	10%	N/A	N/A
External Dynamic Brake Kit, 400-480 Volt AC Input Drives	15 (20)	AK-R2-120P1K2 + AK-R2-120P1K2	60	0,52	104	66%	66%	10%	N/A	N/A
External Dynamic Brake Kit, 600 Volt AC Input Drives	0.37 (0.5)	AK-R2-360P500	360	0,086	17	274%	100%	46%	150%	31%
