Support rollers, without flange rings, without an inner ring

Manufacturer	SKF
Description	Support rollers, without flange rings, without an inner ring, Ø under rollers 7 mm
Part number	RSTO 5 TN
Mass	0.008 kg

CAD modely

Požadavek cenové nabídky

Výběr produktu

Stupeň podrobností

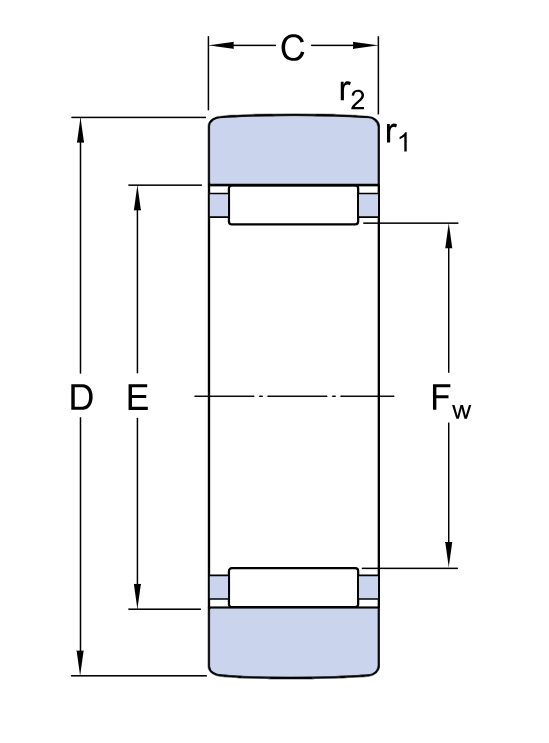

	Part number	Outside Ø : D (mm)	Ø under rollers : Fw (mm)	Width : C (mm)	Raceway Ø outer ring : E (mm)	Chamfer dimension outer ring : r1,2min. (mm)	Basic dynamic load rating : C (kN)	Basic static load rating : C0 (kN)	Fatigue load limit : Pu (kN)	Maximum dynamic radial loads : Frmax. (kN)	Maximum static radial loads : F0rmax. (kN)	Limiting speed (rpm)	Mass support roller (kg)
	RSTO 5 TN	16	7	7.8	10	0.3	2.5	2.5	0.27	3.5	5	8000	0.008
	RSTO 6 TN	19	10	9.8	13	0.3	3.7	4.5	0.5	4.3	6.1	7000	0.012
	RSTO 8 TN	24	12	9.8	15	0.3	4.1	5.4	0.6	7.5	10.8	7000	0.021
	RSTO 10	30	14	11.8	20	0.3	8.3	8.8	1	8.5	12.2	6000	0.042
	RSTO 12	32	16	11.8	22	0.3	8.8	9.8	1.2	8.3	12	5600	0.049
	RSTO 15	35	20	11.8	26	0.3	9.1	10.6	1.3	7.1	10	5000	0.05
	RSTO 17	40	22	15.8	29	0.3	14.2	17.6	2.1	12	17.3	4500	0.088
	RSTO 20	47	25	15.8	32	0.3	16.1	21.2	2.5	18.6	26.5	4000	0.13
	RSTO 25	52	30	15.8	37	0.3	16.5	22.8	2.7	18	26	3400	0.15
	RSTO 30	62	38	19.8	46	0.6	22.9	34.5	4.3	23.6	33.5	2600	0.255
