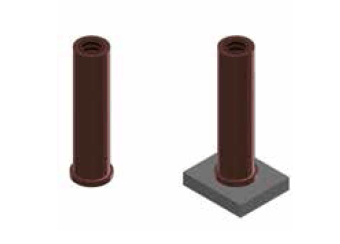

Innengewindebuchse - typ IS

Hersteller	C2G - Soudage Innovation
Standard	EN ISO 13918, EN ISO 898-1
Bezeichnung	Innengewidenbusche IS/TCDT - Ø5 - Schweißlänge: 25 mm - Messing
Referenz	TCDTLTNM3525
Material	Messing

CAD-Modelle

Angebotsanfrage

Produktauswahl

Index	Selector	Referenz	Material	d1+-0,1 (mm)	l1	D6	b (mm)	d2 +-0,2 (mm)	h1	For price and availability
1	1	TCDTACM3506	Stahl 4,8	5	6	M3	4	6	0,7-1,4	For price and availability
2	2	TCDTACM3508	Stahl 4,8	5	8	M3	4	6	0,7-1,4	For price and availability
3	3	TCDTACM3510	Stahl 4,8	5	10	M3	5	6	0,7-1,4	For price and availability
4	4	TCDTACM3512	Stahl 4,8	5	12	M3	5	6	0,7-1,4	For price and availability
5	5	TCDTACM3515	Stahl 4,8	5	15	M3	5	6	0,7-1,4	For price and availability
6	6	TCDTACM3520	Stahl 4,8	5	20	M3	5	6	0,7-1,4	For price and availability
7	7	TCDTACM3525	Stahl 4,8	5	25	M3	5	6	0,7-1,4	For price and availability
8	8	TCDTACM3530	Stahl 4,8	5	30	M3	5	6	0,7-1,4	For price and availability
9	9	TCDTACM4608	Stahl 4,8	6	8	M4	5	7	0,7-1,4	For price and availability
10	10	TCDTACM4610	Stahl 4,8	6	10	M4	5	7	0,7-1,4	For price and availability
11	11	TCDTACM4612	Stahl 4,8	6	12	M4	5	7	0,7-1,4	For price and availability
12	12	TCDTACM4615	Stahl 4,8	6	15	M4	5	7	0,7-1,4	For price and availability
13	13	TCDTACM4620	Stahl 4,8	6	20	M4	5	7	0,7-1,4	For price and availability
14	14	TCDTACM4625	Stahl 4,8	6	25	M4	5	7	0,7-1,4	For price and availability
15	15	TCDTACM4630	Stahl 4,8	6	30	M4	5	7	0,7-1,4	For price and availability
16	16	TCDTACM4635	Stahl 4,8	6	35	M4	5	7	0,7-1,4	For price and availability
17	17	TCDTACM4640	Stahl 4,8	6	40	M4	5	7	0,7-1,4	For price and availability
18	18	TCDTACM57110	Stahl 4,8	7.1	10	M5	6	9	0,8-1,4	For price and availability
19	19	TCDTACM57112	Stahl 4,8	7.1	12	M5	6	9	0,8-1,4	For price and availability
20	20	TCDTACM57115	Stahl 4,8	7.1	15	M5	6	9	0,8-1,4	For price and availability
21	21	TCDTACM57120	Stahl 4,8	7.1	20	M5	6	9	0,8-1,4	For price and availability
22	22	TCDTACM57125	Stahl 4,8	7.1	25	M5	6	9	0,8-1,4	For price and availability
23	23	TCDTACM57130	Stahl 4,8	7.1	30	M5	6	9	0,8-1,4	For price and availability
24	24	TCDTACM57135	Stahl 4,8	7.1	35	M5	6	9	0,8-1,4	For price and availability
25	25	TCDTACM57140	Stahl 4,8	7.1	40	M5	6	9	0,8-1,4	For price and availability
26	26	TCDTACM5815	Stahl 4,8	8	15	M6	10	9	0,8-1,4	For price and availability
27	27	TCDTACM5820	Stahl 4,8	8	20	M6	10	9	0,8-1,4	For price and availability
28	28	TCDTACM5825	Stahl 4,8	8	25	M6	10	9	0,8-1,4	For price and availability
29	29	TCDTACM5830	Stahl 4,8	8	30	M6	10	9	0,8-1,4	For price and availability
30	30	TCDTACM5835	Stahl 4,8	8	35	M6	10	9	0,8-1,4	For price and availability
31	31	TCDTACM5840	Stahl 4,8	8	40	M6	10	9	0,8-1,4	For price and availability
32	32	TCDT304M3506	Edelstahl A2	5	6	M3	4	6	0,7-1,4	For price and availability
33	33	TCDT304M3508	Edelstahl A2	5	8	M3	4	6	0,7-1,4	For price and availability
34	34	TCDT304M3510	Edelstahl A2	5	10	M3	5	6	0,7-1,4	For price and availability
35	35	TCDT304M3512	Edelstahl A2	5	12	M3	5	6	0,7-1,4	For price and availability
36	36	TCDT304M3515	Edelstahl A2	5	15	M3	5	6	0,7-1,4	For price and availability
37	37	TCDT304M3520	Edelstahl A2	5	20	M3	5	6	0,7-1,4	For price and availability
38	38	TCDT304M3525	Edelstahl A2	5	25	M3	5	6	0,7-1,4	For price and availability
39	39	TCDT304M3530	Edelstahl A2	5	30	M3	5	6	0,7-1,4	For price and availability
40	40	TCDT304M4608	Edelstahl A2	6	8	M4	5	7	0,7-1,4	For price and availability
41	41	TCDT304M4610	Edelstahl A2	6	10	M4	5	7	0,7-1,4	For price and availability
42	42	TCDT304M4612	Edelstahl A2	6	12	M4	5	7	0,7-1,4	For price and availability
43	43	TCDT304M4615	Edelstahl A2	6	15	M4	5	7	0,7-1,4	For price and availability
44	44	TCDT304M4620	Edelstahl A2	6	20	M4	5	7	0,7-1,4	For price and availability
45	45	TCDT304M4625	Edelstahl A2	6	25	M4	5	7	0,7-1,4	For price and availability
46	46	TCDT304M4630	Edelstahl A2	6	30	M4	5	7	0,7-1,4	For price and availability
47	47	TCDT304M4635	Edelstahl A2	6	35	M4	5	7	0,7-1,4	For price and availability
48	48	TCDT304M4640	Edelstahl A2	6	40	M4	5	7	0,7-1,4	For price and availability
49	49	TCDT304M57110	Edelstahl A2	7.1	10	M5	6	9	0,8-1,4	For price and availability
50	50	TCDT304M57112	Edelstahl A2	7.1	12	M5	6	9	0,8-1,4	For price and availability
51	51	TCDT304M57115	Edelstahl A2	7.1	15	M5	6	9	0,8-1,4	For price and availability
52	52	TCDT304M57120	Edelstahl A2	7.1	20	M5	6	9	0,8-1,4	For price and availability
53	53	TCDT304M57125	Edelstahl A2	7.1	25	M5	6	9	0,8-1,4	For price and availability
54	54	TCDT304M57130	Edelstahl A2	7.1	30	M5	6	9	0,8-1,4	For price and availability
55	55	TCDT304M57135	Edelstahl A2	7.1	35	M5	6	9	0,8-1,4	For price and availability
56	56	TCDT304M57140	Edelstahl A2	7.1	40	M5	6	9	0,8-1,4	For price and availability
57	57	TCDT304M5815	Edelstahl A2	8	15	M6	10	9	0,8-1,4	For price and availability
58	58	TCDT304M5820	Edelstahl A2	8	20	M6	10	9	0,8-1,4	For price and availability
59	59	TCDT304M5825	Edelstahl A2	8	25	M6	10	9	0,8-1,4	For price and availability
60	60	TCDT304M5830	Edelstahl A2	8	30	M6	10	9	0,8-1,4	For price and availability
61	61	TCDT304M5835	Edelstahl A2	8	35	M6	10	9	0,8-1,4	For price and availability
62	62	TCDT304M5840	Edelstahl A2	8	40	M6	10	9	0,8-1,4	For price and availability
63	63	TCDTALUM3506	Aluminium	5	6	M3	4	6	0,7-1,4	For price and availability
64	64	TCDTALUM3508	Aluminium	5	8	M3	4	6	0,7-1,4	For price and availability
65	65	TCDTALUM3510	Aluminium	5	10	M3	5	6	0,7-1,4	For price and availability
66	66	TCDTALUM3512	Aluminium	5	12	M3	5	6	0,7-1,4	For price and availability
67	67	TCDTALUM3515	Aluminium	5	15	M3	5	6	0,7-1,4	For price and availability
68	68	TCDTALUM3520	Aluminium	5	20	M3	5	6	0,7-1,4	For price and availability
69	69	TCDTALUM3525	Aluminium	5	25	M3	5	6	0,7-1,4	For price and availability
70	70	TCDTALUM3530	Aluminium	5	30	M3	5	6	0,7-1,4	For price and availability
71	71	TCDTALUM4608	Aluminium	6	8	M4	5	7	0,7-1,4	For price and availability
72	72	TCDTALUM4610	Aluminium	6	10	M4	5	7	0,7-1,4	For price and availability
73	73	TCDTALUM4612	Aluminium	6	12	M4	5	7	0,7-1,4	For price and availability
74	74	TCDTALUM4615	Aluminium	6	15	M4	5	7	0,7-1,4	For price and availability
75	75	TCDTALUM4620	Aluminium	6	20	M4	5	7	0,7-1,4	For price and availability
76	76	TCDTALUM4625	Aluminium	6	25	M4	5	7	0,7-1,4	For price and availability
77	77	TCDTALUM4630	Aluminium	6	30	M4	5	7	0,7-1,4	For price and availability
78	78	TCDTALUM4635	Aluminium	6	35	M4	5	7	0,7-1,4	For price and availability
79	79	TCDTALUM4640	Aluminium	6	40	M4	5	7	0,7-1,4	For price and availability
80	80	TCDTALUM57110	Aluminium	7.1	10	M5	6	9	0,8-1,4	For price and availability
81	81	TCDTALUM57112	Aluminium	7.1	12	M5	6	9	0,8-1,4	For price and availability
82	82	TCDTALUM57115	Aluminium	7.1	15	M5	6	9	0,8-1,4	For price and availability
83	83	TCDTALUM57120	Aluminium	7.1	20	M5	6	9	0,8-1,4	For price and availability
84	84	TCDTALUM57125	Aluminium	7.1	25	M5	6	9	0,8-1,4	For price and availability
85	85	TCDTALUM57130	Aluminium	7.1	30	M5	6	9	0,8-1,4	For price and availability
86	86	TCDTALUM57135	Aluminium	7.1	35	M5	6	9	0,8-1,4	For price and availability
87	87	TCDTALUM57140	Aluminium	7.1	40	M5	6	9	0,8-1,4	For price and availability
88	88	TCDTALUM5815	Aluminium	8	15	M6	10	9	0,8-1,4	For price and availability
89	89	TCDTALUM5820	Aluminium	8	20	M6	10	9	0,8-1,4	For price and availability
90	90	TCDTALUM5825	Aluminium	8	25	M6	10	9	0,8-1,4	For price and availability
91	91	TCDTALUM5830	Aluminium	8	30	M6	10	9	0,8-1,4	For price and availability
92	92	TCDTALUM5835	Aluminium	8	35	M6	10	9	0,8-1,4	For price and availability
93	93	TCDTALUM5840	Aluminium	8	40	M6	10	9	0,8-1,4	For price and availability
94	94	TCDTLTNM3506	Messing	5	6	M3	4	6	0,7-1,4	For price and availability
95	95	TCDTLTNM3508	Messing	5	8	M3	4	6	0,7-1,4	For price and availability
96	96	TCDTLTNM3510	Messing	5	10	M3	5	6	0,7-1,4	For price and availability
97	97	TCDTLTNM3512	Messing	5	12	M3	5	6	0,7-1,4	For price and availability
98	98	TCDTLTNM3515	Messing	5	15	M3	5	6	0,7-1,4	For price and availability
99	99	TCDTLTNM3520	Messing	5	20	M3	5	6	0,7-1,4	For price and availability
100	100	TCDTLTNM3525	Messing	5	25	M3	5	6	0,7-1,4	For price and availability
101	101	TCDTLTNM3530	Messing	5	30	M3	5	6	0,7-1,4	For price and availability
102	102	TCDTLTNM4608	Messing	6	8	M4	5	7	0,7-1,4	For price and availability
103	103	TCDTLTNM4610	Messing	6	10	M4	5	7	0,7-1,4	For price and availability
104	104	TCDTLTNM4612	Messing	6	12	M4	5	7	0,7-1,4	For price and availability
105	105	TCDTLTNM4615	Messing	6	15	M4	5	7	0,7-1,4	For price and availability
106	106	TCDTLTNM4620	Messing	6	20	M4	5	7	0,7-1,4	For price and availability
107	107	TCDTLTNM4625	Messing	6	25	M4	5	7	0,7-1,4	For price and availability
108	108	TCDTLTNM4630	Messing	6	30	M4	5	7	0,7-1,4	For price and availability
109	109	TCDTLTNM4635	Messing	6	35	M4	5	7	0,7-1,4	For price and availability
110	110	TCDTLTNM4640	Messing	6	40	M4	5	7	0,7-1,4	For price and availability
111	111	TCDTLTNM57110	Messing	7.1	10	M5	6	9	0,8-1,4	For price and availability
112	112	TCDTLTNM57112	Messing	7.1	12	M5	6	9	0,8-1,4	For price and availability
113	113	TCDTLTNM57115	Messing	7.1	15	M5	6	9	0,8-1,4	For price and availability
114	114	TCDTLTNM57120	Messing	7.1	20	M5	6	9	0,8-1,4	For price and availability
115	115	TCDTLTNM57125	Messing	7.1	25	M5	6	9	0,8-1,4	For price and availability
116	116	TCDTLTNM57130	Messing	7.1	30	M5	6	9	0,8-1,4	For price and availability
117	117	TCDTLTNM57135	Messing	7.1	35	M5	6	9	0,8-1,4	For price and availability
118	118	TCDTLTNM57140	Messing	7.1	40	M5	6	9	0,8-1,4	For price and availability
119	119	TCDTLTNM5815	Messing	8	15	M6	10	9	0,8-1,4	For price and availability
120	120	TCDTLTNM5820	Messing	8	20	M6	10	9	0,8-1,4	For price and availability
121	121	TCDTLTNM5825	Messing	8	25	M6	10	9	0,8-1,4	For price and availability
122	122	TCDTLTNM5830	Messing	8	30	M6	10	9	0,8-1,4	For price and availability
123	123	TCDTLTNM5835	Messing	8	35	M6	10	9	0,8-1,4	For price and availability
124	124	TCDTLTNM5840	Messing	8	40	M6	10	9	0,8-1,4	For price and availability

h1 (mm)

Dokumentation

Katalog Seite

Schweißverfahren
