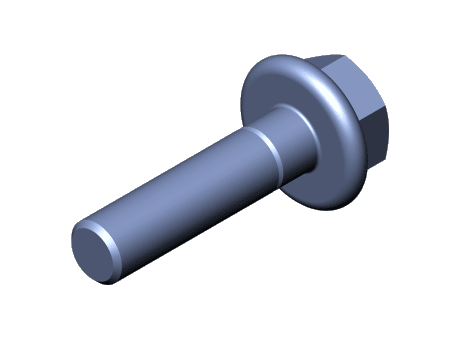

Sechskant-Flanschschrauben DIN 6921

Standard	DIN 6921
Bezeichnung	'Sechskantschraube DIN 6921 - M5 x 10 - 8.8
Referenz	DIN 6921 - d M5 x l 10 - 8.8
Material	Stahl
Omniclass number	23.13.23.11.13.19

CAD-Modelle

Produktauswahl

Index	Selector	Nenn Ø	Abstand (mm)	Länge (mm)	Kopfhöhe (mm)	Einsteckschlüssel Größe (mm)
1	1	M5	0.8	10	5.4	8
2	2	M5	0.8	12	5.4	8
3	3	M5	0.8	16	5.4	8
4	4	M5	0.8	20	5.4	8
5	5	M5	0.8	25	5.4	8
6	6	M5	0.8	30	5.4	8
7	7	M5	0.8	35	5.4	8
8	8	M5	0.8	40	5.4	8
9	9	M5	0.8	45	5.4	8
10	10	M5	0.8	50	5.4	8
11	11	M6	1	12	6.6	10
12	12	M6	1	16	6.6	10
13	13	M6	1	20	6.6	10
14	14	M6	1	25	6.6	10
15	15	M6	1	30	6.6	10
16	16	M6	1	35	6.6	10
17	17	M6	1	40	6.6	10
18	18	M6	1	45	6.6	10
19	19	M6	1	50	6.6	10
20	20	M6	1	55	6.6	10
21	21	M6	1	60	6.6	10
22	22	M8	1	16	8.1	13
23	23	M8	1	20	8.1	13
24	24	M8	1	25	8.1	13
25	25	M8	1	30	8.1	13
26	26	M8	1	35	8.1	13
27	27	M8	1	40	8.1	13
28	28	M8	1	45	8.1	13
29	29	M8	1	50	8.1	13
30	30	M8	1	55	8.1	13
31	31	M8	1	60	8.1	13
32	32	M8	1	65	8.1	13
33	33	M8	1	70	8.1	13
34	35	M8	1	80	8.1	13
35	36	M8	1.25	16	8.1	13
36	37	M8	1.25	20	8.1	13
37	38	M8	1.25	25	8.1	13
38	39	M8	1.25	30	8.1	13
39	40	M8	1.25	35	8.1	13
40	41	M8	1.25	40	8.1	13
41	42	M8	1.25	45	8.1	13
42	43	M8	1.25	50	8.1	13
43	44	M8	1.25	55	8.1	13
44	45	M8	1.25	60	8.1	13
45	46	M8	1.25	65	8.1	13
46	47	M8	1.25	70	8.1	13
47	49	M8	1.25	80	8.1	13
48	50	M10	1	20	9.2	15
49	51	M10	1	25	9.2	15
50	52	M10	1	30	9.2	15
51	53	M10	1	35	9.2	15
52	54	M10	1	40	9.2	15
53	55	M10	1	45	9.2	15
54	56	M10	1	50	9.2	15
55	57	M10	1	55	9.2	15
56	58	M10	1	60	9.2	15
57	59	M10	1	65	9.2	15
58	60	M10	1	70	9.2	15
59	61	M10	1	80	9.2	15
60	62	M10	1	90	9.2	15
61	63	M10	1	100	9.2	15
62	64	M10	1.25	20	9.2	15
63	65	M10	1.25	25	9.2	15
64	66	M10	1.25	30	9.2	15
65	67	M10	1.25	35	9.2	15
66	68	M10	1.25	40	9.2	15
67	69	M10	1.25	45	9.2	15
68	70	M10	1.25	50	9.2	15
69	71	M10	1.25	55	9.2	15
70	72	M10	1.25	60	9.2	15
71	73	M10	1.25	65	9.2	15
72	74	M10	1.25	70	9.2	15
73	75	M10	1.25	80	9.2	15
74	76	M10	1.25	90	9.2	15
75	77	M10	1.25	100	9.2	15
76	78	M10	1.5	20	9.2	15
77	79	M10	1.5	25	9.2	15
78	80	M10	1.5	30	9.2	15
79	81	M10	1.5	35	9.2	15
80	82	M10	1.5	40	9.2	15
81	83	M10	1.5	45	9.2	15
82	84	M10	1.5	50	9.2	15
83	85	M10	1.5	55	9.2	15
84	86	M10	1.5	60	9.2	15
85	87	M10	1.5	65	9.2	15
86	88	M10	1.5	70	9.2	15
87	89	M10	1.5	80	9.2	15
88	90	M10	1.5	90	9.2	15
89	91	M10	1.5	100	9.2	15
90	92	M12	1.25	25	11.5	16
91	93	M12	1.25	30	11.5	16
92	94	M12	1.25	35	11.5	16
93	95	M12	1.25	40	11.5	16
94	96	M12	1.25	45	11.5	16
95	97	M12	1.25	50	11.5	16
96	98	M12	1.25	55	11.5	16
97	99	M12	1.25	60	11.5	16
98	100	M12	1.25	65	11.5	16
99	101	M12	1.25	70	11.5	16
100	102	M12	1.25	80	11.5	16
101	103	M12	1.25	90	11.5	16
102	104	M12	1.25	100	11.5	16
103	105	M12	1.25	110	11.5	16
104	236	M12	1.25	120	11.5	16
105	106	M12	1.5	25	11.5	16
106	107	M12	1.5	30	11.5	16
107	108	M12	1.5	35	11.5	16
108	109	M12	1.5	40	11.5	16
109	110	M12	1.5	45	11.5	16
110	111	M12	1.5	50	11.5	16
111	112	M12	1.5	55	11.5	16
112	113	M12	1.5	60	11.5	16
113	114	M12	1.5	65	11.5	16
114	115	M12	1.5	70	11.5	16
115	116	M12	1.5	80	11.5	16
116	117	M12	1.5	90	11.5	16
117	118	M12	1.5	100	11.5	16
118	119	M12	1.5	110	11.5	16
119	237	M12	1.5	120	11.5	16
120	120	M12	1.75	25	11.5	16
121	121	M12	1.75	30	11.5	16
122	122	M12	1.75	35	11.5	16
123	123	M12	1.75	40	11.5	16
124	124	M12	1.75	45	11.5	16
125	125	M12	1.75	50	11.5	16
126	126	M12	1.75	55	11.5	16
127	127	M12	1.75	60	11.5	16
128	128	M12	1.75	65	11.5	16
129	129	M12	1.75	70	11.5	16
130	130	M12	1.75	80	11.5	16
131	131	M12	1.75	90	11.5	16
132	132	M12	1.75	100	11.5	16
133	133	M12	1.75	110	11.5	16
134	238	M12	1.75	120	11.5	16
135	134	M14	1.5	30	12.8	18
136	135	M14	1.5	35	12.8	18
137	136	M14	1.5	40	12.8	18
138	137	M14	1.5	45	12.8	18
139	138	M14	1.5	50	12.8	18
140	139	M14	1.5	55	12.8	18
141	140	M14	1.5	60	12.8	18
142	141	M14	1.5	65	12.8	18
143	142	M14	1.5	70	12.8	18
144	143	M14	1.5	80	12.8	18
145	144	M14	1.5	90	12.8	18
146	145	M14	1.5	100	12.8	18
147	146	M14	1.5	110	12.8	18
148	147	M14	1.5	120	12.8	18
149	148	M14	1.5	130	12.8	18
150	149	M14	1.5	140	12.8	18
151	150	M14	2	30	12.8	18
152	151	M14	2	35	12.8	18
153	152	M14	2	40	12.8	18
154	153	M14	2	45	12.8	18
155	154	M14	2	50	12.8	18
156	155	M14	2	55	12.8	18
157	156	M14	2	60	12.8	18
158	157	M14	2	65	12.8	18
159	158	M14	2	70	12.8	18
160	159	M14	2	80	12.8	18
161	160	M14	2	90	12.8	18
162	161	M14	2	100	12.8	18
163	162	M14	2	110	12.8	18
164	163	M14	2	120	12.8	18
165	164	M14	2	130	12.8	18
166	165	M14	2	140	12.8	18
167	166	M16	1.5	35	14.4	21
168	167	M16	1.5	40	14.4	21
169	168	M16	1.5	45	14.4	21
170	169	M16	1.5	50	14.4	21
171	170	M16	1.5	55	14.4	21
172	171	M16	1.5	60	14.4	21
173	172	M16	1.5	65	14.4	21
174	173	M16	1.5	70	14.4	21
175	174	M16	1.5	80	14.4	21
176	175	M16	1.5	90	14.4	21
177	176	M16	1.5	100	14.4	21
178	177	M16	1.5	110	14.4	21
179	178	M16	1.5	120	14.4	21
180	179	M16	1.5	130	14.4	21
181	180	M16	1.5	140	14.4	21
182	181	M16	1.5	150	14.4	21
183	182	M16	1.5	160	14.4	21
184	183	M16	2	35	14.4	21
185	184	M16	2	40	14.4	21
186	185	M16	2	45	14.4	21
187	186	M16	2	50	14.4	21
188	187	M16	2	55	14.4	21
189	188	M16	2	60	14.4	21
190	189	M16	2	65	14.4	21
191	190	M16	2	70	14.4	21
192	191	M16	2	80	14.4	21
193	192	M16	2	90	14.4	21
194	193	M16	2	100	14.4	21
195	194	M16	2	110	14.4	21
196	195	M16	2	120	14.4	21
197	196	M16	2	130	14.4	21
198	197	M16	2	140	14.4	21
199	198	M16	2	150	14.4	21
200	199	M16	2	160	14.4	21
201	200	M20	1.5	40	17.1	27
202	201	M20	1.5	45	17.1	27
203	202	M20	1.5	50	17.1	27
204	203	M20	1.5	55	17.1	27
205	204	M20	1.5	60	17.1	27
206	205	M20	1.5	65	17.1	27
207	206	M20	1.5	70	17.1	27
208	207	M20	1.5	80	17.1	27
209	208	M20	1.5	90	17.1	27
210	209	M20	1.5	100	17.1	27
211	210	M20	1.5	110	17.1	27
212	211	M20	1.5	120	17.1	27
213	212	M20	1.5	130	17.1	27
214	213	M20	1.5	140	17.1	27
215	214	M20	1.5	150	17.1	27
216	215	M20	1.5	160	17.1	27
217	216	M20	1.5	180	17.1	27
218	217	M20	1.5	200	17.1	27
219	218	M20	2.5	40	17.1	27
220	219	M20	2.5	45	17.1	27
221	220	M20	2.5	50	17.1	27
222	221	M20	2.5	55	17.1	27
223	222	M20	2.5	60	17.1	27
224	223	M20	2.5	65	17.1	27
225	224	M20	2.5	70	17.1	27
226	225	M20	2.5	80	17.1	27
227	226	M20	2.5	90	17.1	27
228	227	M20	2.5	100	17.1	27
229	228	M20	2.5	110	17.1	27
230	229	M20	2.5	120	17.1	27
231	230	M20	2.5	130	17.1	27
232	231	M20	2.5	140	17.1	27
233	232	M20	2.5	150	17.1	27
234	233	M20	2.5	160	17.1	27
235	234	M20	2.5	180	17.1	27
236	235	M20	2.5	200	17.1	27
