L-LC 2-Way Cartridge Valve

Manufacturer	Hengli Hydraulic
Description	2-Way Cartridge Valve L-LC16A40D-L7X
Part number	L-LC16A40D-L7X

CAD-Modelle

Angebotsanfrage

Produktauswahl

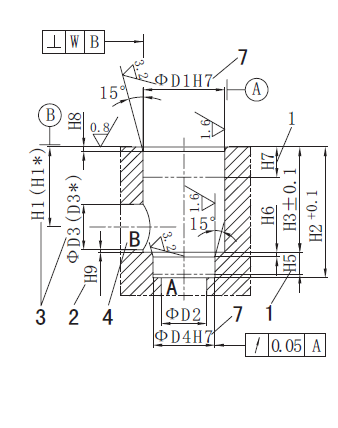

Index	Selector	Nominal size	ΦD1	ΦD2	ΦD3	ΦD4	ΦD5	ΦD6	ΦD7	H1	H2	H3	H4	H5	H6	H7	H8	H9
1	1	16	32	16	16	25	M8	4	4	34	56	43	20	11	2	20	2	0.5
2	2	25	45	25	25	34	M12	6	6	44	72	58	25	12	2.5	30	2.5	1
3	3	32	60	32	32	45	M16	8	6	52	85	70	35	13	2.5	30	2.5	1.5
4	4	40	75	40	40	55	M20	10	6	64	105	87	45	15	3	30	3	2.5
5	5	50	90	50	50	68	M20	10	8	72	122	100	45	17	3	35	4	2.5
6	6	63	120	63	63	90	M30	12	8	95	155	130	65	20	4	40	4	3

Area ratio

Opening pressure

Spool type

Material
