10.0 x 10.0 x 17.0 mm  BGA Heat Sink (High Aspect Ratio Ext.) Custom Pin Fin

Manufacturer Advanced Thermal Solutions
Description 10.0 x 10.0 x 17.0 mm  BGA Heat Sink (High Aspect Ratio Ext.) Custom Pin Fin
Manufacturer Part Number ATS010010017-PF-1P
Lifecycle Status ACTIVE

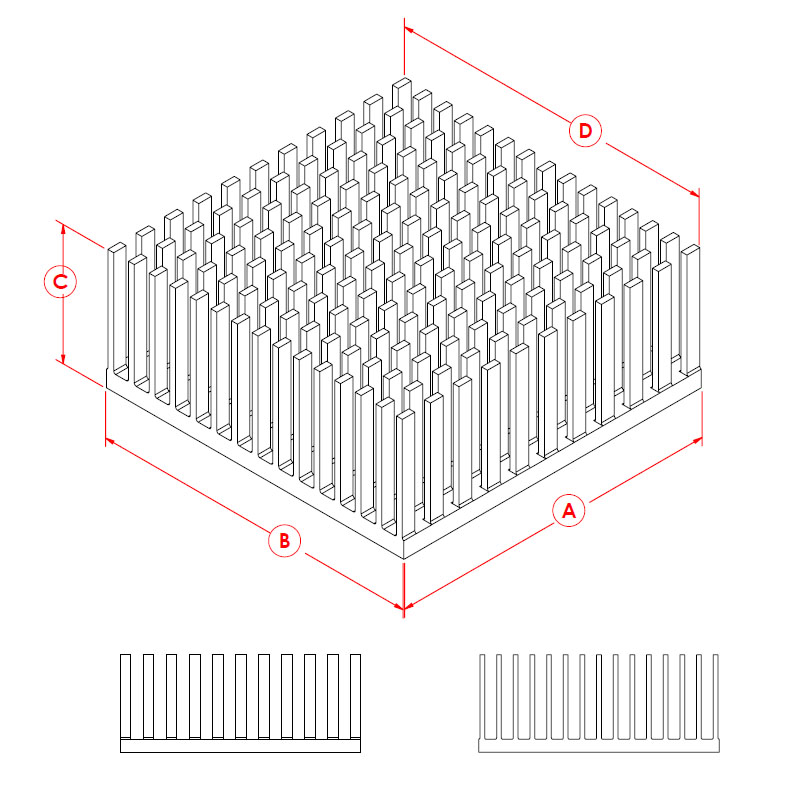

Length (mm) 10.0
Width (mm) 10.0
Height (mm) 17.0
Fin Tip to Fin Tip (mm) 10.0
TIM N/A
FINISH BLACK-ANODIZED
Thermal Resistance (R,°C/W Unducted Flow) at 200 ft/min. (1,0 m/s) 20.2
Thermal Resistance (R,°C/W Unducted Flow) at 300 ft/min. (1,5 m/s) 16.8
Thermal Resistance (R,°C/W Unducted Flow) at 400 ft/min. (2,0 m/s) 14.7
Thermal Resistance (R,°C/W Unducted Flow) at 500 ft/min. (2,5 m/s) 13.4
Thermal Resistance (R,°C/W Unducted Flow) at 600 ft/min. (3,0 m/s) 12.3
Thermal Resistance (R,°C/W Unducted Flow) at 700 ft/min. (3,5 m/s) 11.5
Thermal Resistance (R,°C/W Unducted Flow) at 800 ft/min. (4,0 m/s) 10.9
Thermal Resistance (R,°C/W Ducted Flow) at 200 ft/min. (1,0 m/s) 15.2
Thermal Resistance (R,°C/W Ducted Flow) at 300 ft/min. (1,5 m/s) 12.9
Thermal Resistance (R,°C/W Ducted Flow) at 400 ft/min. (2,0 m/s) 11.5
Thermal Resistance (R,°C/W Ducted Flow) at 500 ft/min. (2,5 m/s) 10.5
Thermal Resistance (R,°C/W Ducted Flow) at 600 ft/min. (3,0 m/s) 9.8
Thermal Resistance (R,°C/W Ducted Flow) at 700 ft/min. (3,5 m/s) 9.2
Thermal Resistance (R,°C/W Ducted Flow) at 800 ft/min. (4,0 m/s) 8.7
CAD models
Request for quotation
Please make sure this software has been installed.

Product selection

Manufacturer Part NumberLifecycle StatusLength (mm)Width (mm)Height (mm)Fin Tip to Fin Tip (mm)TIMFINISHThermal Resistance (R,°C/W Unducted Flow) at 200 ft/min. (1,0 m/s)Thermal Resistance (R,°C/W Unducted Flow) at 300 ft/min. (1,5 m/s)Thermal Resistance (R,°C/W Unducted Flow) at 400 ft/min. (2,0 m/s)Thermal Resistance (R,°C/W Unducted Flow) at 500 ft/min. (2,5 m/s)Thermal Resistance (R,°C/W Unducted Flow) at 600 ft/min. (3,0 m/s)Thermal Resistance (R,°C/W Unducted Flow) at 700 ft/min. (3,5 m/s)Thermal Resistance (R,°C/W Unducted Flow) at 800 ft/min. (4,0 m/s)Thermal Resistance (R,°C/W Ducted Flow) at 200 ft/min. (1,0 m/s)Thermal Resistance (R,°C/W Ducted Flow) at 300 ft/min. (1,5 m/s)Thermal Resistance (R,°C/W Ducted Flow) at 400 ft/min. (2,0 m/s)Thermal Resistance (R,°C/W Ducted Flow) at 500 ft/min. (2,5 m/s)Thermal Resistance (R,°C/W Ducted Flow) at 600 ft/min. (3,0 m/s)Thermal Resistance (R,°C/W Ducted Flow) at 700 ft/min. (3,5 m/s)Thermal Resistance (R,°C/W Ducted Flow) at 800 ft/min. (4,0 m/s)
ATS010010017-PF-1PACTIVE10.010.017.010.0N/ABLACK-ANODIZED20.216.814.713.412.311.510.915.212.911.510.59.89.28.7

Documentation

Data Sheet

Contact the supplier

Advanced Thermal Solutions

Advanced Thermal Solutions

Advanced Thermal Solutions, Inc. (ATS) has been in business for more than 25 years as a leading-edge engineering and manufacturing company focused on the thermal management of electronics.
