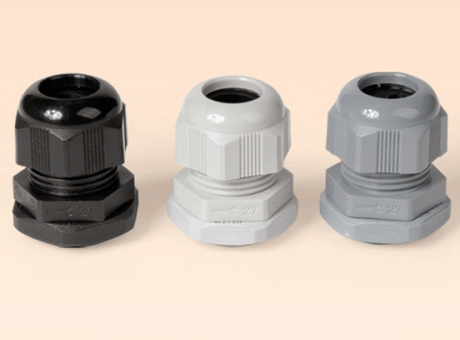

Plastic cable gland PA

CAD models

Product selection

Reference	AG Thread	Color	Pieces in bag	H (mm)	GL (mm)	Wrench size (mm)	Cable Dia (mm)
OMRG 01	M12x1,5	Gray code RAL 7001	10	24	8	15	3-6,5
OMRG 02	M16x1,5	Gray code RAL 7001	10	28	8	19	4-8
OMRG 03	M16x1,5	Gray code RAL 7001	10	29	10	22	5-10
OMRG 04	M20x1,5	Gray code RAL 7001	10	29	10	24	6-12
OMRG 05	M20x1,5	Gray code RAL 7001	10	33	10	27	10-14
OMRG 06	M25x1,5	Gray code RAL 7001	10	38	10	33	13-18
OMRG 07	M32x1,5	Gray code RAL 7001	5	41	10	42	18-25
OMRG 08	M40x1,5	Gray code RAL 7001	5	51	10	53	22-32
OMRG 09	M50x1,5	Gray code RAL 7001	3	53	18	60	30-38
OMRG 10	M63x1,5	Gray code RAL 7001	2	55	18	65	34-44
