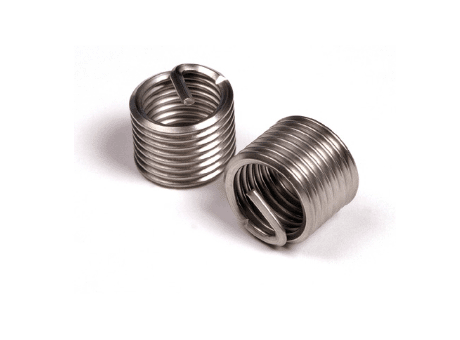

Thread inserts AMECOIL® - BSW pitch - Standard Inconel x750, uncoated

Manufacturer	AMECA
Description	Thread inserts AMECOIL® - BSW pitch - Standard Inconel x750, uncoated, range SR, 5/16 - 18, nominal length 1,5 d
Part number	6735160469SR

CAD models

Request for quotation

Product selection

Index	Selector	Article number	Nominal diameter d	Pitch (mm)	Bit Ø (mm)	Drilling Ø min. (mm)	Drilling Ø max. (mm)	Taper min ext. Ø (mm)	A - Thread fitted (mm)	B - Nominal length (x d)	B - Nominal length (mm)	C - Min drilling depth (mm)	D ext ø when free min. (mm)	D ext ø when free max. (mm)	N - Number of turns when free ± 1/4	Range
1	1	6730180125	1/8 - 40	0.635	3.4	3.28	3.43	3.93	2.5	1 d	3.2	6	4	4.4	3.4	classic
2	2	6733160187	3/16 - 24	1.058	5.1	4.98	5.13	6.01	3.7	1 d	4.8	9.5	6.1	6.5	2.9	classic
3	3	6730140250	1/4 - 20	1.27	6.7	6.63	6.78	7.84	5.1	1 d	6.4	12.1	7.9	8.4	3.4	classic
4	4	6735160312	5/16 - 18	1.411	8.4	8.33	8.48	9.59	6.5	1 d	7.9	14.3	9.7	10.2	4.1	classic
5	5	6730380375	3/8 - 16	1.588	10	9.91	10.11	11.39	7.9	1 d	9.5	16.7	11.5	12	4.5	classic
6	6	6737160437	7/16 - 14	1.814	11.6	11.51	11.76	13.24	9.3	1 d	11.1	19.3	13.5	14	4.6	classic
7	7	6730120500	1/2 - 12	2.117	13.2	13.08	13.34	15.17	10.6	1 d	12.7	22.2	15.4	16	4.4	classic
8	8	6739160562	9/16 - 12	2.117	14.8	14.68	14.94	16.76	12.2	1 d	14.3	23.8	17	17.6	5.2	classic
9	9	6730580625	5/8 - 11	2.309	16.7	16.59	16.84	18.57	13.6	1 d	15.9	26.3	18.9	19.5	5.4	classic
10	10	6731160687	11/16 - 11	2.309	18.3	18.21	18.47	20.16	15.2	1 d	17.5	27.9	20.5	21.1	6.1	classic
11	11	6730340750	3/4 - 10	2.54	20	19.84	20.09	22.02	16.5	1 d	19.1	30.5	22.4	23	6	classic
12	12	6730780875	7/8 - 9	2.822	23	23.01	23.27	25.52	19.4	1 d	22.2	34.9	26	26.7	6.4	classic
13	13	6731001000	1" - 8	3.175	26.5	26.19	26.52	29.1	22.2	1 d	25.4	39.7	27.7	30.4	6.5	classic
14	14	6731181125	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	24.9	1 d	28.6	44.9	33.5	34.4	6.4	classic
15	15	6731141250	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	28.1	1 d	31.8	48.1	36.7	37.7	7.3	classic
16	16	6731121500	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	33.9	1 d	38.1	57.2	43.9	45.1	7.4	classic
17	17	6730180187	1/8 - 40	0.635	3.4	3.28	3.43	3.93	4.1	1,5 d	4.8	7.6	4	4.4	5.6	classic
18	18	6733160281	3/16 - 24	1.058	5.1	4.98	5.13	6.01	6.1	1,5 d	7.1	11.9	6.1	6.5	5.1	classic
19	19	6730140375	1/4 - 20	1.27	6.7	6.63	6.78	7.84	8.2	1,5 d	9.5	15.2	7.9	8.4	5.9	classic
20	20	6735160469	5/16 - 18	1.411	8.4	8.33	8.48	9.59	10.5	1,5 d	11.9	18.3	9.7	10.2	6.7	classic
21	21	6730380562	3/8 - 16	1.588	10	9.91	10.11	11.39	12.7	1,5 d	14.3	21.4	11.5	12	7.3	classic
22	22	6737160656	7/16 - 14	1.814	11.6	11.51	11.76	13.24	14.9	1,5 d	16.7	24.8	13.5	14	7.5	classic
23	23	6730120750	1/2 - 12	2.117	13.2	13.08	13.34	15.17	17	1,5 d	19.1	28.6	15.4	16	7.3	classic
24	24	6739160844	9/16 - 12	2.117	14.8	14.68	14.94	16.76	19.3	1,5 d	21.5	31	17	17.6	8.4	classic
25	25	6730580937	5/8 - 11	2.309	16.7	16.59	16.84	18.57	21.5	1,5 d	23.8	34.2	18.9	19.5	8.7	classic
26	26	6731161031	11/16 - 11	2.309	18.3	18.21	18.47	20.16	23.9	1,5 d	26.2	36.6	20.5	21.1	9.7	classic
27	27	6730341125	3/4 - 10	2.54	20	19.84	20.09	22.02	26	1,5 d	28.6	40	22.4	23	9.6	classic
28	28	6730781312	7/8 - 9	2.822	23	23.01	23.27	25.52	30.5	1,5 d	33.3	46	26	26.7	10.1	classic
29	29	6731001500	1" - 8	3.175	26.5	26.19	26.52	29.1	34.9	1,5 d	38.1	52.4	27.7	30.4	10.3	classic
30	30	6731181687	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	39.2	1,5 d	42.9	59.2	33.5	34.4	10.1	classic
31	31	6731141875	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	44	1,5 d	47.6	64	36.7	37.7	11.4	classic
32	32	6731122250	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	52.9	1,5 d	57.2	76.2	43.9	45.1	11.8	classic
33	33	6730180250	1/8 - 40	0.635	3.4	3.28	3.43	3.93	5.7	2 d	6.3	9.2	4	4.4	7.9	classic
34	34	6733160375	3/16 - 24	1.058	5.1	4.98	5.13	6.01	8.5	2 d	9.5	14.3	6.1	6.5	7.1	classic
35	35	6730140500	1/4 - 20	1.27	6.7	6.63	6.78	7.84	11.4	2 d	12.7	18.4	7.9	8.4	8.1	classic
36	36	6735160625	5/16 - 18	1.411	8.4	8.33	8.48	9.59	14.5	2 d	15.9	22.2	9.7	10.2	9.4	classic
37	37	6730380750	3/8 - 16	1.588	10	9.91	10.11	11.39	17.5	2 d	19.1	26.2	11.5	12	10.2	classic
38	38	6737160875	7/16 - 14	1.814	11.6	11.51	11.76	13.24	20.4	2 d	22.2	30.4	13.5	14	10.4	classic
39	39	6730121000	1/2 - 12	2.117	13.2	13.08	13.34	15.17	23.3	2 d	25.4	34.9	15.4	16	10.1	classic
40	40	6739161125	9/16 - 12	2.117	14.8	14.68	14.94	16.76	26.5	2 d	28.6	38.1	17	17.6	11.6	classic
41	41	6730581250	5/8 - 11	2.309	16.7	16.59	16.84	18.57	29.4	2 d	31.8	42.1	18.9	19.5	11.9	classic
42	42	6731161375	11/16 - 11	2.309	18.3	18.21	18.47	20.16	32.6	2 d	34.9	45.3	20.5	21.1	13.3	classic
43	43	6730341500	3/4 - 10	2.54	20	19.84	20.09	22.02	35.5	2 d	38.1	49.5	22.4	23	13.2	classic
44	44	6730781750	7/8 - 9	2.822	23	23.01	23.27	25.52	41.6	2 d	44.5	57.2	26	26.7	13.9	classic
45	45	6731002000	1" - 8	3.175	26.5	26.19	26.52	29.1	47.6	2 d	50.8	65.1	27.7	30.4	14.1	classic
46	46	6731182250	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	53.5	2 d	57.2	73.5	33.5	34.4	13.9	classic
47	47	6731142500	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	59.9	2 d	63.5	79.8	36.7	37.7	15.6	classic
48	48	6731123000	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	72	2 d	76.2	95.3	43.9	45.1	16.1	classic
49	49	6730180312	1/8 - 40	0.635	3.4	3.28	3.43	3.93	7.3	2,5 d	7.9	10.8	4	4.4	10.3	classic
50	50	6733160468	3/16 - 24	1.058	5.1	4.98	5.13	6.01	10.9	2,5 d	11.9	16.7	6.1	6.5	9.3	classic
51	51	6730140625	1/4 - 20	1.27	6.7	6.63	6.78	7.84	14.6	2,5 d	15.9	21.6	7.9	8.4	10.5	classic
52	52	6735160781	5/16 - 18	1.411	8.4	8.33	8.48	9.59	18.4	2,5 d	19.8	26.2	9.7	10.2	12	classic
53	53	6730380937	3/8 - 16	1.588	10	9.91	10.11	11.39	22.2	2,5 d	23.8	31	11.5	12	13	classic
54	54	6737161093	7/16 - 14	1.814	11.6	11.51	11.76	13.24	26	2,5 d	27.8	35.9	13.5	14	13.3	classic
55	55	6730121250	1/2 - 12	2.117	13.2	13.08	13.34	15.17	29.7	2,5 d	31.8	41.3	15.4	16	13	classic
56	56	6739161406	9/16 - 12	2.117	14.8	14.68	14.94	16.76	33.6	2,5 d	35.7	45.2	17	17.6	14.8	classic
57	57	6730581562	5/8 - 11	2.309	16.7	16.59	16.84	18.57	37.4	2,5 d	39.7	50.1	18.9	19.5	15.3	classic
58	58	6731161718	11/16 - 11	2.309	18.3	18.21	18.47	20.16	41.3	2,5 d	43.6	54	20.5	21.1	16.9	classic
59	59	6730341875	3/4 - 10	2.54	20	19.84	20.09	22.02	45.1	2,5 d	47.6	59	22.4	23	16.8	classic
60	60	6730782187	7/8 - 9	2.822	23	23.01	23.27	25.52	52.7	2,5 d	55.5	68.3	26	26.7	17.7	classic
61	61	6731002500	1" - 8	3.175	26.5	26.19	26.52	29.1	60.3	2,5 d	63.5	77.8	27.7	30.4	17.9	classic
62	62	6731182812	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	67.8	2,5 d	71.4	87.8	33.5	34.4	17.6	classic
63	63	6731143125	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	75.8	2,5 d	79.4	95.7	36.7	37.7	19.8	classic
64	64	6731123750	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	91	2,5 d	95.2	114.3	43.9	45.1	20.4	classic
65	65	6730180375	1/8 - 40	0.635	3.4	3.28	3.43	3.93	8.9	3,0 d	9.5	12.4	4	4.4	12.4	classic
66	66	6733160562	3/16 - 24	1.058	5.1	4.98	5.13	6.01	13.2	3,0 d	14.3	19.1	6.1	6.5	11.5	classic
67	67	6730140750	1/4 - 20	1.27	6.7	6.63	6.78	7.84	17.8	3,0 d	19.1	24.8	7.9	8.4	12.8	classic
68	68	6735160937	5/16 - 18	1.411	8.4	8.33	8.48	9.59	22.4	3,0 d	23.8	30.1	9.7	10.2	14.8	classic
69	69	6730381125	3/8 - 16	1.588	10	9.91	10.11	11.39	27	3,0 d	28.6	35.7	11.5	12	15.8	classic
70	70	6737161312	7/16 - 14	1.814	11.6	11.51	11.76	13.24	31.5	3,0 d	33.3	41.5	13.5	14	16.3	classic
71	71	6730121500	1/2 - 12	2.117	13.2	13.08	13.34	15.17	36	3,0 d	38.1	47.6	15.4	16	16	classic
72	72	6739161687	9/16 - 12	2.117	14.8	14.68	14.94	16.76	40.8	3,0 d	42.9	52.4	17	17.6	17.9	classic
73	73	6730581875	5/8 - 11	2.309	16.7	16.59	16.84	18.57	45.3	3,0 d	47.6	58	18.9	19.5	18.5	classic
74	74	6731162062	11/16 - 11	2.309	18.3	18.21	18.47	20.16	50	3,0 d	52.4	62.8	20.5	21.1	20.2	classic
75	75	6730342250	3/4 - 10	2.54	20	19.84	20.09	22.02	54.6	3,0 d	57.2	68.6	22.4	23	20.4	classic
76	76	6730782625	7/8 - 9	2.822	23	23.01	23.27	25.52	63.9	3,0 d	66.7	79.4	26	26.7	21.5	classic
77	77	6731003000	1" - 8	3.175	26.5	26.19	26.52	29.1	73	3,0 d	76.2	90.5	27.7	30.4	21.7	classic
78	78	6731183375	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	56.7	3,0 d	85.7	102	33.5	34.4	21.5	classic
79	79	6731143750	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	91.6	3,0 d	95.2	111.6	36.7	37.7	24	classic
80	80	6731124500	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	100	3,0 d	114.3	133.3	43.9	45.1	24.7	classic
81	81	6730180125SR	1/8 - 40	0.635	3.4	3.28	3.43	3.93	2.5	1 d	3.2	6	4	4.4	3.4	SR
82	82	6733160187SR	3/16 - 24	1.058	5.1	4.98	5.13	6.01	3.7	1 d	4.8	9.5	6.1	6.5	2.9	SR
83	83	6730140250SR	1/4 - 20	1.27	6.7	6.63	6.78	7.84	5.1	1 d	6.4	12.1	7.9	8.4	3.4	SR
84	84	6735160312SR	5/16 - 18	1.411	8.4	8.33	8.48	9.59	6.5	1 d	7.9	14.3	9.7	10.2	4.1	SR
85	85	6730380375SR	3/8 - 16	1.588	10	9.91	10.11	11.39	7.9	1 d	9.5	16.7	11.5	12	4.5	SR
86	86	6737160437SR	7/16 - 14	1.814	11.6	11.51	11.76	13.24	9.3	1 d	11.1	19.3	13.5	14	4.6	SR
87	87	6730120500SR	1/2 - 12	2.117	13.2	13.08	13.34	15.17	10.6	1 d	12.7	22.2	15.4	16	4.4	SR
88	88	6739160562SR	9/16 - 12	2.117	14.8	14.68	14.94	16.76	12.2	1 d	14.3	23.8	17	17.6	5.2	SR
89	89	6730580625SR	5/8 - 11	2.309	16.7	16.59	16.84	18.57	13.6	1 d	15.9	26.3	18.9	19.5	5.4	SR
90	90	6731160687SR	11/16 - 11	2.309	18.3	18.21	18.47	20.16	15.2	1 d	17.5	27.9	20.5	21.1	6.1	SR
91	91	6730340750SR	3/4 - 10	2.54	20	19.84	20.09	22.02	16.5	1 d	19.1	30.5	22.4	23	6	SR
92	92	6730780875SR	7/8 - 9	2.822	23	23.01	23.27	25.52	19.4	1 d	22.2	34.9	26	26.7	6.4	SR
93	93	6731001000SR	1" - 8	3.175	26.5	26.19	26.52	29.1	22.2	1 d	25.4	39.7	27.7	30.4	6.5	SR
94	94	6731181125SR	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	24.9	1 d	28.6	44.9	33.5	34.4	6.4	SR
95	95	6731141250SR	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	28.1	1 d	31.8	48.1	36.7	37.7	7.3	SR
96	96	6731121500SR	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	33.9	1 d	38.1	57.2	43.9	45.1	7.4	SR
97	97	6730180187SR	1/8 - 40	0.635	3.4	3.28	3.43	3.93	4.1	1,5 d	4.8	7.6	4	4.4	5.6	SR
98	98	6733160281SR	3/16 - 24	1.058	5.1	4.98	5.13	6.01	6.1	1,5 d	7.1	11.9	6.1	6.5	5.1	SR
99	99	6730140375SR	1/4 - 20	1.27	6.7	6.63	6.78	7.84	8.2	1,5 d	9.5	15.2	7.9	8.4	5.9	SR
100	100	6735160469SR	5/16 - 18	1.411	8.4	8.33	8.48	9.59	10.5	1,5 d	11.9	18.3	9.7	10.2	6.7	SR
101	101	6730380562SR	3/8 - 16	1.588	10	9.91	10.11	11.39	12.7	1,5 d	14.3	21.4	11.5	12	7.3	SR
102	102	6737160656SR	7/16 - 14	1.814	11.6	11.51	11.76	13.24	14.9	1,5 d	16.7	24.8	13.5	14	7.5	SR
103	103	6730120750SR	1/2 - 12	2.117	13.2	13.08	13.34	15.17	17	1,5 d	19.1	28.6	15.4	16	7.3	SR
104	104	6739160844SR	9/16 - 12	2.117	14.8	14.68	14.94	16.76	19.3	1,5 d	21.5	31	17	17.6	8.4	SR
105	105	6730580937SR	5/8 - 11	2.309	16.7	16.59	16.84	18.57	21.5	1,5 d	23.8	34.2	18.9	19.5	8.7	SR
106	106	6731161031SR	11/16 - 11	2.309	18.3	18.21	18.47	20.16	23.9	1,5 d	26.2	36.6	20.5	21.1	9.7	SR
107	107	6730341125SR	3/4 - 10	2.54	20	19.84	20.09	22.02	26	1,5 d	28.6	40	22.4	23	9.6	SR
108	108	6730781312SR	7/8 - 9	2.822	23	23.01	23.27	25.52	30.5	1,5 d	33.3	46	26	26.7	10.1	SR
109	109	6731001500SR	1" - 8	3.175	26.5	26.19	26.52	29.1	34.9	1,5 d	38.1	52.4	27.7	30.4	10.3	SR
110	110	6731181687SR	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	39.2	1,5 d	42.9	59.2	33.5	34.4	10.1	SR
111	111	6731141875SR	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	44	1,5 d	47.6	64	36.7	37.7	11.4	SR
112	112	6731122250SR	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	52.9	1,5 d	57.2	76.2	43.9	45.1	11.8	SR
113	113	6730180250SR	1/8 - 40	0.635	3.4	3.28	3.43	3.93	5.7	2 d	6.3	9.2	4	4.4	7.9	SR
114	114	6733160375SR	3/16 - 24	1.058	5.1	4.98	5.13	6.01	8.5	2 d	9.5	14.3	6.1	6.5	7.1	SR
115	115	6730140500SR	1/4 - 20	1.27	6.7	6.63	6.78	7.84	11.4	2 d	12.7	18.4	7.9	8.4	8.1	SR
116	116	6735160625SR	5/16 - 18	1.411	8.4	8.33	8.48	9.59	14.5	2 d	15.9	22.2	9.7	10.2	9.4	SR
117	117	6730380750SR	3/8 - 16	1.588	10	9.91	10.11	11.39	17.5	2 d	19.1	26.2	11.5	12	10.2	SR
118	118	6737160875SR	7/16 - 14	1.814	11.6	11.51	11.76	13.24	20.4	2 d	22.2	30.4	13.5	14	10.4	SR
119	119	6730121000SR	1/2 - 12	2.117	13.2	13.08	13.34	15.17	23.3	2 d	25.4	34.9	15.4	16	10.1	SR
120	120	6739161125SR	9/16 - 12	2.117	14.8	14.68	14.94	16.76	26.5	2 d	28.6	38.1	17	17.6	11.6	SR
121	121	6730581250SR	5/8 - 11	2.309	16.7	16.59	16.84	18.57	29.4	2 d	31.8	42.1	18.9	19.5	11.9	SR
122	122	6731161375SR	11/16 - 11	2.309	18.3	18.21	18.47	20.16	32.6	2 d	34.9	45.3	20.5	21.1	13.3	SR
123	123	6730341500SR	3/4 - 10	2.54	20	19.84	20.09	22.02	35.5	2 d	38.1	49.5	22.4	23	13.2	SR
124	124	6730781750SR	7/8 - 9	2.822	23	23.01	23.27	25.52	41.6	2 d	44.5	57.2	26	26.7	13.9	SR
125	125	6731002000SR	1" - 8	3.175	26.5	26.19	26.52	29.1	47.6	2 d	50.8	65.1	27.7	30.4	14.1	SR
126	126	6731182250SR	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	53.5	2 d	57.2	73.5	33.5	34.4	13.9	SR
127	127	6731142500SR	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	59.9	2 d	63.5	79.8	36.7	37.7	15.6	SR
128	128	6731123000SR	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	72	2 d	76.2	95.3	43.9	45.1	16.1	SR
129	129	6730180312SR	1/8 - 40	0.635	3.4	3.28	3.43	3.93	7.3	2,5 d	7.9	10.8	4	4.4	10.3	SR
130	130	6733160468SR	3/16 - 24	1.058	5.1	4.98	5.13	6.01	10.9	2,5 d	11.9	16.7	6.1	6.5	9.3	SR
131	131	6730140625SR	1/4 - 20	1.27	6.7	6.63	6.78	7.84	14.6	2,5 d	15.9	21.6	7.9	8.4	10.5	SR
132	132	6735160781SR	5/16 - 18	1.411	8.4	8.33	8.48	9.59	18.4	2,5 d	19.8	26.2	9.7	10.2	12	SR
133	133	6730380937SR	3/8 - 16	1.588	10	9.91	10.11	11.39	22.2	2,5 d	23.8	31	11.5	12	13	SR
134	134	6737161093SR	7/16 - 14	1.814	11.6	11.51	11.76	13.24	26	2,5 d	27.8	35.9	13.5	14	13.3	SR
135	135	6730121250SR	1/2 - 12	2.117	13.2	13.08	13.34	15.17	29.7	2,5 d	31.8	41.3	15.4	16	13	SR
136	136	6739161406SR	9/16 - 12	2.117	14.8	14.68	14.94	16.76	33.6	2,5 d	35.7	45.2	17	17.6	14.8	SR
137	137	6730581562SR	5/8 - 11	2.309	16.7	16.59	16.84	18.57	37.4	2,5 d	39.7	50.1	18.9	19.5	15.3	SR
138	138	6731161718SR	11/16 - 11	2.309	18.3	18.21	18.47	20.16	41.3	2,5 d	43.6	54	20.5	21.1	16.9	SR
139	139	6730341875SR	3/4 - 10	2.54	20	19.84	20.09	22.02	45.1	2,5 d	47.6	59	22.4	23	16.8	SR
140	140	6730782187SR	7/8 - 9	2.822	23	23.01	23.27	25.52	52.7	2,5 d	55.5	68.3	26	26.7	17.7	SR
141	141	6731002500SR	1" - 8	3.175	26.5	26.19	26.52	29.1	60.3	2,5 d	63.5	77.8	27.7	30.4	17.9	SR
142	142	6731182812SR	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	67.8	2,5 d	71.4	87.8	33.5	34.4	17.6	SR
143	143	6731143125SR	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	75.8	2,5 d	79.4	95.7	36.7	37.7	19.8	SR
144	144	6731123750SR	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	91	2,5 d	95.2	114.3	43.9	45.1	20.4	SR
145	145	6730180375SR	1/8 - 40	0.635	3.4	3.28	3.43	3.93	8.9	3,0 d	9.5	12.4	4	4.4	12.4	SR
146	146	6733160562SR	3/16 - 24	1.058	5.1	4.98	5.13	6.01	13.2	3,0 d	14.3	19.1	6.1	6.5	11.5	SR
147	147	6730140750SR	1/4 - 20	1.27	6.7	6.63	6.78	7.84	17.8	3,0 d	19.1	24.8	7.9	8.4	12.8	SR
148	148	6735160937SR	5/16 - 18	1.411	8.4	8.33	8.48	9.59	22.4	3,0 d	23.8	30.1	9.7	10.2	14.8	SR
149	149	6730381125SR	3/8 - 16	1.588	10	9.91	10.11	11.39	27	3,0 d	28.6	35.7	11.5	12	15.8	SR
150	150	6737161312SR	7/16 - 14	1.814	11.6	11.51	11.76	13.24	31.5	3,0 d	33.3	41.5	13.5	14	16.3	SR
151	151	6730121500SR	1/2 - 12	2.117	13.2	13.08	13.34	15.17	36	3,0 d	38.1	47.6	15.4	16	16	SR
152	152	6739161687SR	9/16 - 12	2.117	14.8	14.68	14.94	16.76	40.8	3,0 d	42.9	52.4	17	17.6	17.9	SR
153	153	6730581875SR	5/8 - 11	2.309	16.7	16.59	16.84	18.57	45.3	3,0 d	47.6	58	18.9	19.5	18.5	SR
154	154	6731162062SR	11/16 - 11	2.309	18.3	18.21	18.47	20.16	50	3,0 d	52.4	62.8	20.5	21.1	20.2	SR
155	155	6730342250SR	3/4 - 10	2.54	20	19.84	20.09	22.02	54.6	3,0 d	57.2	68.6	22.4	23	20.4	SR
156	156	6730782625SR	7/8 - 9	2.822	23	23.01	23.27	25.52	63.9	3,0 d	66.7	79.4	26	26.7	21.5	SR
157	157	6731003000SR	1" - 8	3.175	26.5	26.19	26.52	29.1	73	3,0 d	76.2	90.5	27.7	30.4	21.7	SR
158	158	6731183375SR	1" 1/8 - 7	3.629	30	29.74	30.12	32.8	56.7	3,0 d	85.7	102	33.5	34.4	21.5	SR
159	159	6731143750SR	1" 1/4 - 7	3.629	33	32.92	33.3	35.97	91.6	3,0 d	95.2	111.6	36.7	37.7	24	SR
160	160	6731124500SR	1" 1/2 - 6	4.234	39.7	39.27	39.9	43.02	100	3,0 d	114.3	133.3	43.9	45.1	24.7	SR

Documentation

General leaflet

Contact the supplier

AMECA

Universal solutions in mechanical fastening

AMECA

AMECA
ZI LE SAUVAGE - MOGNARD
BP 21
73410 ALBENS
France
www.ameca-sa.fr/
contact@ameca-sa.fr
