Manufacturer	ARV
Description	Single acting ball lock pin 19113B, Nominal Ø 14 mm, Grip length 15 mm
Part number	19113 C 14 B 15
Material	Tempered stainless

	Nominal diameter (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	R (mm)	J (mm)	K (mm)	L (mm)	M (mm)	N (mm)	O (mm)	P (mm)
1	1	5	4.94	5.59	6.55	6.5	11	20	22.3	14	2.6	3	19	3	1.6	10	0.5	1.8
2	2	6	5.94	6.92	7.45	6.5	11	20	22.3	14	3.1	3	19	3	2	10	0.5	1.8
3	3	7	6.94	8.32	7.95	6.5	11	20	22.3	14	3.6	3	19	3	2.5	10	0.5	1.8
4	4	8	7.94	9.37	8.35	6.5	11	20	22.3	14	3.5	3	19	3	3	10	0.5	1.8
5	5	9	8.94	11.12	9.3	7.65	14	25	25	15	4.4	3	26	3	3.5	12	1	2
6	6	10	9.94	11.73	9.3	7.65	14	25	25	15	4.4	3	26	3	3.8	12	1	2
7	7	11	10.94	12.85	8.85	7.65	14	25	25	15	4.4	3	26	3	4.36	12	1	2
8	8	12	11.94	13.42	11.2	11.05	18	34	29.3	19	6.7	3	26	5	4	18	1	2
9	9	13	12.94	15.04	11.8	11.05	18	34	29.3	19	6.7	3	26	5	4.36	18	1	2
10	10	14	13.94	16.82	12.8	11.05	18	34	29.3	19	7.7	3	26	5	4.76	18	1	2
11	12	15	14.94	18.4	14.6	11.5	22	40	33.1	23	7.7	3	26	5	5.55	22	1.5	2
12	13	16	15.94	18.9	14.6	11.5	22	40	33.1	23	8.2	3	36	5	5.55	22	1.5	3
13	14	18	17.94	20.8	15.05	11.5	22	40	33.1	23	8.2	3	36	5	6.5	22	1.5	3
14	15	19	18.94	22.48	17	15	24	47	37.8	28	9.3	3	36	5	6.74	24	1.5	3
15	16	20	19.94	24.08	17.4	15	24	47	37.8	28	9.3	3	36	5	7.54	24	1.5	3
16	17	22	21.94	26.46	19	17.8	30	55	42.5	31.5	9.3	3	36	5	8.73	26	1.5	3
17	18	24	23.94	27.91	21.5	19.1	31	55	48.6	36.5	10.6	4	36	5	8.83	31	1.5	3
18	19	25	24.94	30.49	22.2	19.1	31	55	48.6	36.5	10.6	4	36	5	10.12	31	1.5	3

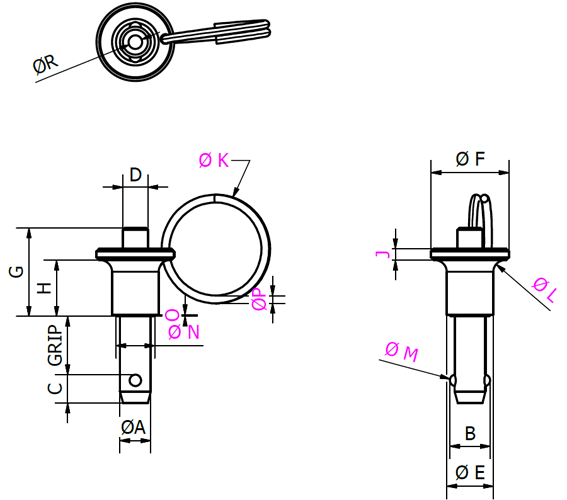

Single acting quick release pin 19113B (mm)
