HP- worm gear unit a=100 with clamp connection with motor flange

Quantity	Manufacturer	Description	Part number
1	Atlanta	HP- worm gear unit a=100 with clamp connection with motor flange	atlanta_5816005_6559501
1	Atlanta	motor flange cd=100	6559501
1	Atlanta	HP- worm gear unit a=100 with clamp connection without motor flange	5816005

CAD models

Product selection

Part Number

Description

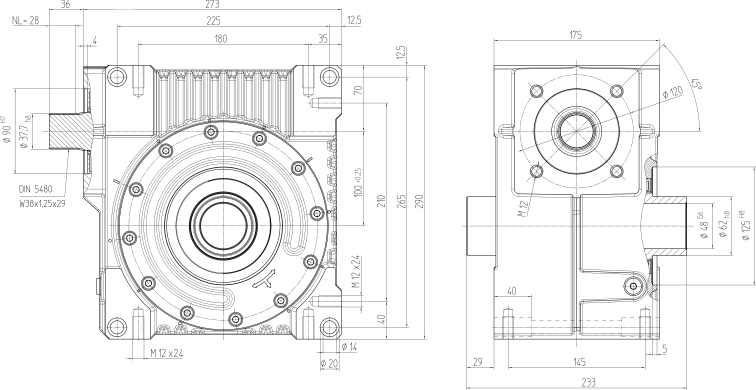

worm gear unit

connection

clamp connection

centere distance a0 (mm)

100

ratio

4.75

Weight (kg)

Jred 10-4 (kg m2)

22.932

Part Number

Description

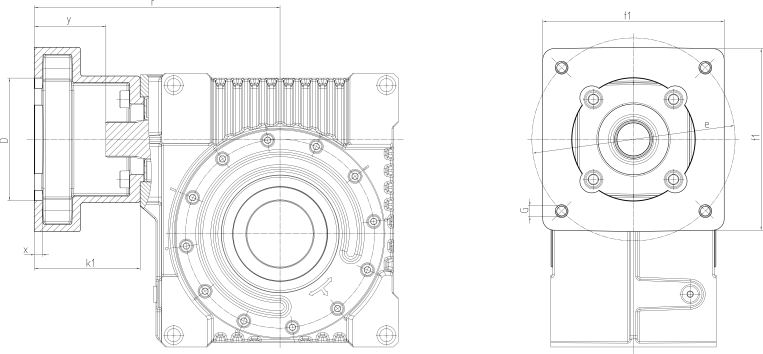

motor flange

centere distance a0 (mm)

100

D^G7

110

230

140

165

M10

Weight (kg)
