UP. 60ST. SF7 - [STD] ball valve, PVC-U body, Female solvent socket, Ball seat in HDPE, O-Rings in FPM, Green dot

Manufacturer	CEPEX
Description	[STD] ball valve, PVC-U body, Female solvent socket, Ball seat in HDPE, O-Rings in FPM, Green dot, UP. 60ST. SF7 - D: 110, Code: 60 61 111 VI
Part number	57733
Part number1	60 61 111 VI
Material	PVC
Diameter	110 mm

Outer diameter	228 mm
Length	359 mm
Nominal flow	100 mm
Nominal pressure	10 bar
Omniclass number	23.27.33.13

CAD models

Request for quotation

Product selection

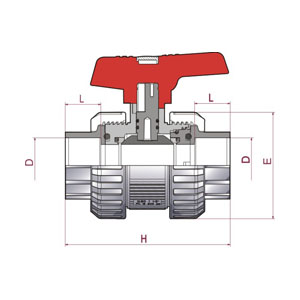

Index	Selector	D (mm)	CODE	REF.	DN (mm)	PN (bar)	L (mm)	H (mm)	E (mm)
1	1	16	60 61 016 VI	57725	10	16	13	87	50
2	2	20	60 61 020 VI	57724	15	16	16	87	50
3	3	25	60 61 025 VI	57726	20	16	19	101	61
4	4	32	60 61 032 VI	57727	25	16	22	122	70
5	5	40	60 61 040 VI	57728	32	16	26	135	81
6	6	50	60 61 050 VI	57729	40	16	31	149	96
7	7	63	60 61 063 VI	57730	50	16	38	174	118
8	8	75	60 61 075 VI	57731	65	10	44	216	146
9	9	90	60 61 090 VI	57732	80	10	51	256	176
10	11	110	60 61 111 VI	57733	100	10	63	359	228
