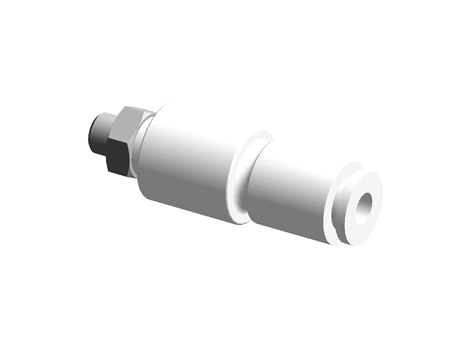

Male connector C-KSH Series

Manufacturer	CKT Pneumatic Co.,Ltd
Description	Male connector C-KSH08-03S
Part number	C-KSH08-03S

CAD models

Request for quotation

Product selection

Index	Selector	Type	Applicable tubing O.D.	Connection thread	H	D1	D2	L	M	A	Weight
1	1	C-KSH04-M5	4	M5x0.8	8	10.4	12	36.5	16	33	9
2	2	C-KSH04-M6	4	M6x1.0	8	10.4	12	37	16	33	9
3	3	C-KSH04-01S	4	1/8"	12	10.4	12	38	16	34	14
4	4	C-KSH06-M5	6	M5x0.8	8	12.8	14	37.5	17	33.5	12
5	5	C-KSH06-M6	6	M6x1.0	8	12.8	14	38	17	34	12
6	6	C-KSH06-01S	6	1/8"	14	12.8	14	39.5	17	35.5	17
7	7	C-KSH06-02S	6	1/4"	14	12.8	14	42.5	17	36.5	23
8	8	C-KSH08-01S	8	1/8"	17	15.2	17	44	18.5	40	23
9	9	C-KSH08-02S	8	1/4"	17	15.2	17	47	18.5	41	29
10	10	C-KSH08-03S	8	3/8"	17	15.2	17	48	18.5	41.5	37
11	11	C-KSH10-02S	10	1/4"	22	18.5	22	54	21	48	55
12	12	C-KSH10-03S	10	3/8"	22	18.5	22	55	21	48.5	63
13	13	C-KSH10-04S	10	1/2"	22	18.5	22	57.5	21	49.5	81
14	14	C-KSH12-03S	12	3/8"	24	20.9	24	57	22	50.5	75
15	15	C-KSH12-04S	12	1/2"	24	20.9	24	60	22	52	92

Documentation

Technical document

Contact the supplier

CKT Pneumatic Co.,Ltd

CKT is a professional pneumatic manufacturer. "Quality First ,Client Utmost"is our philosophy. We adopt advanced manufacturing technique and scientific management method, our experienced and professional technicians is delicated to supplying you with innovative products, we welcome all customized requiement.
