Winflex T - Type BSATLF - Joint cover model - 1 short hub, 1 long hub flange side

Manufacturer	CMD COUPLINGS
Description	Winflex Coupling T, type BSATLF, size 0, bore 1 : Ø6 mm for mounting with keyway, as per ISO R773 or DIN 6883.1, bore 2 : Ø6 mm for mounting with keyway, as per ISO R773 or DIN 6883.1
Part number	BSAT 0 LF AL1=C6 AL2=C6
Basis torque	950 N.m
Bore	6 mm
Bore 2	6 mm
Maximum rotation speed	3600 rpm
Maximum rotation speed with dynamic balancing	5000 rpm

CAD models

Request for quotation

Product selection

Information

How to select your coupling

Service Factor Application

Absorbed torque application (N.m)

Application rotation speed (rpm)

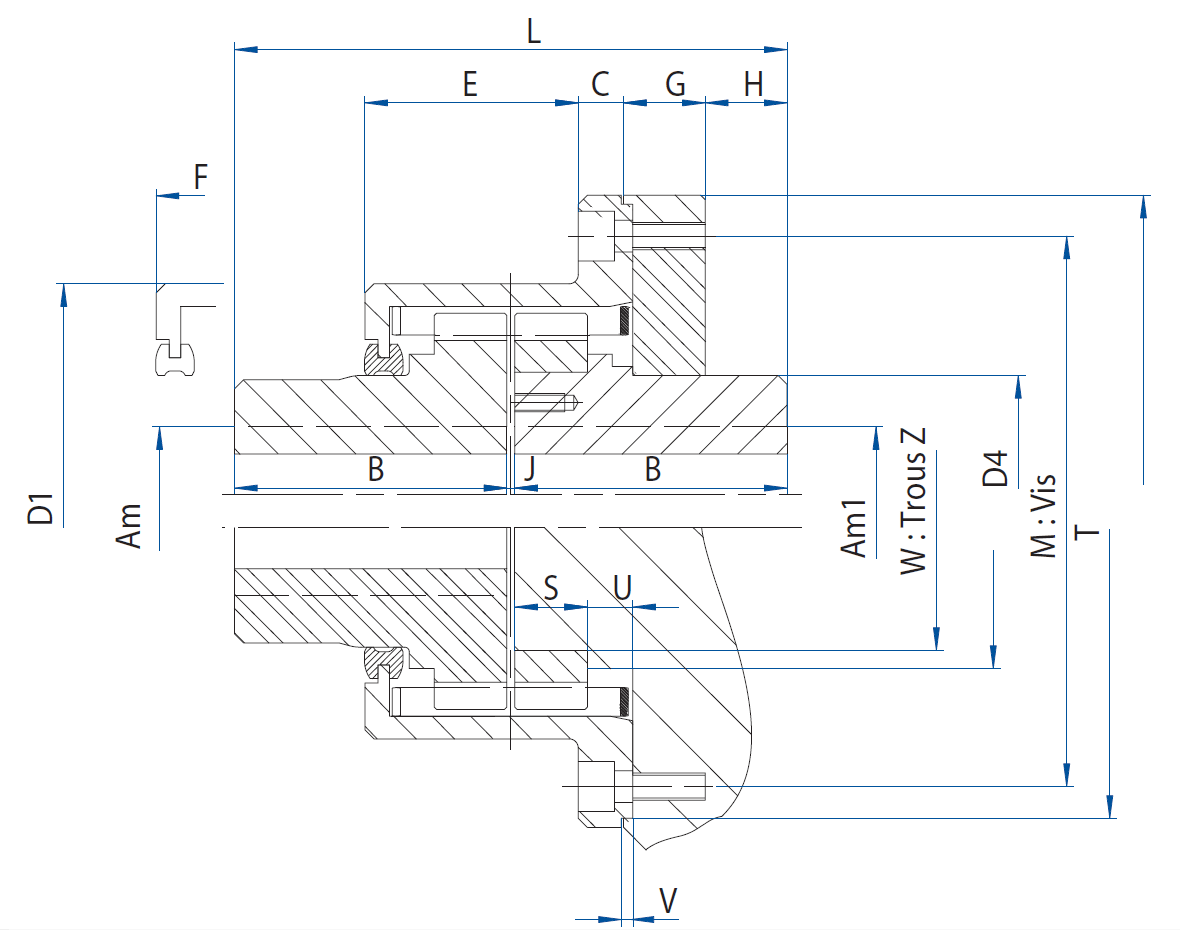

	Part number	Basis torque (N.m)	Maximum Bore 1 with keyway (mm)	Maximum Bore 2 with keyway (mm)	Maximum Bore 1 with cylindric shrink fit (mm)	Rough bore (mm)	B: T model (mm)	B: TL, TL2 model (mm)	D (mm)	J (mm)	L: TL model (mm)	Mass BSAT with rough bore (kg)	Moment of inertia J BSAT full hub T model (kg.m²)	Maximum speed (rpm)	Maximum speed with dynamic balancing (rpm)
	BSAT 0 LF	950	55	50	45	-	60	110	170	2	172	12	0.0325	3600	5000
	BSAT 1 LF	1900	80	75	60	-	80	110	205	3	193	22	0.0825	2800	5000
	BSAT 2 LF	3800	110	110	100	-	80	110	250	3	193	39	0.2125	2000	4500
	BSAT 5 LF	8500	105	100	90	30	110	170	286	3	283	56	0.4	2000	4200
	BSAT 9 LF	12500	130	120	110	30	110	195	340	3	308	85	0.825	1700	3600
	BSAT 16 LF	24000	180	180	170	60	130	195	425	3	328	157	2.45	1300	3000
	BSAT 28 LF	48000	230	230	200	75	155	225	515	4	384	290	6.75	1000	2400
	BSAT 43 LF	70000	230	230	220	85	180	260	616	4	444	411	13.5	800	1800
	BSAT 70 LF	120000	230	230	220	95	200	280	630	4	484	518	18.75	800	1800
	BSAT 95 LF	160000	270	270	250	105	230	300	700	4	534	721	31.75	700	1500

Mounting for Bore 1

Mounting for Bore 2

with keyway, as per ISO R773 or DIN 6883.1

Ø Bore 1 (mm)

Ø Bore 2 (mm)
