Winflex T - Type S - High torque model

Manufacturer	CMD COUPLINGS
Description	Winflex Coupling T, type S size 150, bore 1 : Ø120 mm for mounting with keyway, as per ISO R773 or DIN 6883.1, bore 2 : Ø120 mm for mounting with keyway, as per ISO R773 or DIN 6883.1
Part number	T 150 S AL1=C120 AL2=C120
Mass with full hubs	990 kg
Basis torque	270000 N.m

Bore	120 mm
Bore 2	120 mm
Maximum rotation speed	500 rpm
Maximum rotation speed with dynamic balancing	950 rpm

CAD models

Request for quotation

Product selection

Information

How to select your coupling

Service Factor Application

Absorbed torque application (N.m)

Application rotation speed (rpm)

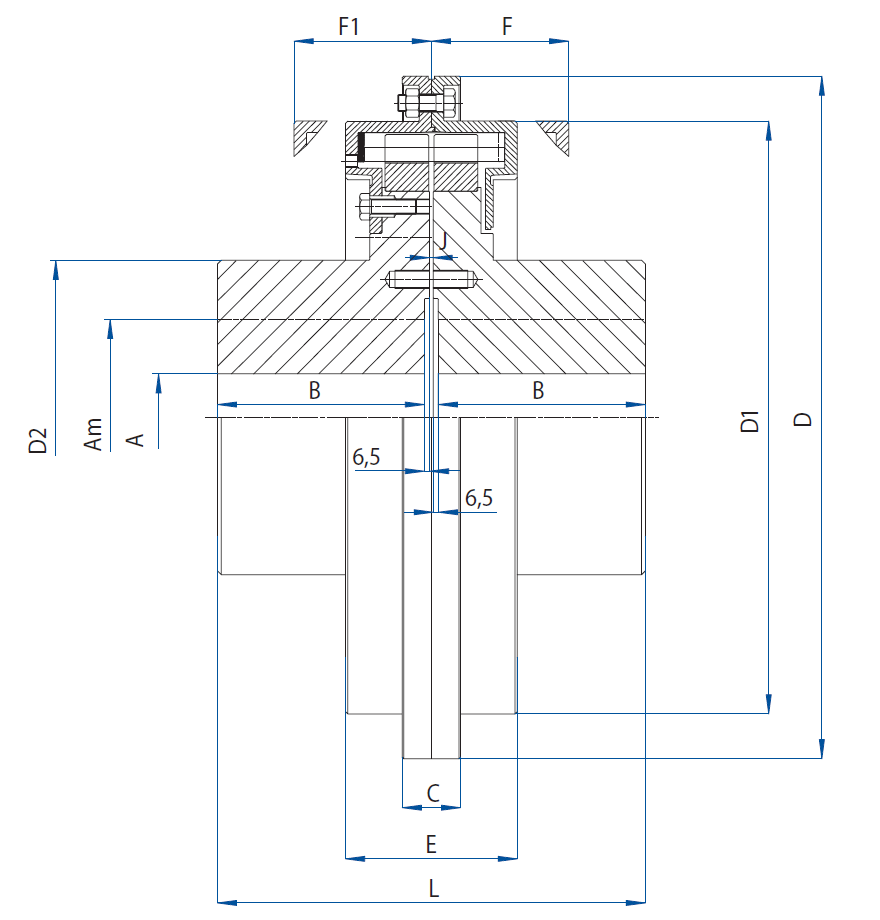

	Part number	Basis torque (N.m)	Maximum Bore with keyway (mm)	Rough bore (mm)	B (mm)	D (mm)	J (mm)	L (mm)	Mass with rough bore (kg)	Grease mass (kg)	Moment of inertia J full hubs (kg.m²)	Maximum speed (rpm)	Maximum speed with dynamic balancing (rpm)
	T 150 S	270000	270	120	270	890	4	557	990	12	64.5	500	950
	T 220 S	400000	300	165	300	1015	5	618	1260	22	110.75	400	800
	T 300 S	540000	340	180	340	1180	5	698	1860	27	206.25	370	700
	T 380 S	700000	370	180	370	1320	5	758	2390	30	340	320	600
	T 480 S	800000	390	180	400	1360	6	819	2830	45	415.75	320	600

Mounting for Bore 1

Mounting for Bore 2

Ø Bore 1 (mm)

Ø Bore 2 (mm)

Documentation

Choose your coupling

Contact the supplier
