By CMD COUPLINGS

Winflex T - Type TDF - Brake disc model

Manufacturer	CMD COUPLINGS
Description	Winflex Coupling T, type TDF, size 0, brake disc Ø 315 mm, bore 1 : Ø6 mm for mounting with keyway, as per ISO R773 or DIN 6883.1, bore 2 : Ø6 mm for mounting with keyway, as per ISO R773 or DIN 6883.1
Part number	T 0 DF 315 AL1=C6 AL2=C6
Mass with full hubs	15.2 kg
Basis torque	950 N.m
Bore	6 mm
Bore 2	6 mm
Maximum rotation speed allowed by the disc	3000 rpm

CAD models

Request for quotation

Product selection

Information

How to select your coupling

Service Factor Application

Absorbed torque application (N.m)

Application rotation speed (rpm)

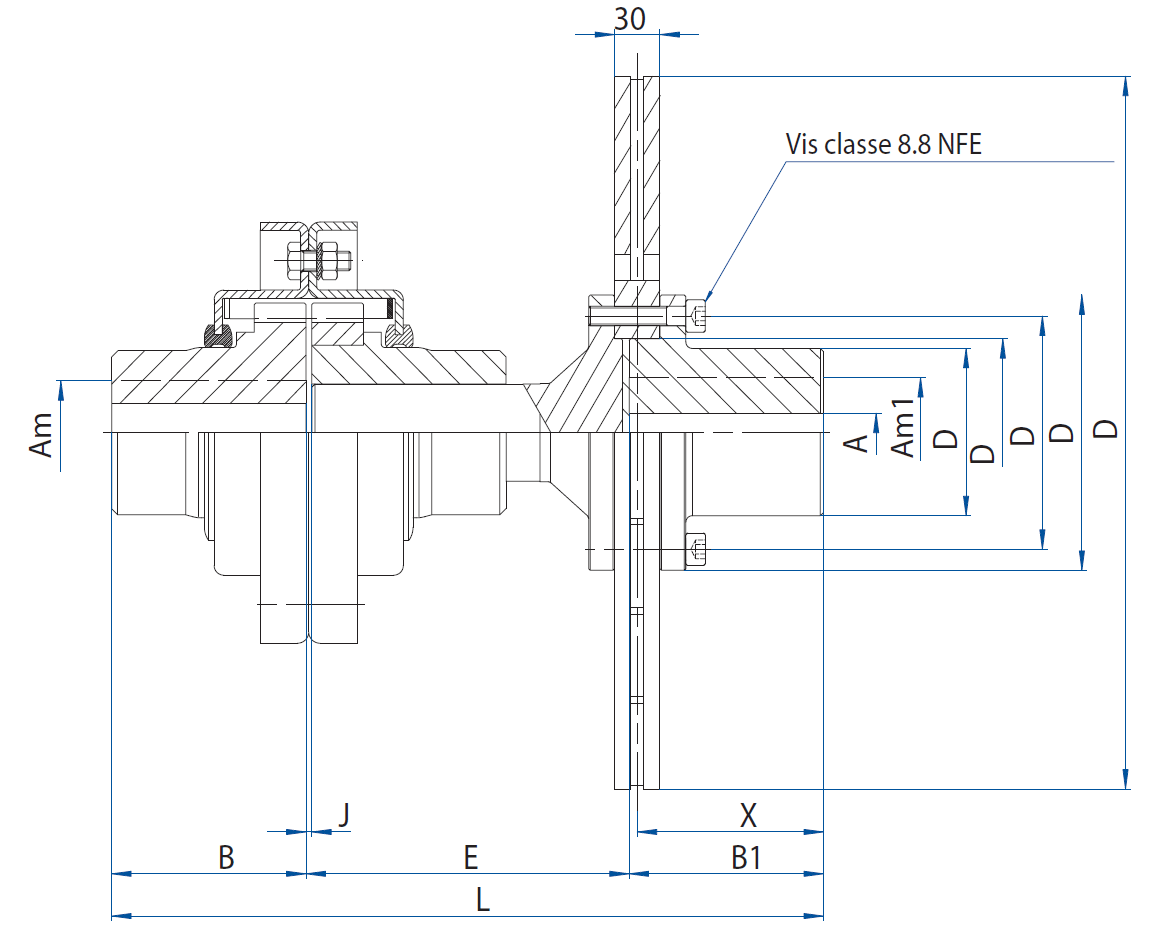

	Part number	Ø brake disc D (mm)	Basis torque (N.m)	Maximum Bore 1 with keyway (mm)	Maximum Bore 1 with cylindric shrink fit (mm)	Maximum Bore 2 with keyway (mm)	Maximum Bore 2 with cylindric shrink fit (mm)	Rough bore A (mm)	Rough bore A1 (mm)	B (mm)	B1 (mm)	J (mm)	L (mm)	X (mm)	Mass without disc (kg)	Moment of inertia J without disc with full hub (kg.m²)	Maximum speed allowed by the disc (rpm)
	T 0 DF 315	315	950	55	45	55	50	-	-	60	107	4	122	102	15.2	0.02	3000
	T 0 DF 355	355	950	55	45	70	60	-	-	60	107	4	122	102	18.2	0.03	2700
	T 0 DF 395	395	950	55	45	75	70	-	-	60	107	4	122	102	20.5	0.04	2400
	T 1 DF 395	395	1900	80	60	75	70	-	-	80	107	4	163	102	29.7	0.07	2400
	T 1 DF 445	445	1900	80	60	80	70	-	-	80	140	4	163	135	31.7	0.08	2100
	T 2 DF 445	445	3800	110	100	80	70	-	-	80	140	4	163	135	44	0.17	2100
	T 2 DF 495	495	3800	110	100	110	100	-	30	80	140	4	163	135	61.5	0.27	1900
	T 2 DF 550	550	3800	110	100	110	100	-	30	80	140	4	163	135	61.5	0.27	1800
	T 2 DF 625	625	3800	110	100	120	105	-	30	80	140	4	163	135	67.5	0.33	1500
	T 5 DF 495	495	8500	105	90	110	100	30	30	110	140	4	223	135	74	0.33	1900

Mounting for Bore 1

Mounting for Bore 2

Ø Bore 1 (mm)

Ø Bore 2 (mm)
