By CMD COUPLINGS

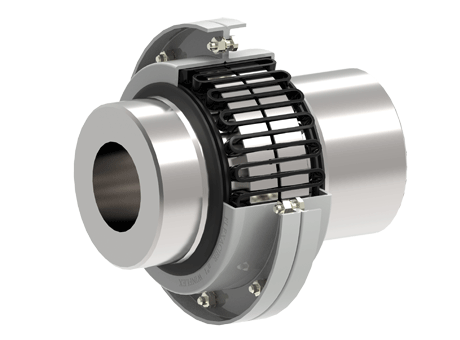

Winflex T - Type TL - Standard model with Horizontal or Vertical Working position - 1 short hub, 1 long hub

Manufacturer	CMD COUPLINGS
Description	Winflex Coupling TL, type T size 0, bore 1 : Ø6 mm for mounting with keyway, as per ISO R773 or DIN 6883.1, bore 2 : Ø6 mm for mounting with keyway, as per ISO R773 or DIN 6883.1
Part number	T 0 L AL1=C6 AL2=C6
Basis torque	950 N.m
Bore	6 mm
Bore 2	6 mm
Maximum rotation speed	3450 rpm
Maximum rotation speed with dynamic balancing	4500 rpm

CAD models

Request for quotation

Product selection

Information

How to select your coupling

Service Factor Application

Absorbed torque application (N.m)

Application rotation speed (rpm)

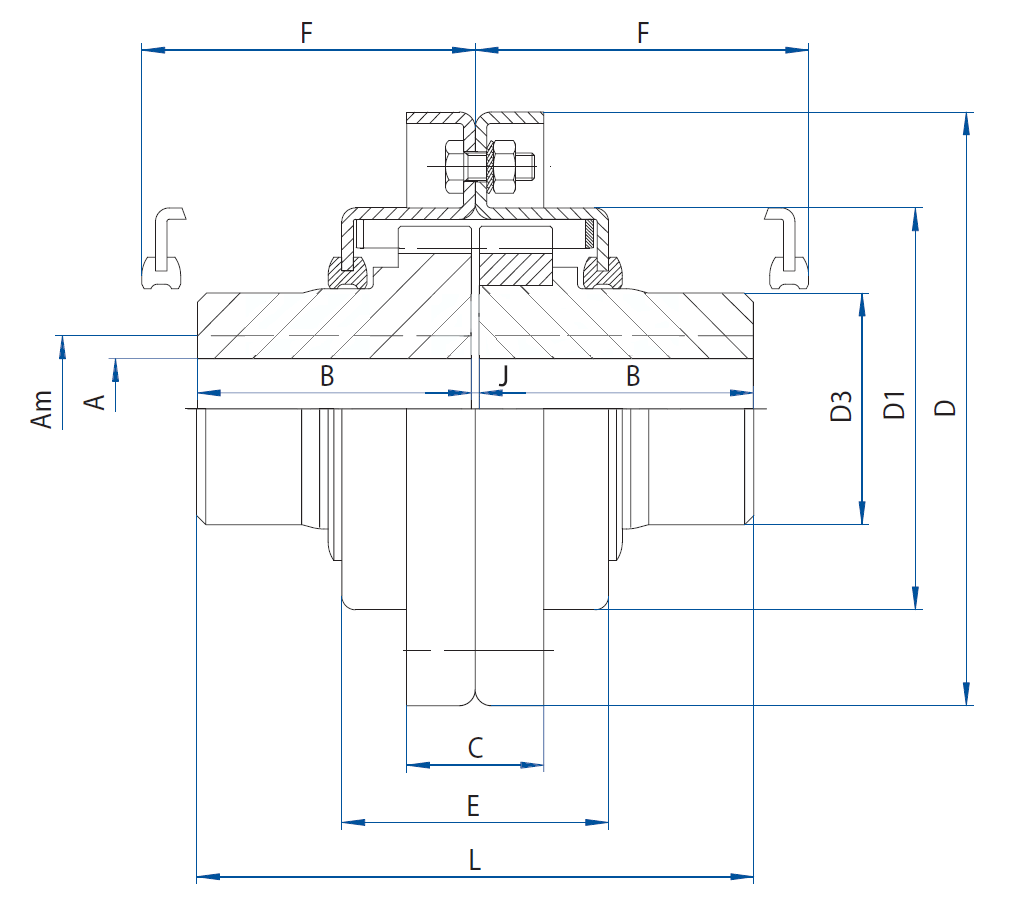

	Part number	Basis torque (N.m)	Maximum Bore with keyway (mm)	Maximum Bore with cylindric shrink fit (mm)	Rough bore (mm)	B: T model (mm)	B: TL, TL2 model (mm)	D (mm)	J (mm)	L : exécution TL (mm)	Mass complete couplingT (kg)	Moment of inertia J full hub T model (kg.m²)	Maximum speed (rpm)	Maximum speed with dynamic balancing (rpm)
	T 0 L	950	55	45	-	60	110	165	2	172	7.8	0.0135	3450	4500
	T 1 L	1900	80	60	-	80	110	200	3	193	16.6	0.04	2640	4000
	T 2 L	3800	110	100	-	80	110	250	3	193	31	0.14	1880	3600
	T 5 L	8500	105	90	30	110	170	265	3	283	42	0.2	1880	3200
	T 9 L	12500	130	110	30	110	195	307	3	308	63	0.45	1570	3000
	T 16 L	24000	180	170	60	130	195	395	3	328	125	1.5	1200	2500
	T 28 L	48000	230	200	75	155	225	494	4	384	245	4.65	920	2000
	T 43 L	70000	230	220	85	180	260	595	4	444	327	8.25	750	1500
	T 70 L	120000	230	220	95	200	280	595	4	484	409	11.5	750	1500
	T 95 L	160000	270	250	105	230	300	670	4	534	579	20.25	650	1250

Mounting for Bore 1

Mounting for Bore 2

Ø Bore 1 (mm)

Ø Bore 2 (mm)
