By CMD COUPLINGS

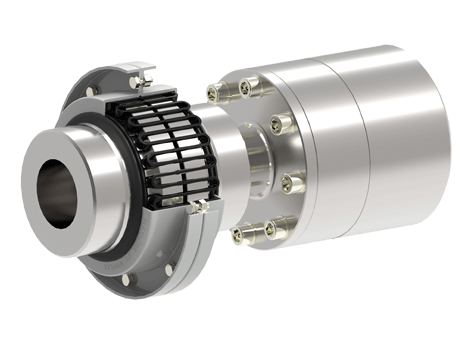

Winflex T - Type TLNPE - Model with spacer - 1 short hub, 1 long hub

Manufacturer	CMD COUPLINGS
Description	Winflex Coupling T, type TLNPE, size 0, H = 80 mm, E = 100 mm, bore 1 : Ø6 mm for mounting with keyway, as per ISO R773 or DIN 6883.1, bore 2 : Ø6 mm for mounting with keyway, as per ISO R773 or DIN 6883.1
Part number	T 0 LNPE H80 E100 AL1=C6 AL2=C6
Basis torque	950 N.m
Bore	6 mm
Bore 2	6 mm
Maximum rotation speed	3000 rpm
Maximum rotation speed with dynamic balancing	3600 rpm

CAD models

Request for quotation

Product selection

Information

How to select your coupling

Service Factor Application

Absorbed torque application (N.m)

Application rotation speed (rpm)

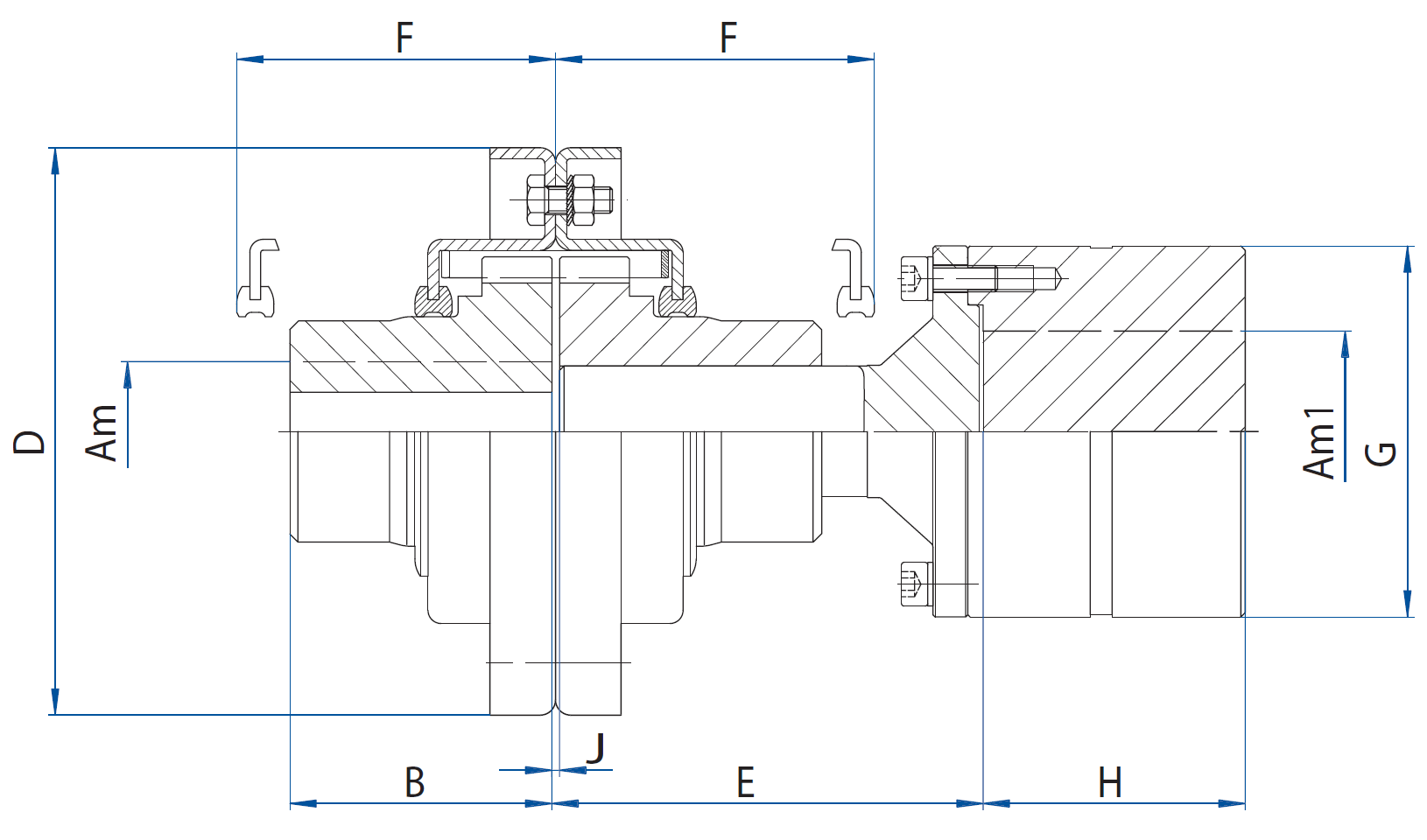

	Part number	Basis torque (N.m)	Maximum Bore 1 with keyway (mm)	Maximum Bore 1 with cylindric shrink fit (mm)	Maximum Bore 2 with keyway (mm)	Maximum Bore 2 with cylindric shrink fit (mm)	Rough bore (mm)	B: TL model (mm)	D (mm)	J (mm)	Mass model T average value for E andt H (kg)	Moment of inertia J average value for E et H (kg.m²)	Maximum speed (rpm)	Maximum speed with dynamic balancing (rpm)
	T 0 LNPE	950	55	45	65	65	-	110	165	4	14.5	0.025	3000	3600
	T 1 LNPE	1900	80	60	90	90	-	110	200	4	33.7	0.1	2400	3600
	T 2 LNPE	3800	110	100	120	115	-	110	250	4	58.5	0.3	1700	3000
	T 5 LNPE	8500	105	90	120	115	30	170	265	4	69	0.3	1700	3000
	T 9 LNPE	12500	130	110	140	140	30	195	307	4	97	0.85	1500	3000

Spacer length = E (mm)

Rigid hub length = H

Mounting for Bore 1

Mounting for Bore 2

Ø Bore 1 (mm)

Ø Bore 2 (mm)

Documentation

Choose your coupling

Contact the supplier
