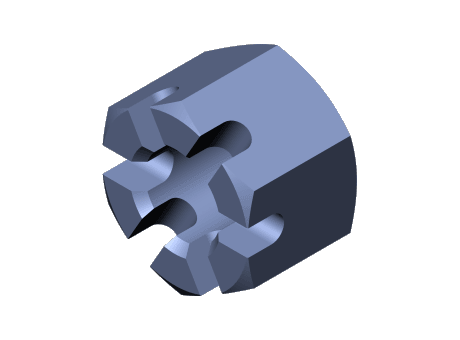

Hexagon slotted nuts and castle nuts with metric coarse and fine pitch thread, Product grades A and B

Standard	DIN 935-1
Description	Hexagon slotted nut DIN 935-1 - M4 - 6
Part number	DIN 935-1 - d M4 x p 0.7 - 6
Material	Steel
Omniclass number	23.13.23.11.13.23

CAD models

Product selection

	Thread size	Thickness (mm)	Pitch	Wrench size (mm)	Split pin as DIN 94
	M4	5	0.7	7	1 X 10
	M5	6	0.8	8	1,2 X 12
	M6	7.5	1	10	1,6 X 14
	(M7)	8	1	11	1,6 X 14
	M8	9.5	1.25	13	2 X 16
	M8 X 1	9.5	1	13	2 X 16
	M10	12	1.5	16	2,5 X 20
	M10 X 1	12	1	16	2,5 X 20
	M10 X 1,25	12	1.25	16	2,5 X 20
	M10	12	1.5	17	2,5 X 20

Class

Grade

A
