By Dongguan Forrun Hardware Co., Ltd.

FYBCHA - Ball Rollers - Press Fit

Manufacturer	Dongguan Forrun Hardware Co., Ltd.
Description	Ball Rollers - Press Fit - FYBCHA7.5
Part number	FYBCHA7.5
Main body material	304 Stainless Steel
Spacer material	304 Stainless Steel
Main ball material	440C Stainless Steel
Sub ball material	440C Stainless Steel

CAD models

Request for quotation

Product selection

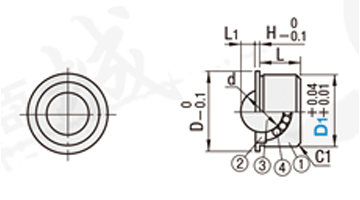

	Part Number	D1 (mm)	D (mm)	L (mm)	H (mm)	L1 (mm)	d (mm)	Allowable Load (N)	Allowable Load (kgf)
	FYBCHA7.5	7.5	9	4	1	1.1	4	12	1.2
	FYBCHA9	9	11	5	1	1.2	4.76	14	1.4
	FYBCHA11	11	13	6	1	1.5	5.56	41	4.2
	FYBCHA15	15	17	9	1	2.5	8.73	55	5.6
	FYBCHA18	18	20	10	1	3.5	10.32	62	6.3
	FYBCHA24	24	26	14	1.5	5.3	15.87	343	35
	FYBCHA30	30	32	17	2	6.3	19.05	412	42
