By Dongguan Forrun Hardware Co., Ltd.

FYBCHN - Ball Rollers - Lock Nut

Manufacturer	Dongguan Forrun Hardware Co., Ltd.
Description	Ball Rollers - Lock Nut - FYBCHN12
Part number	FYBCHN12
Body material	304 Stainless Steel
Spacer material	304 Stainless Steel
Main ball material	440C Stainless Steel
Sub balls material	440C Stainless Steel

CAD models

Request for quotation

Product selection

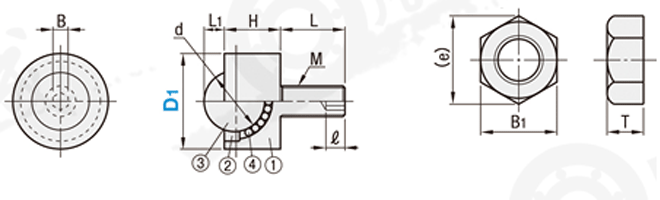

	Part Number	D1 (mm)	L1 (mm)	H (mm)	M (mm)	L (mm)	d (mm)	B (mm)	l (mm)	Allowable Load (N)	Allowable Load (kgf)
	FYBCHN12	12	1.5	6.5	6	15	5.56	3	3.5	41	4.2
	FYBCHN16	16	2.5	9.5	6	15	8.73	3	3.5	55	5.6
	FYBCHN19	19	3.5	11.5	8	20	10.32	4	5	62	6.3
	FYBCHN25	25	5.3	14.7	8	20	15.87	4	5	343	35
	FYBCHN31	31	6.3	18.7	10	25	19.05	5	6	412	42

Contact the supplier
