By Dongguan Forrun Hardware Co., Ltd.

FYBCSB - Ball Rollers - Set Screw

Manufacturer	Dongguan Forrun Hardware Co., Ltd.
Description	Ball Rollers - Set Screw - FYBCSB6
Part number	FYBCSB6
Main body material	Stainless Steel XM-7
Spacer material	304 Stainless Steel
Main ball material	440C Stainless Steel
Sub ball material	440C Stainless Steel

CAD models

Request for quotation

Product selection

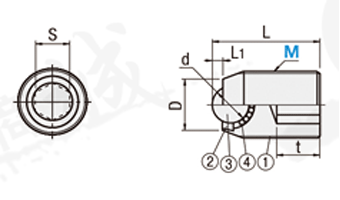

	Part Number	M (mm)	L (mm)	L1 (mm)	D (mm)	d (mm)	S (mm)	t (mm)	Allowable Load (N)	Allowable Load (kgf)
	FYBCSB6	6	12	0.9	3.5	3.18	3	3.5	2	0.2
	FYBCSB8	8	14	1.3	5	4.76	4	5	5	0.5
	FYBCSB10	10	16	1.2	7	4.76	5	6	14	1.4
	FYBCSB12	12	20	1.5	8	5.56	6	8	41	4.2
	FYBCSB16	16	25	2.5	12	8.73	8	10	55	5.6
	FYBCSB20	20	30	3.5	15	10.32	10	12	62	6.3
