By Dongguan Forrun Hardware Co., Ltd.

FYGAPT - Guide Assist Pins

Manufacturer	Dongguan Forrun Hardware Co., Ltd.
Description	Guide Assist Pins - FYGAPT40-60
Part number	FYGAPT40-60
Material	S45C
Accessory	Spring washer For M22

CAD models

Request for quotation

Product selection

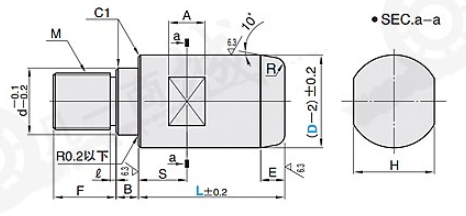

	D (mm)	d (mm)	B (mm)	M (mm)	F (mm)	E (mm)	l (mm)	H (mm)	S (mm)	R (mm)	A (mm)
	40	28	14	M20	20	10	4	35	15	5	25
	50	35	16	M24	28	12	5	41	20	5	30
	60	35	18	M30	30	12	5	50	25	8	30
	80	40	18	M36	40	15	5	70	30	10	35

L 5mm increments (mm)

Contact the supplier
