By Dongguan Forrun Hardware Co., Ltd.

FYMGOHP - Guide Posts with Oil Grooves - With dowel hole

Manufacturer	Dongguan Forrun Hardware Co., Ltd.
Description	Guide Posts with Oil Grooves - With dowel hole - FYMGOHP25-80
Part number	FYMGOHP25-80

CAD models

Request for quotation

Product selection

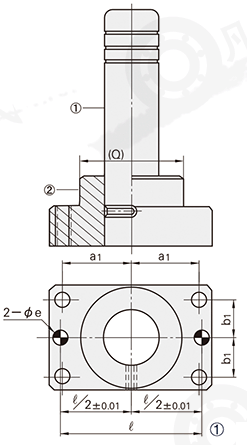

	D (mm)	M (mm)	A (mm)	B (mm)	d (mm)	H (mm)	T (mm)	Q (mm)	E (mm)	F (mm)	G (mm)	h (mm)	l (mm)	a1 (mm)	b1 (mm)	eH7 (mm)	Provided Bolt	Provided dowel pins
	25	-	84	48	9	30	20	46	13	13	3	15	66	33	15	8 +0.015	CB 8－35	MSTM 8－30
	32	-	100	58	11	40	20	56	15	15	3	20	76	38	18	8 +0.015	CB10－40	MSTM 8－30
	38	-	130	75	11	50	25	73	18	18	3	25	100	50	22	10 +0.015	CB10－45	MSTM10－40
	50	-	155	90	14	65	25	87	25	20	5	32.5	125	62.5	30	10 +0.015	CB12－50	MSTM10－40
	60	-	190	120	18	75	30	117	25	20	5	37.5	150	75	40	13 +0.018	CB16－60	MSTM13－50
	80	12	230	150	22	100	35	145	30	25	5	50	190	90	55	16 +0.018	CB20－75	MSTM16－60

Length

Contact the supplier
