51-361.F22D Keylock switch 3 positions rectangular, Actuator, Maintained - Rest (a) - Maintained

Manufacturer eao
Description Keylock switch 3 positions rectangular, Front dimension: 24 mm x 18 mm, Mounting cut-out: Ø 16 mm, IP front protection: IP65
Part Number 51-361.F22D_9e295a
Order Number 51-361.F22D
Front dimension 24 mm x 18 mm

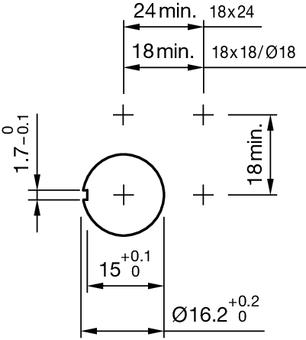

Mounting cut-out Ø 16 mm
IP front protection IP65
Front form rectangular
Design Raised design

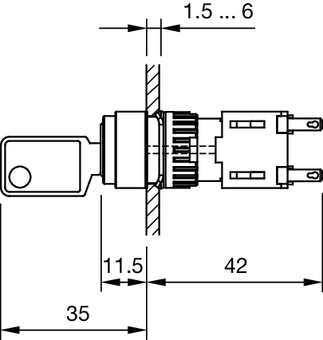

CAD picture caption Keylock switch 3 positions raised, rectangular, plug-in terminal, 2 NC/2 NO
CAD models
Request for quotation
Please make sure this software has been installed.

Product selection

Order NumberCAD picture caption
51-361.F22DKeylock switch 3 positions raised, rectangular, plug-in terminal, 2 NC/2 NO
