704.206.200 Indicator square, Actuator

Manufacturer eao
Description Indicator square, Front dimension: 35 mm x 35 mm, Mounting cut-out: Ø 30.5 mm, IP front protection: IP65
Part Number 704.206.200_c55768
Order Number 704.206.200
Front dimension 35 mm x 35 mm

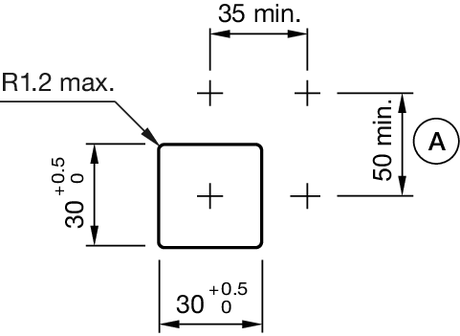

Mounting cut-out Ø 30.5 mm
IP front protection IP65
Front form square
Design Flush design
Color Red

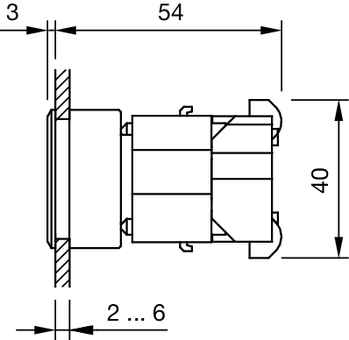

CAD picture caption Indicator square, flush
CAD models
Please make sure this software has been installed.

Product selection

Order NumberColorCAD picture caption
704.206.200RedIndicator square, flush
704.206.200RedFlasher square, flush
