SQMA - Angles for profile structures - Aluminium

Angles for profile structures

Manufacturer	ELESA
Description	SQMA - Angles for profile structures - Aluminium - SQMA-30-8-30-30-B-MT
Part Number	156001
Elesa Description	SQMA-30-8-30-30-B-MT

CAD models

Request for quotation

Product selection

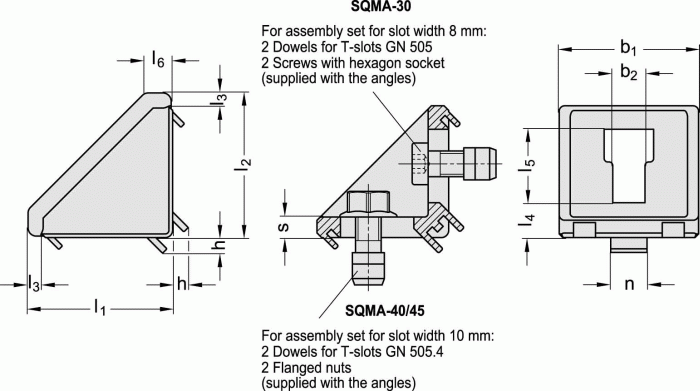

Index	Selector	Part Number	Elesa Description	h	b1	b2	l1	l2	l3	l4	l5	l6	n	s	Buy Now	Weight g
1	1	156001	SQMA-30-8-30-30-B-MT	2,1	28	6,3	30	30	3	9,7	10,4	6,8	8	5,9	-	23
2	2	156003	SQMA-30-8-30-30-B-SW	2,1	28	6,3	30	30	3	9,7	10,4	6,8	8	5,9	-	23
3	3	156002	SQMA-30-8-30-30-B-SR	2,1	28	6,3	30	30	3	9,7	10,4	6,8	8	5,9	-	23
4	4	156011	SQMA-40-10-40-40-B-MT	4,1	38	8,5	40	40	4	9,5	20	7,2	10	5,6	-	37
5	5	156013	SQMA-40-10-40-40-B-SW	4,1	38	8,5	40	40	4	9,5	20	7,2	10	5,6	-	37
6	6	156012	SQMA-40-10-40-40-B-SR	4,1	38	8,5	40	40	4	9,5	20	7,2	10	5,6	-	37
7	7	156021	SQMA-45-10-45-45-B-MT	4,1	43	8,5	45	45	4	15,7	18,7	11,5	10	9,7	-	49
8	8	156023	SQMA-45-10-45-45-B-SW	4,1	43	8,5	45	45	4	15,7	18,7	11,5	10	9,7	-	49
9	9	156022	SQMA-45-10-45-45-B-SR	4,1	43	8,5	45	45	4	15,7	18,7	11,5	10	9,7	-	49

Documentation

Quick Catalogue
