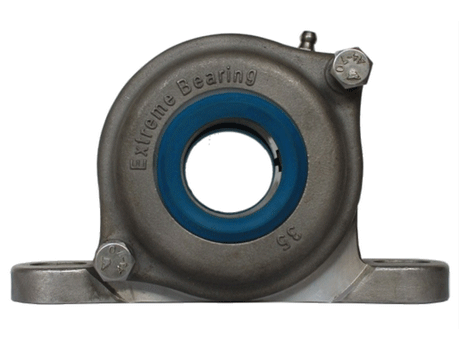

EXS - SS 316 washdown pillow block bearing units

Manufacturer	EXTREME BEARING
Description	SS 316 washdown pillow block bearing units, Size 024, Spherical roller bearing, Type-T, Housing seal : Radial seal, AS type, Cover seal : Cover seal, VK type
Part number	EXS T 024 AS VK
Axis diameter	23.81 mm
Axis diameter	15/16 inch
Dynamic load	59 kN
Static load	62 kN

CAD models

Product selection

Type	d (mm)	d (inch)	B (mm)	C (mm)	T (mm)	H (mm)	H1 (mm)	H2 (mm)	J (mm)	L (mm)	K (mm)	N (mm)	n1 (mm)	Grease hole	Basic load rating for spherical roller bearing Dynamic (kN)	Basic load rating for spherical roller bearing Static (kN)	Basic load rating for double roll ball bearing Dynamic (kN)	Basic load rating for double roll ball bearing Static (kN)	Axial movement (mm)	Seal seat (mm)
EXS-024	23.81	15/16	25	44	54	73	36.5	12	102	130	30	20	12	M6	59	62	15.7	4.7	3.5	42x7
EXS-025	25	62/63	25	44	54	73	36.5	12	102	130	30	20	12	M6	59	62	15.7	4.7	3.5	42x7
EXS-A25	25.4	1	25	44	54	73	36.5	12	102	130	30	20	12	M6	59	62	15.7	4.7	3.5	42x7
EXS-028	28.57	1 1/8	26	48	60	85	42.9	12	118	152	35	24	14	M6	81	88	16	5.2	3.5	47x7
EXS-030	30	1 1/6	26	48	60	85	42.9	12	118	152	35	24	14	M6	81	88	16	5.2	3.5	47x7
EXS-A30	30.16	1 1/5	26	48	60	85	42.9	12	118	152	35	24	14	M6	81	88	16	5.2	3.5	47x7
EXS-032	31.75	1 1/4	28	50	60	94	47.6	13	126	160	35	21	14	M6	88	100	19	6.5	3.5	52x7
EXS-A35	34.9	1 3/8	28	50	60	94	47.6	13	126	160	35	21	14	M6	88	100	19	6.5	3.5	52x7
EXS-035	35	1 3/8	28	50	60	94	47.6	13	126	160	35	21	14	M6	88	100	19	6.5	3.5	52x7
EXS-037	36.51	1 4/9	28	51	62	98	49.2	15	136	175	37	25	14	M6	95	105	22	7.5	3.5	62x7
