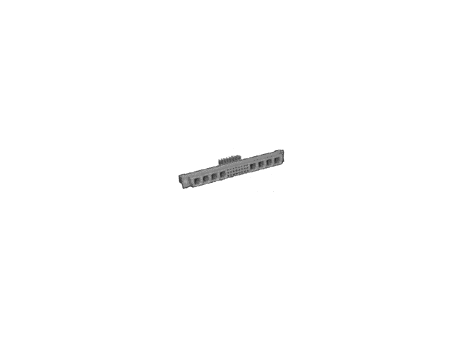

DIN 41612 Standard Hybrid Header, Type M, Right Angle, Solder-to-Board, 42 Position, 6 Insert, 2.54 mm (0.1 in.) Centerline

DIN 41612 Standard, Hybrid Connectors

Manufacturer	FCI
Description	DIN 41612 Standard Hybrid Header, Type M, Right Angle, Solder-to-Board, 42 Position, 6 Insert, 2.54 mm (0.1 in.) Centerline
Part Number	8609342E113755E1LF

CAD models

	Part Number	Description	Orientation	Gender	Number of contacts (Total)	Plating Specification (Contact area)	Post type	Board attachment
	8609342E113755E1LF	DIN 41612 Standard Hybrid Header, Type M, Right Angle, Solder-to-Board, 42 Position, 6 Insert, 2.54 mm (0.1 in.) Centerline	Right Angle	Header	42	Class II	Dip Solder	Solder to Board
