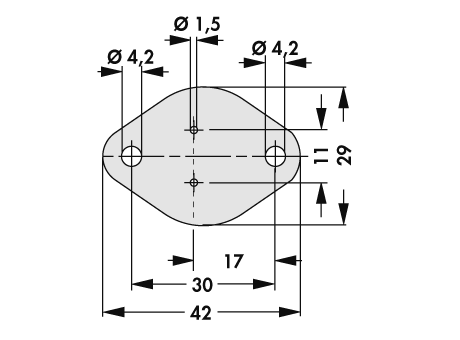

KAP 3 K, Kapton insulator washer, for semiconductors TO 3, 42 x 29 mm

Kapton insulator washers

Manufacturer	Fischer Elektronik GmbH & Co. KG
Description	Kapton insulator washer
Reference	KAP 3 K

CAD models

Index	Selector	material thickness [mm]	thermal conductivity λ [W/m·K]	material	type of delivery	Desingation
1	1	0,077 mm (substrate 0,05mm)	0,45 (substrate)	polyimide-carrier foil with silicone-free phase changing thermal conductive layer completely coated on both sides	cut	Kapton insulator washer for semiconductors type TO 3, 42 x 29 mm
