Manufacturer	Enmin’s Flow-Easy
Description	Turbomite CVT-A Series with NPT thread size1/8 NPT inch, CVT-A-30-1
Part number	CVT-A-30-1
Max speed (VFM)	16,890
Max force (LBF)	105.3
Type	Single-Bolt Style

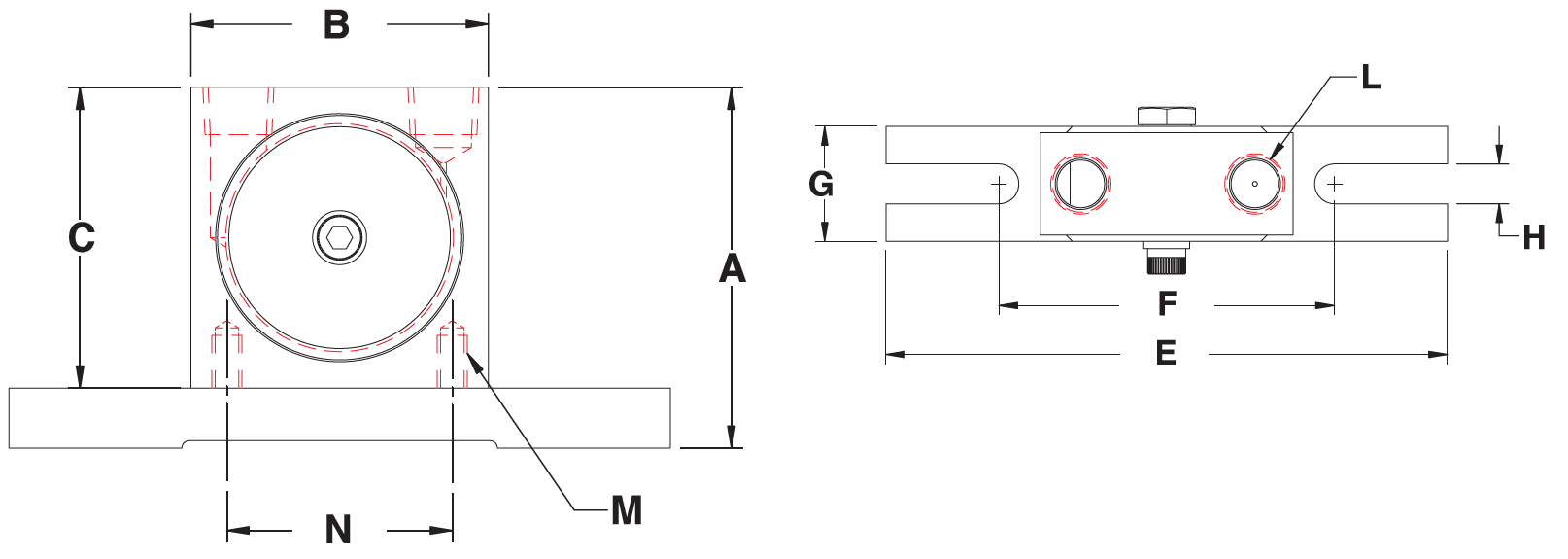

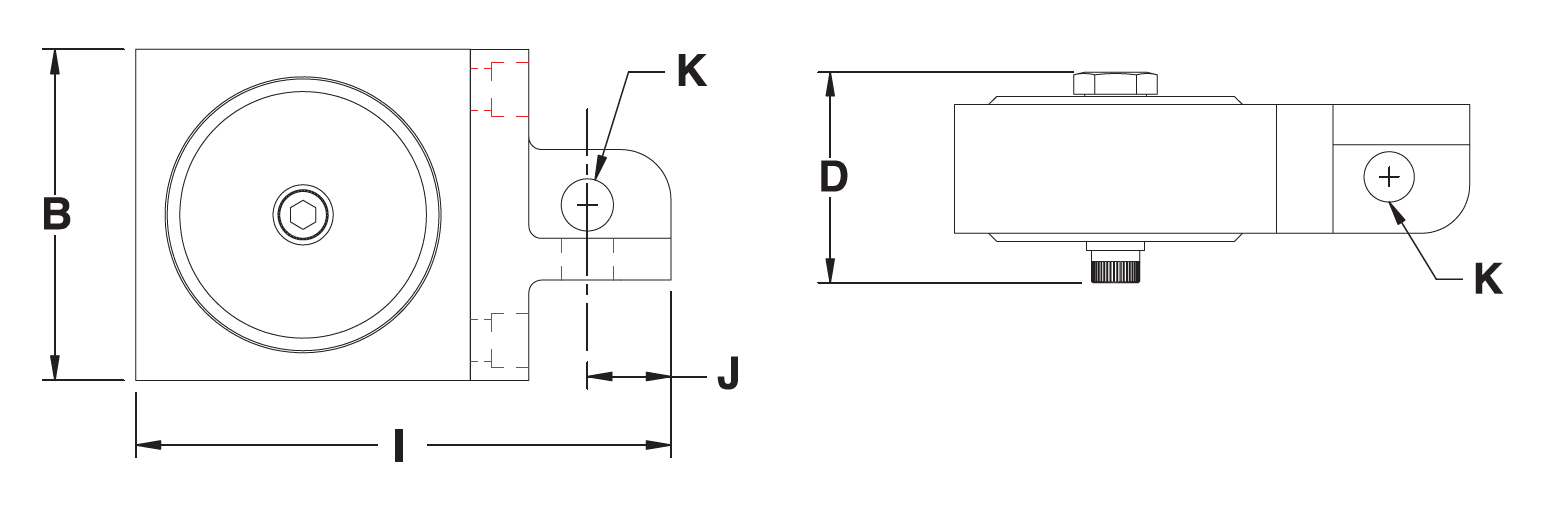

Model	A (inch)	B (inch)	C (inch)	D (inch)	E (GPM)	F (inch)	G (inch)	H (inch)	I (inch)	J (inch)	K (inch)	L (inch)	M	N (inch)	Weight (LBS)	Unbalance (IN_LBS)	Speed at 20 PSI (VPM)	Force at 20 PSI (LBF)	Air cons. at 20 PSI (CFM)	Speed at 40 PSI (VPM)	Force at 40 PSI (LBF)	Air cons. at 40 PSI (CFM)	Speed at 60 PSI (VPM)	Force at 60 PSI (LBF)	Air cons. at 60 PSI (CFM)	Speed at 80 PSI (VPM)	Force at 80 PSI (LBF)	Air cons. at 80 PSI (CFM)
CVT-A-30	2-1/4	1-7/8	1 3/4	1-1/4	4-7/8	2-5/8	7/8	3/8	3-7/16	3/8	5/16	1/8 NPT	10-24 THREAD	1-3/8	0.48	0.013	12,060	54	1.1	14,280	75.3	1.8	16,650	102.4	2.5	16,890	105.3	3.2
CVT-A-40	2-1/2	2-1/8	2 1/8	1-1/2	4-1/2	2-11/16	1	3/8	3-9/16	1/2	3/8	1/8 NPT	1/4-20 THREAD	1-1/2	0.65	0.029	4,500	17	1.3	7,900	51	1.8	12,100	121	2.5	15,690	202.8	3.2
CVT-A-50	3	2-1/2	2 1/2	1-5/8	5-1/2	3-5/16	1-1/8	13/32	4	5/8	13/32	1/4 NPT	1/4-20 THREAD	1-7/8	1.2	0.044	3,500	15	1.7	8,970	101	2.8	12,790	204	3.8	14,560	265	5
CVT-A-80	4	3-1/2	3 1/2	2-1/4	6-1/4	4-1/2	1-5/8	9/16	5-11/16	1/2	17/32	1/4 NPT	5/16-24 THREAD	2-7/8	2.6	0.194	1,930	20.5	1.8	6,135	207.4	2.9	8,750	421.8	40	10,255	579.4	5.2

Turbomite CVT-A Series
