GN 744 Oil level sight glasses, Type C with red marking ring

Manufacturer	GANTER
Description	GN 744 Oil level sight glasses, Type C with red marking ring
Part number	GN 744-11-G3/8-C

CAD models

Request for quotation

Product selection

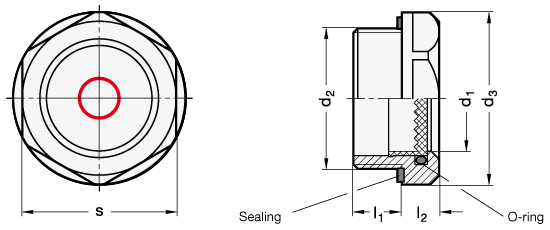

Index	Selector	Part number	d1 (mm)	d2	d3 (mm)	l1 (mm)	l2 (mm)	s (mm)	Material
1	10	GN 744-11-G3/8-C	11	G3/8	22	8	7.5	20	aluminum
2	11	GN 744-11-M16x1.5-C	11	M16x1.5	22	8	7.5	20	aluminum
3	1	GN 744-14-G1/2-C	14	G1/2	26	8.5	7.5	23	aluminum
4	2	GN 744-14-M20x1.5-C	14	M20x1.5	26	8.5	7.5	23	aluminum
5	3	GN 744-18-G3/4-C	18	G3/4	32	9	8	30	aluminum
6	4	GN 744-18-M26x1.5-C	18	M26x1.5	32	9	8	30	aluminum
7	5	GN 744-18-M27x1.5-C	18	M27x1.5	32	9	8	30	aluminum
8	6	GN 744-24-G1-C	24	G1	40	11	8.5	36	aluminum
9	7	GN 744-24-M33x1.5-C	24	M33x1.5	40	11	8.5	36	aluminum
