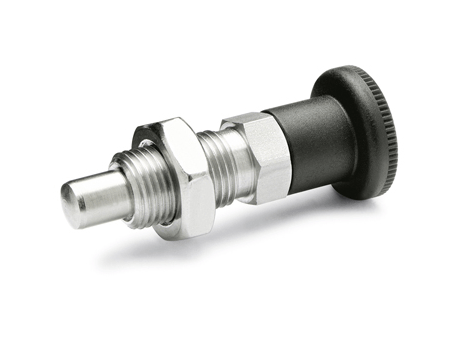

GN 817 Stainless steel Indexing plungers Type CK, with rest position, with lock nut

Manufacturer	GANTER
Description	GN 817 Stainless steel Indexing plungers Type CK, with rest position, with lock nut
Part number	GN 817-12-15-CK-NI
Note	eCl@ss 6.0: 23-10-01-90

CAD models

Request for quotation

Product selection

Index	Selector	Part number	d1 Plunger -0.02/-0.04 Bore H7 (mm)	l1 (mm)	d2	d3 (mm)	k (mm)	l2 (mm)	l3 (mm)	l4 (mm)	A/F (mm)	Spring load initial (N)	Spring load end (N)	Material
1	1	GN 817-4-4-CK-NI	4	4	M8x1	16	14	35	16	5	10	4.5	12	stainless steel
2	2	GN 817-4-6-CK-NI	4	6	M8x1	16	14	35	16	5	10	4	12.5	stainless steel
3	3	GN 817-5-5-CK-NI	5	5	M10x1	19	16	40	18	6	12	5	15	stainless steel
4	4	GN 817-5-8-CK-NI	5	8	M10x1	19	16	40	18	6	12	5	18	stainless steel
5	5	GN 817-6-6-CK-NI	6	6	M12x1.5	23	20	48	22	6	14	6.5	19	stainless steel
6	6	GN 817-6-9-CK-NI	6	9	M12x1.5	23	20	48	22	6	14	6	25	stainless steel
7	7	GN 817-8-8-CK-NI	8	8	M16x1.5	28	24	58	26	8	17	8.5	26	stainless steel
8	8	GN 817-8-12-CK-NI	8	12	M16x1.5	28	24	58	26	8	17	8.5	28	stainless steel
9	9	GN 817-10-12-CK-NI	10	12	M16x1.5	28	24	58	26	8	17	9.5	38	stainless steel
10	10	GN 817-12-15-CK-NI	12	15	M20x1.5	33	28.5	71.5	33	10	22	11.5	40	stainless steel
11	21	GN 817-16-20-CK-NI	16	20	M24x2	33	28.5	78.5	38	12	27	13	54	stainless steel
12	11	GN 817-4-4-CK-NI-RT	4	4	M8x1	16	14	35	16	5	10	4.5	12	stainless steel
13	12	GN 817-4-6-CK-NI-RT	4	6	M8x1	16	14	35	16	5	10	4	12.5	stainless steel
14	13	GN 817-5-5-CK-NI-RT	5	5	M10x1	19	16	40	18	6	12	5	15	stainless steel
15	14	GN 817-5-8-CK-NI-RT	5	8	M10x1	19	16	40	18	6	12	5	18	stainless steel
16	15	GN 817-6-6-CK-NI-RT	6	6	M12x1.5	23	20	48	22	6	14	6.5	19	stainless steel
17	16	GN 817-6-9-CK-NI-RT	6	9	M12x1.5	23	20	48	22	6	14	6	25	stainless steel
18	17	GN 817-8-8-CK-NI-RT	8	8	M16x1.5	28	24	58	26	8	17	8.5	26	stainless steel
19	18	GN 817-8-12-CK-NI-RT	8	12	M16x1.5	28	24	58	26	8	17	8.5	28	stainless steel
20	19	GN 817-10-12-CK-NI-RT	10	12	M16x1.5	28	24	58	26	8	17	9.5	38	stainless steel
21	20	GN 817-12-15-CK-NI-RT	12	15	M20x1.5	33	28.5	71.5	33	10	22	11.5	40	stainless steel
22	22	GN 817-16-20-CK-NI-RT	16	20	M24x2	33	28.5	78.5	38	12	27	13	54	stainless steel
