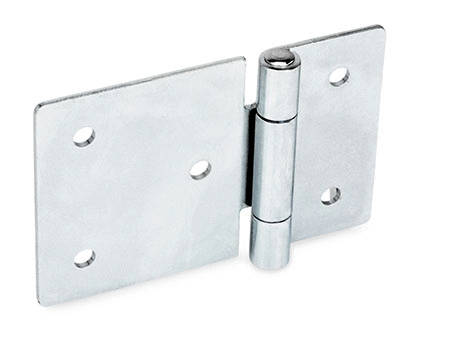

GN 136 Sheet Metal Hinges, Horizontally Elongated

Manufacturer	GANTER
Description	Sheet Metal Hinges, Horizontally Elongated
Part Number	136-ST-45-30-B
EAN	4045525410848
ECLASS 9.1	23250304

Customs fee number	83021000
RoHs	Yes
Weight	0.019 kg
Type	B - With through-holes
Material	ST - Steel

CAD models

Request for quotation

Product selection

	Part Number	l1	l2	d1	d2	d3	d4	m1	m2	m4	m5	s	Type	Material
	136-ST-45-30-B	45	30	3	3.2			33	18	9		1.5	B - With through-holes	ST - Steel
	136-ST-45-30-C	45	30	3		4	6.4	33	18	9		1.5	C - With countersunk holes	ST - Steel
	136-ST-60-30-B	60	30	3	3.2			48	18	9	24	1.5	B - With through-holes	ST - Steel
	136-ST-60-30-C	60	30	3		4	6.4	48	18	9	24	1.5	C - With countersunk holes	ST - Steel
	136-ST-60-40-B	60	40	4	4.2			45	25	12.5		2	B - With through-holes	ST - Steel
	136-ST-60-40-C	60	40	4		5	8.3	45	25	12.5		2	C - With countersunk holes	ST - Steel
	136-ST-80-40-B	80	40	4	4.2			65	25	12.5	32.5	2	B - With through-holes	ST - Steel
	136-ST-80-40-C	80	40	4		5	8.3	65	25	12.5	32.5	2	C - With countersunk holes	ST - Steel
	136-ST-75-50-B	75	50	6	5.2			55	30	15		2	B - With through-holes	ST - Steel
	136-ST-75-50-C	75	50	6		5	8.3	55	30	15		2	C - With countersunk holes	ST - Steel

Product Description

Sheet metal hinges GN 136 are available in many different versions and are suitable for light to medium-duty applications.
