ADA Green Pin® Rotating Hoist Ring GR8 (mm)

Manufacturer	Green Pin®
Description	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA08 (mm)
Part Number	GPADA08

CAD models

Request for quotation

Product selection

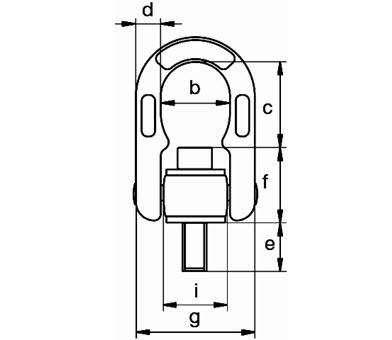

Part Number	Description	drawing in PDF	working load limit (t)	diameter thread a (mm)	width inside b (mm)	length inside c (mm)	diameter d (mm)	length e (mm)	thickness base f (mm)	width outside g (mm)	diameter base h (mm)	diameter base i (mm)	length inside j (mm)	hex key (mm)	torque value (Nm)	weight each (kg)
GPADA08	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA08 (mm)	PDF	0.4	M8 x 1.25	35	41	13	18	35	68	34	38	43	6	6.5	0.43
GPADA10	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA10 (mm)	PDF	0.7	M10 x 1.50	35	39	13	18	37	68	34	38	43	8	13	0.44
GPADA12	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA12 (mm)	PDF	1	M12 x 1.75	35	36	13	22	39	68	34	38	43	10	22	0.46
GPADA14	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA14 (mm)	PDF	1.3	M14 x 2.00	35	35	13	22	42	68	34	38	43	12	35	0.47
GPADA16	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA16 (mm)	PDF	1.6	M16 x 2.00	35	42	13	28	43	68	34	38	52	14	55	0.52
GPADA18	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA18 (mm)	PDF	2	M18 x 2.50	35	40	13	28	45	68	34	38	52	14	80	0.54
GPADA20	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA20 (mm)	PDF	2.5	M20 x 2.50	35	38	13	32	47	68	34	38	52	17	110	0.59
GPADA22	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA22 (mm)	PDF	3	M22 x 2.50	53	57	20	33	69	105	49	56	71	17	150	1.88
GPADA24	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA24 (mm)	PDF	4	M24 x 3.00	53	55	20	39	71	105	49	56	71	19	190	1.93
GPADA27	ADA Green Pin® Rotating Hoist Ring, Grade 8 rotating hoist ring, GPADA27 (mm)	PDF	5	M27 x 3.00	53	61	20	45	65	105	49	56	71	19	280	1.96

Product Description

For all dimensions please consult the specific product page on the Green Pin(r) website for the most up to date technical information.

Documentation

greenpin.com

Contact the supplier

Green Pin®

Green Pin® is the leading brand for premium quality lifting and lashing equipment including shackles, turnbuckles, hooks and fibre link chain. What makes it the leading brand? Only Green Pin® combines innovative, high quality products with industry leading availability and comprehensive, worldwide support. This unique combination means that with Green Pin® products you are always ready to get the job done. You are Green to Go. Discover the benefits of using Green Pin®. Green Pin® products conform to many certifications, including DNV and Lloyd’s.
