ADAUNC Green Pin® Rotating Hoist Ring UNC GR8 (mm)

Manufacturer Green Pin®
Description ADAUNC Green Pin® Rotating Hoist Ring UNC, GR8, GPADA08UNC (mm)
Part Number GPADA08UNC
CAD models
Request for quotation
Please make sure this software has been installed.

Product selection

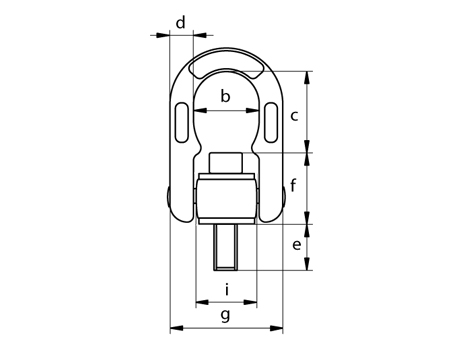

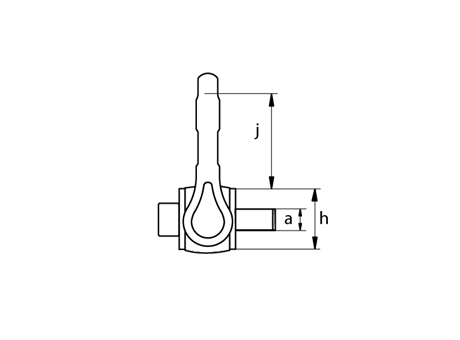

Part NumberDescriptiondrawing
in
PDF		working
load
limit

(t)		diameter
thread

a
(inch)
GPADA08UNCADAUNC Green Pin® Rotating Hoist Ring UNC, GR8, GPADA08UNC (mm)PDF0.45/16 - 18UNC
GPADA10UNCADAUNC Green Pin® Rotating Hoist Ring UNC, GR8, GPADA10UNC (mm)PDF0.63/8 - 16UNC
GPADA12UNCADAUNC Green Pin® Rotating Hoist Ring UNC, GR8, GPADA12UNC (mm)PDF11/2 - 13UNC
GPADA16UNCADAUNC Green Pin® Rotating Hoist Ring UNC, GR8, GPADA16UNC (mm)PDF1.75/8 - 11UNC
GPADA20UNCADAUNC Green Pin® Rotating Hoist Ring UNC, GR8, GPADA20UNC (mm)PDF2.53/4 - 10UNC
GPADA22UNCADAUNC Green Pin® Rotating Hoist Ring UNC, GR8, GPADA22UNC (mm)PDF3.57/8 - 9UNC
GPADA24UNCADAUNC Green Pin® Rotating Hoist Ring UNC, GR8, GPADA24UNC (mm)PDF4.51 - 8UNC
GPADA32UNCADAUNC Green Pin® Rotating Hoist Ring UNC GR8, GPADA32UNC (mm)PDF6.81 1/4 - 7UNC
GPADA38UNCADAUNC Green Pin® Rotating Hoist Ring UNC GR8, GPADA38UNC (mm)PDF10.81 1/2 - 6UNC
GPADA50UNCADAUNC Green Pin® Rotating Hoist Ring UNC GR8, GPADA50UNC (mm)PDF13.62 - 4.5UNC

Product Description

For all dimensions please consult the specific product page on the Green Pin(r) website for the most up to date technical information.

Documentation

greenpin.com

Contact the supplier

Green Pin®

Green Pin®

Green Pin® is the leading brand for premium quality lifting and lashing equipment including shackles, turnbuckles, hooks and fibre link chain. What makes it the leading brand? Only Green Pin® combines innovative, high quality products with industry leading availability and comprehensive, worldwide support. This unique combination means that with Green Pin® products you are always ready to get the job done. You are Green to Go. Discover the benefits of using Green Pin®. Green Pin® products conform to many certifications, including DNV and Lloyd’s.
