G-4143 Green Pin® Bow Shackle FN (inch)

Manufacturer	Green Pin®
Description	G-4143 Green Pin® Bow Shackle FN, GPGHMB45FN (inch)
Part number	GPGHMB45FN

CAD models

Request for quotation

Product selection

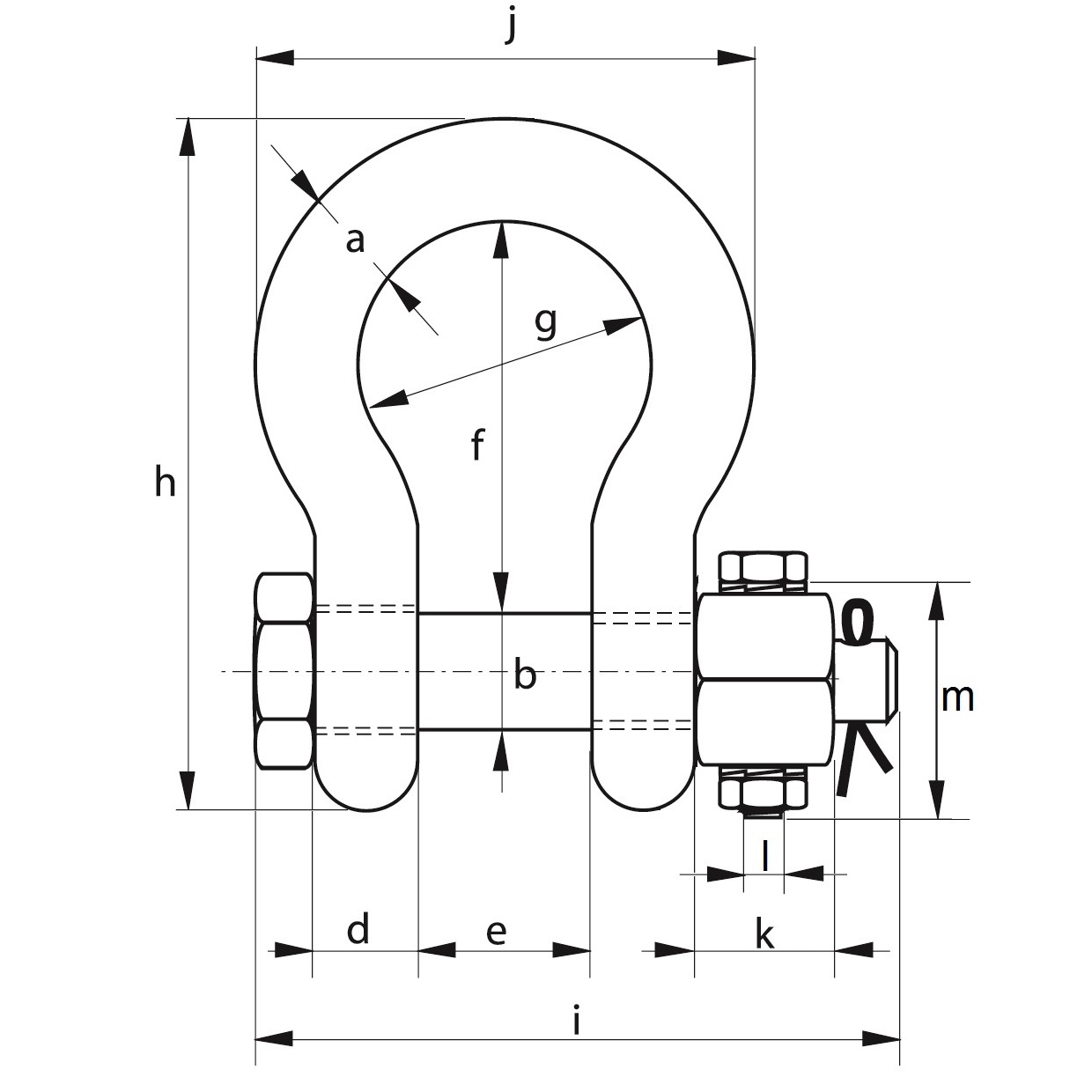

Part number	Description	drawing in PDF	working load limit (t)	diameter bow a (inch)	diameter pin b (inch)
GPGHMB13FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB13FN (inch)	PDF	2	1/2	5/8
GPGHMB16FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB16FN (inch)	PDF	3.25	5/8	3/4
GPGHMB19FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB19FN (inch)	PDF	4.75	3/4	7/8
GPGHMB22FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB22FN (inch)	PDF	6.5	7/8	1
GPGHMB25FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB25FN (inch)	PDF	8.5	1	1 1/8
GPGHMB28FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB28FN (inch)	PDF	9.5	1 1/8	1 1/4
GPGHMB32FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB32FN (inch)	PDF	12	1 1/4	1 3/8
GPGHMB35FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB35FN (inch)	PDF	13.5	1 3/8	1 1/2
GPGHMB38FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB38FN (inch)	PDF	17	1 1/2	1 5/8
GPGHMB45FN	G-4143 Green Pin® Bow Shackle FN, GPGHMB45FN (inch)	PDF	25	1 3/4	2

Product Description

For all dimensions please consult the specific product page on the Green Pin(r) website for the most up to date technical information

Documentation

greenpin.com

Contact the supplier

Green Pin®

Green Pin® is the leading brand for premium quality lifting and lashing equipment including shackles, turnbuckles, hooks and fibre link chain. What makes it the leading brand? Only Green Pin® combines innovative, high quality products with industry leading availability and comprehensive, worldwide support. This unique combination means that with Green Pin® products you are always ready to get the job done. You are Green to Go. Discover the benefits of using Green Pin®. Green Pin® products conform to many certifications, including DNV and Lloyd’s.
