P-6036 Green Pin® Heavy Duty Bow Shackle BN (inch)

Manufacturer	Green Pin®
Description	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0800 (inch)
Part Number	HDGPHM0800

CAD models

Request for quotation

Product selection

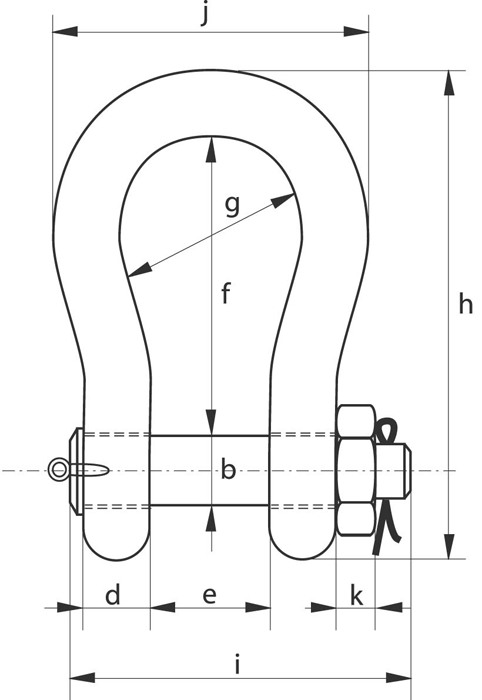

	Part Number	Description	drawing in PDF	working load limit (t)	diameter bow a (inch)	diameter pin b (inch)	diameter eye c (inch)	width eye d (inch)	width inside e (inch)	length inside f (inch)	width bow g (inch)	length h (inch)	length bolt i (inch)	width j (inch)	thickness nut k (inch)	weight each (lbs)
1	1	HDGPHM0120	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0120 (inch)	PDF	120	3 3/4	3 3/4	8 1/32	3 3/4	5 25/32	15 3/4	9 3/8	25 11/32	17 27/32	16 27/32	1 31/32	243
2	2	HDGPHM0150	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0150 (inch)	PDF	150	4 1/8	4 1/4	9 1/4	4 1/8	6 21/32	16 5/32	10 13/16	27	19 17/32	19 3/32	1 31/32	353
3	3	HDGPHM0200	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0200 (inch)	PDF	200	4 23/32	5 1/8	10 5/8	4 23/32	7 1/16	20 3/16	11 13/32	32 25/32	22 7/32	20 7/8	2 25/32	518
4	4	HDGPHM0250	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0250 (inch)	PDF	250	5 1/8	5 1/2	11 3/16	5 1/8	8 1/16	21 13/16	12	35 9/32	24 3/16	22 1/4	2 25/32	628
5	5	HDGPHM0300	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0300 (inch)	PDF	300	5 1/2	5 29/32	12 1/8	5 1/2	8 1/16	24 11/32	12	38 27/32	25 11/32	23 1/32	3 3/16	750
6	6	HDGPHM0400	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0400 (inch)	PDF	400	6 11/16	6 7/8	14 13/16	6 15/32	9 3/32	26 11/32	12 25/32	43 29/32	27 15/32	26 3/16	2 3/4	1366
7	7	HDGPHM0500	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0500 (inch)	PDF	500	7 3/32	7 9/32	15 21/32	6 15/32	10 3/32	28 5/16	13 25/32	46 7/8	28 28/32	27 15/16	2 3/4	1586
8	8	HDGPHM0600	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0600 (inch)	PDF	600	7 7/8	8 1/16	17 15/32	7 7/16	11 3/32	28 5/16	14 3/4	48 31/32	31 7/8	30 1/2	2 3/4	2148
9	9	HDGPHM0700	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0700 (inch)	PDF	700	8 9/32	8 15/32	17 7/8	8 1/32	12 1/8	28 9/32	15 3/4	49 23/32	34 1/4	32 9/32	2 3/4	2161
10	10	HDGPHM0800	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0800 (inch)	PDF	800	8 9/32	8 21/32	18 9/32	8 1/32	12 1/8	28 9/32	15 3/4	50	34 1/4	32 9/32	2 3/4	2425
11	11	HDGPHM0900	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM0900 (inch)	PDF	900	8 21/32	9 1/16	19 3/32	8 15/32	12 29/32	28 9/32	16 17/32	51 1/32	36 7/32	33 27/32	2 3/4	2822
12	12	HDGPHM1000	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM1000 (inch)	PDF	1000	9 7/16	9 7/16	20 9/32	8 15/32	13 3/4	28 9/32	16 17/32	52 19/32	37	35 7/16	2 3/4	3219
13	13	HDGPHM1250	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM1250 (inch)	PDF	1250	10 1/4	10 5/8	23 1/32	9 1/16	14 17/32	30 1/4	17 23/32	57 5/16	40 11/32	38 3/16	2 3/4	4387
14	14	HDGPHM1500	P-6036 Green Pin® Heavy Duty Bow Shackle BN, HDGPHM1500 (inch)	PDF	1500	11 1 /32	11 13/32	24 19/32	9 1/16	14 17/32	32 7/32	17 23/32	61 1/4	40 11/32	39 3/4	2 3/4	5291

Product Description

For all dimensions please consult the specific product page on the Green
Pin(r) website for the most up to date technical information
