Compression Force Sensor DK4

Manufacturer	HAEHNE Elektronische Messgeräte GmbH
Description	Compression Force Sensor DK4-200k-T
Part number	DK4-200k-T
Force	200 kN
Operating temperature	- 10 ... + 70 °C

CAD models

Request for quotation

Product selection

Nominal force (kN)

Additional Option

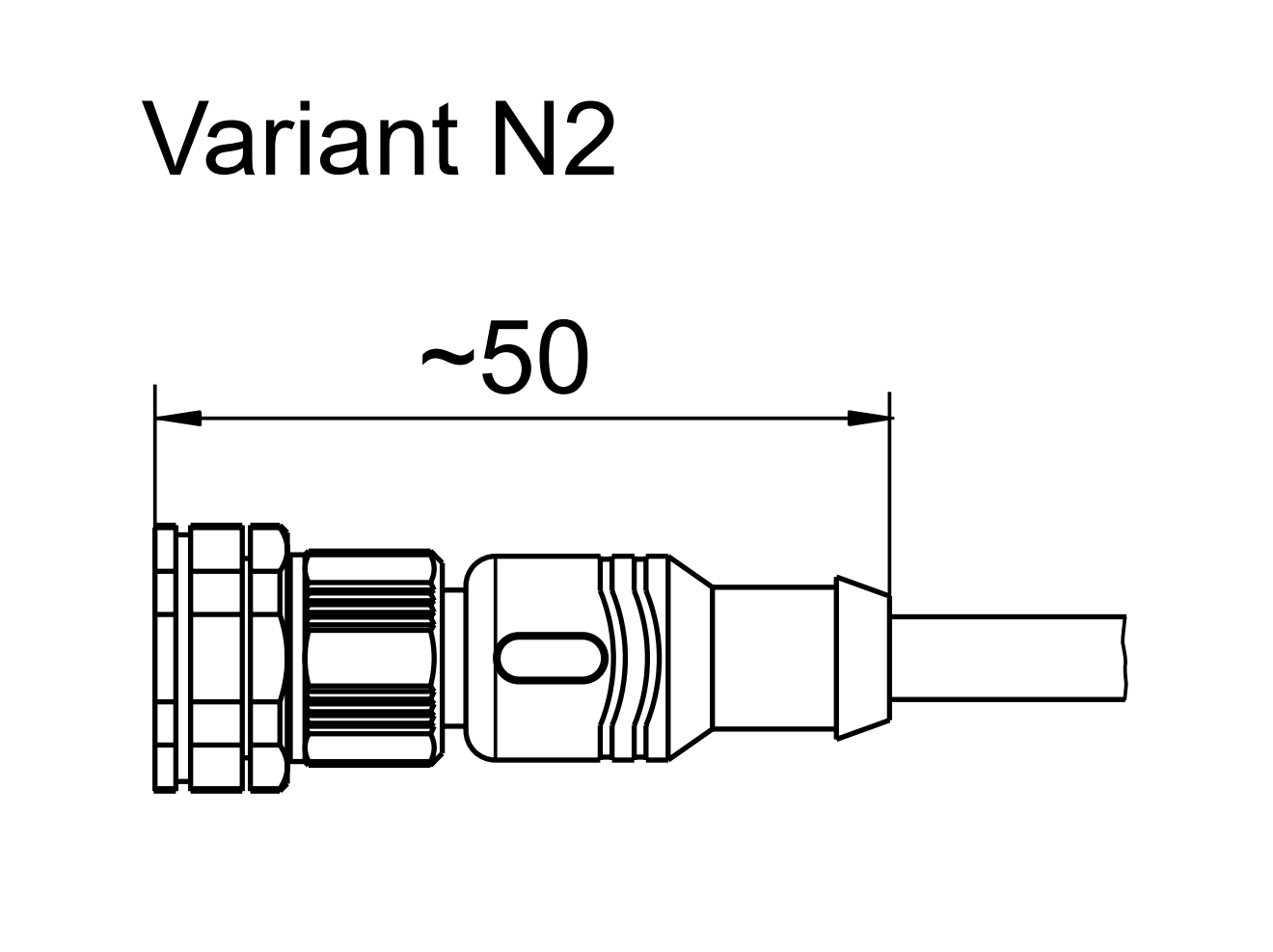

Variant

	Max. operating force	Absolute max. force	Nominal rating	Combined error	Nominal ambient temperature	Operational temperature range (°C)	Bridge supply voltage DC (V)	Enclosure protection
	150%	250%	1,0 m V / V	0.5 %	+ 10 ... + 60	- 10 ... + 70	10	IP 67

Documentation

Document

Contact the supplier

HAEHNE Elektronische Messgeräte GmbH

HAEHNE offers solutions for force measurement and tension measurement since 1977. We develop, manufacture and market sensors and evaluation electronics 'Made in Germany' to make machines and systems more efficient.
