Tension Compression Force Sensor ZK2

Manufacturer	HAEHNE Elektronische Messgeräte GmbH
Description	Tension Compression Force Sensor ZK2A10k-T
Part number	ZK2A10k-T
Force	10 kN
Operating temperature	-10... +70 °C

CAD models

Request for quotation

Product selection

Size

Nominal force (kN)

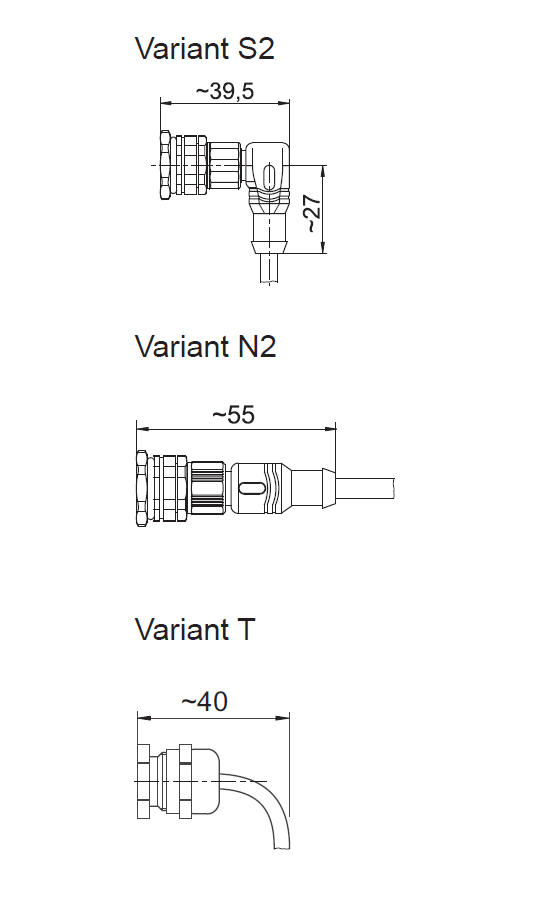

Variant

Additional Option

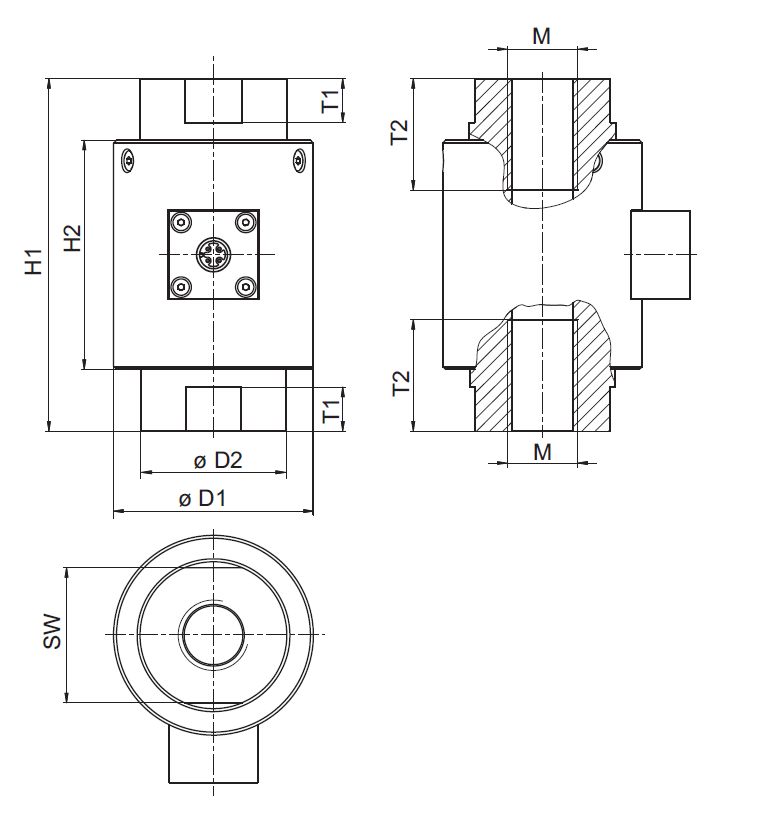

	Max. operating force	Absolute max. force of sensor	Nominal rating	Combined error	Nominal ambient temperature (°C)	Operational temperature range (°C)	Bridge supply voltage DC (V)	Enclosure protection	H1 (mm)	H2 (mm)	D1 (mm)	D2 (mm)	SW (mm)	T1 (mm)	M (mm)	T2 (mm)
	160 %	250 %	1 mV/V	0,5 %	+10... +60	-10... +70	10	IP64	100	70	50	35	32	10	M16	28

Documentation

Document

Contact the supplier

HAEHNE Elektronische Messgeräte GmbH

HAEHNE offers solutions for force measurement and tension measurement since 1977. We develop, manufacture and market sensors and evaluation electronics 'Made in Germany' to make machines and systems more efficient.
