By HIWIN Technologies Corp.

MGN9H

Manufacturer	HIWIN Technologies Corp.
Description	MGN9H
Part Number	MGN9H
Model	MGN9H

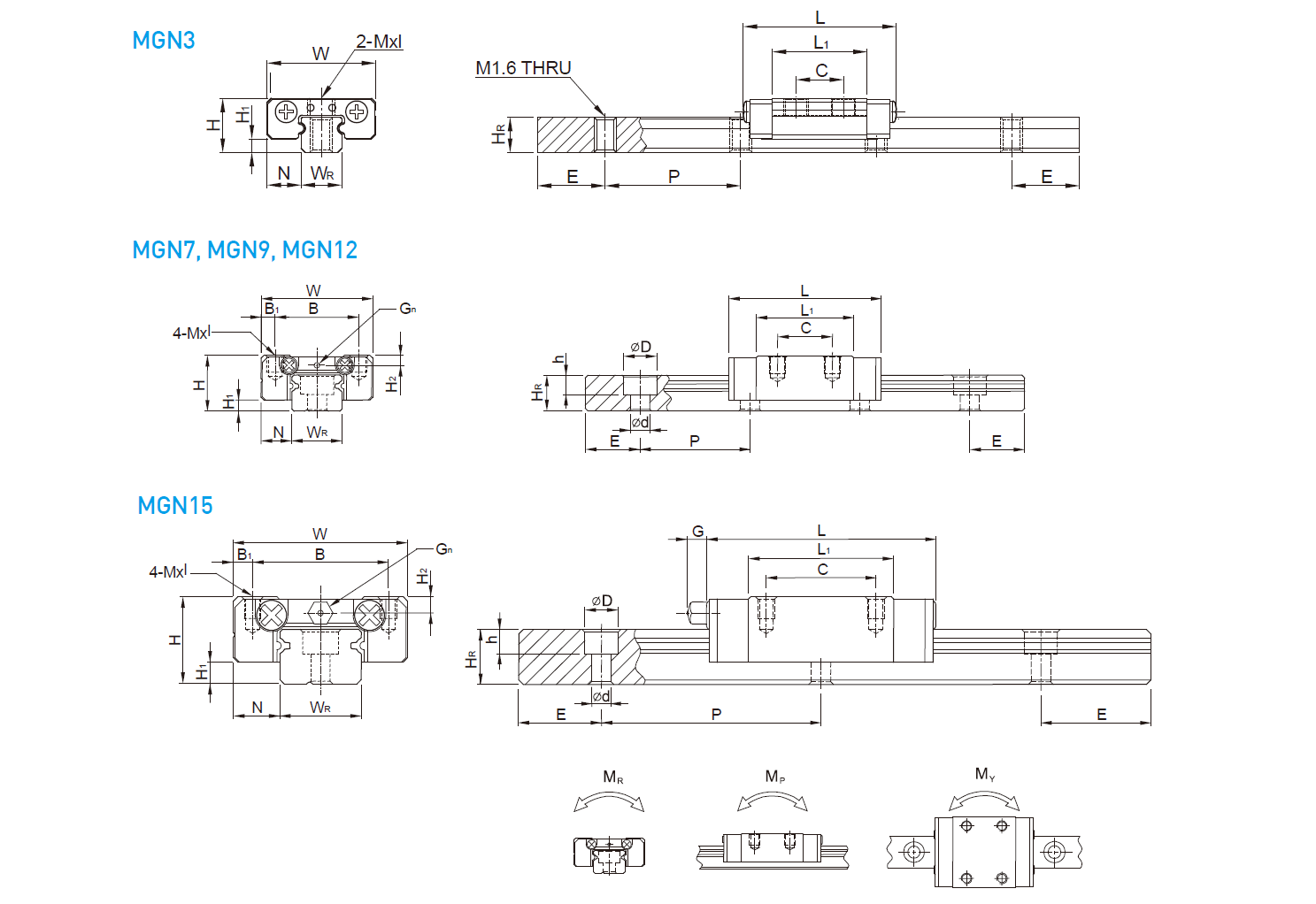

H	10
H1	2
N	5.5
W	20
B	15
B1	2.5
C	16
L1	29.9
L	39.9
Gn	Ø1.4
Mxl	M3x3
H2	1.8

WR	9
HR	6.5
D	6
h	3.5
d	3.5
P	20
E	7.5
(mm)	M3x8
C(kN)	2.55
C0(kN)	4.02
MR(kN-m)	19.6
MP(kN-m)	18.62
MY(kN-m)	18.62
Block(kg)	0.026
Rail(kg/m)	0.38

CAD models

Request for quotation

Product selection

	Part Number	Description	Model	H	H1	N	W	B	B1	C	L1	L	Gn	Mxl	H2	WR	HR	D	h	d	P	E	(mm)	C(kN)	C0(kN)	MR(kN-m)	MP(kN-m)	MY(kN-m)	Block(kg)	Rail(kg/m)
	MGN9H	MGN9H	MGN9H	10	2	5.5	20	15	2.5	16	29.9	39.9	Ø1.4	M3x3	1.8	9	6.5	6	3.5	3.5	20	7.5	M3x8	2.55	4.02	19.6	18.62	18.62	0.026	0.38
