IE3 Electric Motor - Frame Size 180

Manufacturer	HOYER
Description	IE3 Electric Motor 180l 4p B5
Part Number	5541800200
Frame Size	180
Power	18,5 (kW)
Poles	4
Mounting	B5
Voltage	400VD/690VY

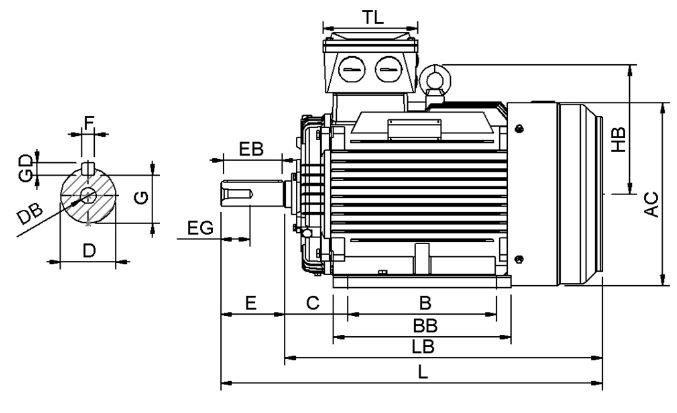

CAD models

Request for quotation

Product selection

Index	CAD	Selector	Part Number	Description	Frame Size	Power	Poles	Mounting	Voltage
1		1	5541801400	IE3 Electric Motor 180l 4p B35	180	22,0 (kW)	4	B35	400VD/690VY
2		2	5521800100	IE3 Electric Motor 180l 2p B3	180	22,0 (kW)	2	B3	400VD/690VY
3		3	5521800150	IE3 Electric Motor 180l 2p B3	180	22,0 (kW)	2	B3	230VD/400VY
4		4	5521800200	IE3 Electric Motor 180l 2p B5	180	22,0 (kW)	2	B5	400VD/690VY
5		5	5521800250	IE3 Electric Motor 180l 2p B5	180	22,0 (kW)	2	B5	230VD/400VY
6		6	5521800400	IE3 Electric Motor 180l 2p B35	180	22,0 (kW)	2	B35	400VD/690VY
7		7	5541800100	IE3 Electric Motor 180l 4p B3	180	18,5 (kW)	4	B3	400VD/690VY
8	No CAD available	8	5541800110	IE3 Electric Motor 180l 4p B3	180	18,5 (kW)	4	B3	400VD/690VY
9		9	5541800150	IE3 Electric Motor 180l 4p B3	180	18,5 (kW)	4	B3	230VD/400VY
10		10	5541800200	IE3 Electric Motor 180l 4p B5	180	18,5 (kW)	4	B5	400VD/690VY
11		11	5541800250	IE3 Electric Motor 180l 4p B5	180	18,5 (kW)	4	B5	230VD/400VY
12		12	5561800100	IE3 Electric Motor 180l 6p B3	180	15,0 (kW)	6	B3	400VD/690VY
13		13	5541800400	IE3 Electric Motor 180l 4p B35	180	18,5 (kW)	4	B35	400VD/690VY
14		14	5541801100	IE3 Electric Motor 180l 4p B3	180	22,0 (kW)	4	B3	400VD/690VY
15		15	5561800150	IE3 Electric Motor 180l 6p B3	180	15,0 (kW)	6	B3	230VD/400VY
16		16	5561800200	IE3 Electric Motor 180l 6p B5	180	15,0 (kW)	6	B5	400VD/690VY
17		17	5561800400	IE3 Electric Motor 180l 6p B35	180	15,0 (kW)	6	B35	400VD/690VY
18	No CAD available	18	5541801110	IE3 Electric Motor 180l 4p B3	180	22,0 (kW)	4	B3	400VD/690VY
19		19	5541801150	IE3 Electric Motor 180l 4p B3	180	22,0 (kW)	4	B3	230VD/400VY
20		20	5541801200	IE3 Electric Motor 180l 4p B5	180	22,0 (kW)	4	B5	400VD/690VY
21		21	5541801250	IE3 Electric Motor 180l 4p B5	180	22,0 (kW)	4	B5	230VD/400VY
