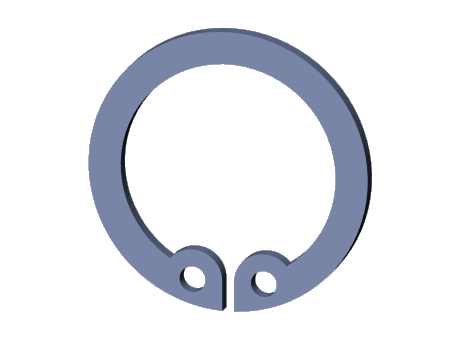

Internal circlip

Standard	BS 3673
Description	Internal circlip for bore Ø17- BS 3673
Part number	BS 3673 - d 17 - d2 17.8
Omniclass number	23.13.23.11.13.25

CAD models

Product selection

Index	Selector	Bore Ø (mm)	Groove Ø (mm)	Groove width (mm)	Thickness (mm)
1	1	8	8.4	0.9	0.8
2	2	9	9.4	0.9	0.8
3	3	10	10.4	1.1	1
4	4	11	11.4	1.1	1
5	5	12	12.5	1.1	1
6	6	13	13.6	1.1	1
7	7	14	14.6	1.1	1
8	8	15	15.7	1.1	1
9	9	16	16.8	1.1	1
10	10	17	17.8	1.1	1
11	11	18	19	1.1	1
12	12	19	20	1.1	1
13	13	20	21	1.1	1
14	14	21	22	1.1	1
15	15	22	23	1.1	1
16	16	24	25.2	1.3	1.2
17	17	25	26.2	1.3	1.2
18	18	26	27.2	1.3	1.2
19	19	28	29.4	1.3	1.2
20	20	30	31.4	1.3	1.2
21	21	31	32.7	1.3	1.2
22	22	32	33.7	1.3	1.2
23	23	34	35.7	1.6	1.5
24	24	35	37	1.6	1.5
25	25	36	38	1.6	1.5
26	26	37	39	1.6	1.5
27	27	38	40	1.6	1.5
28	28	40	42.5	1.85	1.8
29	29	42	44.5	1.85	1.8
30	30	45	47.5	1.85	1.8
31	31	47	49.5	1.85	1.8
32	32	48	50.5	1.85	1.8
33	33	50	53	2.15	2
34	34	52	55	2.15	2
35	35	55	58	2.15	2
36	36	56	59	2.15	2
37	37	58	61	2.15	2
38	38	60	63	2.15	2
39	39	62	65	2.15	2
40	40	63	66	2.15	2
41	41	65	68	2.65	2.5
42	42	68	71	2.65	2.5
43	43	70	73	2.65	2.5
44	44	72	75	2.65	2.5
45	45	75	78	2.65	2.5
46	46	78	81	2.65	2.5
47	47	80	83.5	2.65	2.5
48	48	82	85.5	2.65	2.5
49	49	85	88.5	3.15	3
50	50	88	91.5	3.15	3
51	51	90	93.5	3.15	3
52	52	92	95.5	3.15	3
53	53	95	98.5	3.15	3
54	54	98	101.5	3.15	3
55	55	100	103.5	3.15	3
56	56	102	106	4.15	4
57	57	105	109	4.15	4
58	58	108	112	4.15	4
59	59	110	114	4.15	4
60	60	112	116	4.15	4
61	61	115	119	4.15	4
62	62	120	124	4.15	4
63	63	125	129	4.15	4
64	64	130	134	4.15	4
65	65	135	139	4.15	4
66	66	140	144	4.15	4
67	67	145	149	4.15	4
68	68	150	155	4.15	4
69	69	155	160	4.15	4
70	70	160	165	4.15	4
71	71	165	170	4.15	4
72	72	170	175	4.15	4
73	73	175	180	4.15	4
74	74	180	185	4.15	4
75	75	185	190	4.15	4
76	76	190	195	4.15	4
77	77	195	200	4.15	4
78	78	200	205	4.15	4
79	79	210	216	5.15	5
80	80	220	226	5.15	5
81	81	230	236	5.15	5
82	82	240	246	5.15	5
83	83	250	256	5.15	5
84	84	260	268	5.15	5
85	85	270	278	5.15	5
86	86	280	288	5.15	5
87	87	290	298	5.15	5
88	88	300	308	5.15	5
