CAN I/0 modules

CAD models

Product selection

	Description	Digital inputs	Digital outputs	Analogue output	Analogue input	Protection class	Weight (g)	Casing size (W x H x D) (mm)	Part no.
	CAN I/0 module 16/16	16 via optical coupler	16 8 x relays, 8 x electronically	1 0V - 10V via 8-bit D/A converter	-	IP20	260	85 x 180 x 28	321002
	CAN I/0 module 8/12 -4/1	8 via optical coupler	12 4 x relays, 8 x electronically	1 0V - 10V via 8-bit D/A converter	4 0V - 10V, 10-bit resolution	IP20	260	85 x 180 x 28	321004

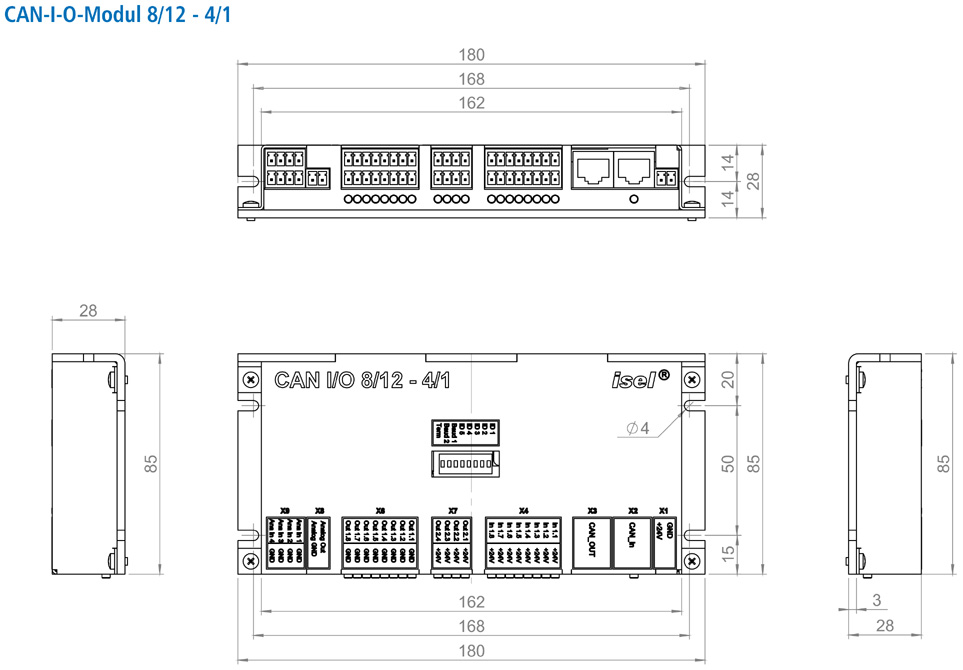

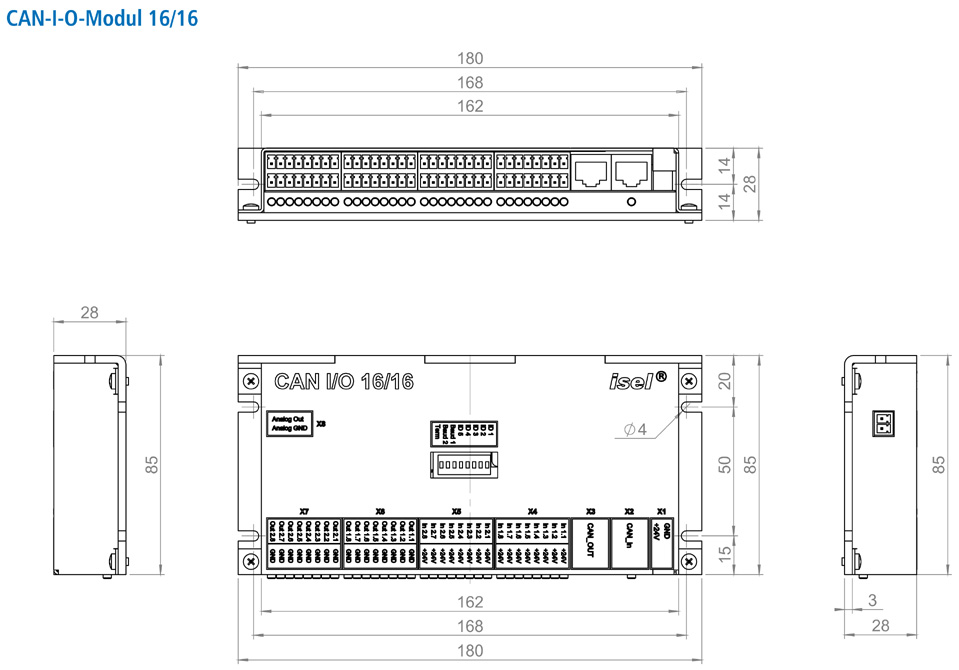

Mechanics
