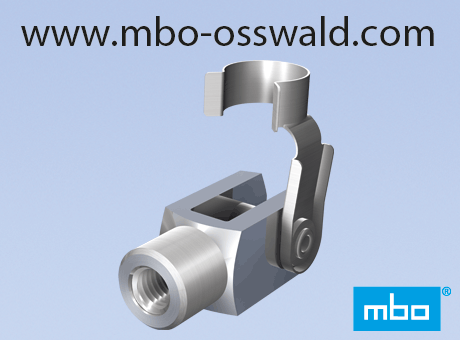

Clevis joints similar to DIN 71751 with folding spring bolt

Manufacturer	mbo Oßwald
Standard	DIN 71751
Identifier	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 4x8LH M4 x 0,7 LH Steel phosphatised oiled
Part Number	11 02 0004 8001/002
Size	AFKB 4x8 M4LH
Surface	phosphatised oiled
Material group	Steel

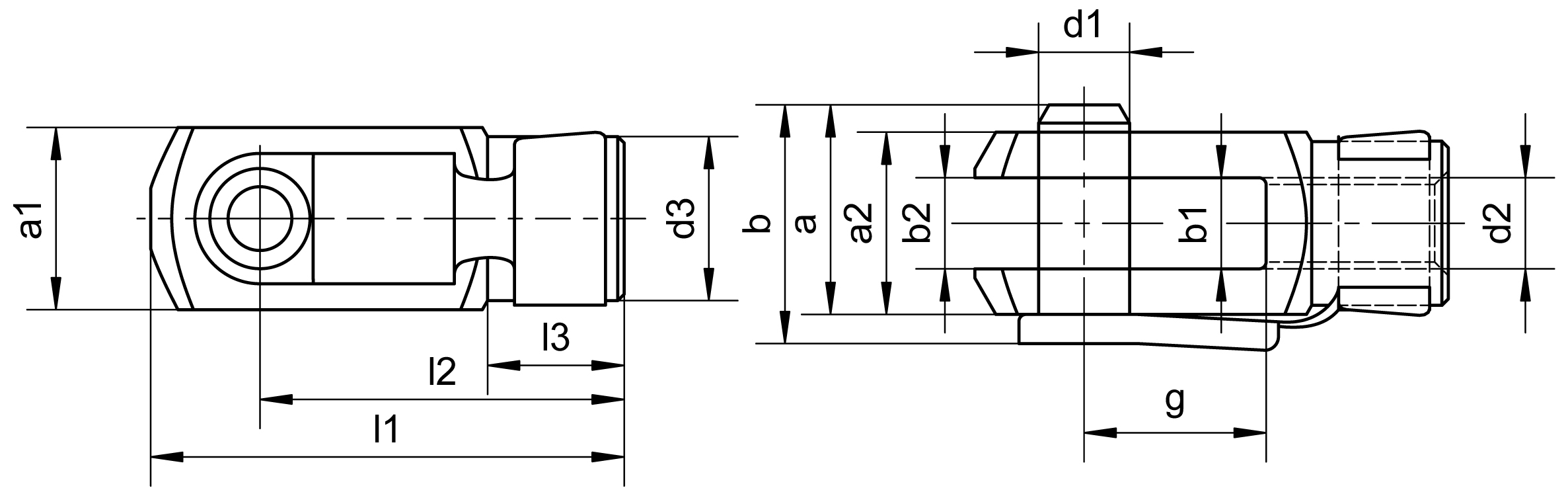

d1 h11	4
g ±0,5	8
a	9,5
a1 h11	8
a2	8

b	11,25
b1 B13	4
b2	4
d2	M4 x 0,7 LH
Thread version	Regular thread left
d3	8
l1	21
l2	16
l3	6
Mass (kg) per piece	0,006
Omniclass number	23.13.23.11.13

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Identifier	Size	Surface	Material group	d1 h11	g ±0,5	a	a1 h11	a2	b	b1 B13	b2	d2	Thread version	d3	l1	l2	l3	Mass (kg) per piece
1	1	11 02 0004 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 4x8LH M4 x 0,7 LH Steel phosphatised oiled	AFKB 4x8 M4LH	phosphatised oiled	Steel	4	8	9,5	8	8	11,25	4	4	M4 x 0,7 LH	Regular thread left	8	21	16	6	0,006
2	2	11 02 0004 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 4x8LH M4 x 0,7 LH Steel electr. galvanised white	AFKB 4x8 M4LH	electr. galvanised white	Steel	4	8	9,5	8	8	11,25	4	4	M4 x 0,7 LH	Regular thread left	8	21	16	6	0,006
3	3	10 02 0005 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 5x10 M5 x 0,8 Steel phosphatised oiled	AFKB 5x10 M5	phosphatised oiled	Steel	5	10	12	10	10	1,7	5	5	M5 x 0,8	Regular thread right	9	26	20	7,5	0,012
4	4	10 02 0005 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 5x10 M5 x 0,8 Steel electr. galvanised white	AFKB 5x10 M5	electr. galvanised white	Steel	5	10	12	10	10	1,7	5	5	M5 x 0,8	Regular thread right	9	26	20	7,5	0,012
5	5	11 02 0005 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 5x10LH M5 x 0,8 LH Steel phosphatised oiled	AFKB 5x10 M5LH	phosphatised oiled	Steel	5	10	12	10	10	1,7	5	5	M5 x 0,8 LH	Regular thread left	9	26	20	7,5	0,012
6	6	10 02 0004 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 4x8 M4 x 0,7 Steel phosphatised oiled	AFKB 4x8 M4	phosphatised oiled	Steel	4	8	9,5	8	8	11,25	4	4	M4 x 0,7	Regular thread right	8	21	16	6	0,006
7	7	10 02 0004 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 4x8 M4 x 0,7 Steel electr. galvanised white	AFKB 4x8 M4	electr. galvanised white	Steel	4	8	9,5	8	8	11,25	4	4	M4 x 0,7	Regular thread right	8	21	16	6	0,006
8	8	11 02 0005 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 5x10LH M5 x 0,8 LH Steel electr. galvanised white	AFKB 5x10 M5LH	electr. galvanised white	Steel	5	10	12	10	10	1,7	5	5	M5 x 0,8 LH	Regular thread left	9	26	20	7,5	0,012
9	9	10 02 0005 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 5x20 M5 x 0,8 Steel phosphatised oiled	AFKB 5x20 M5	phosphatised oiled	Steel	5	20	12	10	10	13,8	5	5	M5 x 0,8	Regular thread right	9	36	30	7,5	0,016
10	10	10 02 0005 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 5x20 M5 x 0,8 Steel electr. galvanised white	AFKB 5x20 M5	electr. galvanised white	Steel	5	20	12	10	10	13,8	5	5	M5 x 0,8	Regular thread right	9	36	30	7,5	0,016
11	11	11 02 0005 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 5x20LH M5 x 0,8 LH Steel phosphatised oiled	AFKB 5x20 M5LH	phosphatised oiled	Steel	5	20	12	10	10	13,8	5	5	M5 x 0,8 LH	Regular thread left	9	36	30	7,5	0,016
12	12	11 02 0005 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 5x20LH M5 x 0,8 LH Steel electr. galvanised white	AFKB 5x20 M5LH	electr. galvanised white	Steel	5	20	12	10	10	13,8	5	5	M5 x 0,8 LH	Regular thread left	9	36	30	7,5	0,016
13	13	10 02 0006 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 6x12 M6 x 1 Steel phosphatised oiled	AFKB 6x12 M6	phosphatised oiled	Steel	6	12	14	12	12	16,2	6	6	M6 x 1	Regular thread right	10	31	24	9	0,02
14	14	10 02 0006 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 6x12 M6 x 1 Steel electr. galvanised white	AFKB 6x12 M6	electr. galvanised white	Steel	6	12	14	12	12	16,2	6	6	M6 x 1	Regular thread right	10	31	24	9	0,02
15	15	11 02 0006 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 6x12LH M6 x 1 LH Steel phosphatised oiled	AFKB 6x12 M6LH	phosphatised oiled	Steel	6	12	14	12	12	16,2	6	6	M6 x 1 LH	Regular thread left	10	31	24	9	0,02
16	16	11 02 0006 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 6x12LH M6 x 1 LH Steel electr. galvanised white	AFKB 6x12 M6LH	electr. galvanised white	Steel	6	12	14	12	12	16,2	6	6	M6 x 1 LH	Regular thread left	10	31	24	9	0,02
17	17	10 02 0006 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 6x24 M6 x 1 Steel phosphatised oiled	AFKB 6x24 M6	phosphatised oiled	Steel	6	24	14	12	12	16,3	6	6	M6 x 1	Regular thread right	10	43	36	9	0,026
18	18	10 02 0006 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 6x24 M6 x 1 Steel electr. galvanised white	AFKB 6x24 M6	electr. galvanised white	Steel	6	24	14	12	12	16,3	6	6	M6 x 1	Regular thread right	10	43	36	9	0,026
19	19	11 02 0006 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 6x24LH M6 x 1 LH Steel phosphatised oiled	AFKB 6x24 M6LH	phosphatised oiled	Steel	6	24	14	12	12	16,3	6	6	M6 x 1 LH	Regular thread left	10	43	36	9	0,026
20	20	11 02 0006 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 6x24LH M6 x 1 LH Steel electr. galvanised white	AFKB 6x24 M6LH	electr. galvanised white	Steel	6	24	14	12	12	16,3	6	6	M6 x 1 LH	Regular thread left	10	43	36	9	0,026
21	21	10 02 0008 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x16 M8 x 1,25 Steel phosphatised oiled	AFKB 8x16 M8	phosphatised oiled	Steel	8	16	19	16	16	21,6	8	8	M8 x 1,25	Regular thread right	14	42	32	12	0,048
22	22	10 02 0008 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x16 M8 x 1,25 Steel electr. galvanised white	AFKB 8x16 M8	electr. galvanised white	Steel	8	16	19	16	16	21,6	8	8	M8 x 1,25	Regular thread right	14	42	32	12	0,048
23	23	11 02 0008 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x16LH M8 x 1,25 LH Steel phosphatised oiled	AFKB 8x16 M8LH	phosphatised oiled	Steel	8	16	19	16	16	21,6	8	8	M8 x 1,25 LH	Regular thread left	14	42	32	12	0,048
24	24	11 02 0008 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x16LH M8 x 1,25 LH Steel electr. galvanised white	AFKB 8x16 M8LH	electr. galvanised white	Steel	8	16	19	16	16	21,6	8	8	M8 x 1,25 LH	Regular thread left	14	42	32	12	0,048
25	25	12 02 0008 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x16FG M8 x 1 Steel phosphatised oiled	AFKB 8x16 M8FG	phosphatised oiled	Steel	8	16	19	16	16	21,6	8	8	M8 x 1	Fine-pitch thread right	14	42	32	12	0,048
26	26	12 02 0008 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x16FG M8 x 1 Steel electr. galvanised white	AFKB 8x16 M8FG	electr. galvanised white	Steel	8	16	19	16	16	21,6	8	8	M8 x 1	Fine-pitch thread right	14	42	32	12	0,048
27	27	10 02 0008 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x32 M8 x 1,25 Steel phosphatised oiled	AFKB 8x32 M8	phosphatised oiled	Steel	8	32	19	16	16	21,6	8	8	M8 x 1,25	Regular thread right	14	58	48	12	0,066
28	28	10 02 0008 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x32 M8 x 1,25 Steel electr. galvanised white	AFKB 8x32 M8	electr. galvanised white	Steel	8	32	19	16	16	21,6	8	8	M8 x 1,25	Regular thread right	14	58	48	12	0,066
29	29	11 02 0008 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x32LH M8 x 1,25 LH Steel phosphatised oiled	AFKB 8x32 M8LH	phosphatised oiled	Steel	8	32	19	16	16	21,6	8	8	M8 x 1,25 LH	Regular thread left	14	58	48	12	0,066
30	30	11 02 0008 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x32LH M8 x 1,25 LH Steel electr. galvanised white	AFKB 8x32 M8LH	electr. galvanised white	Steel	8	32	19	16	16	21,6	8	8	M8 x 1,25 LH	Regular thread left	14	58	48	12	0,066
31	31	12 02 0008 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x32FG M8 x 1 Steel phosphatised oiled	AFKB 8x32 M8FG	phosphatised oiled	Steel	8	32	19	16	16	21,6	8	8	M8 x 1	Fine-pitch thread right	14	58	48	12	0,066
32	32	12 02 0008 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 8x32FG M8 x 1 Steel electr. galvanised white	AFKB 8x32 M8FG	electr. galvanised white	Steel	8	32	19	16	16	21,6	8	8	M8 x 1	Fine-pitch thread right	14	58	48	12	0,066
33	33	10 02 0010 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x20 M10 x 1,5 Steel phosphatised oiled	AFKB 10x20 M10	phosphatised oiled	Steel	10	20	23	20	20	26	10	10	M10 x 1,5	Regular thread right	18	52	40	15	0,093
34	34	10 02 0010 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x20 M10 x 1,5 Steel electr. galvanised white	AFKB 10x20 M10	electr. galvanised white	Steel	10	20	23	20	20	26	10	10	M10 x 1,5	Regular thread right	18	52	40	15	0,093
35	35	11 02 0010 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x20LH M10 x 1,5 LH Steel phosphatised oiled	AFKB 10x20 M10LH	phosphatised oiled	Steel	10	20	23	20	20	26	10	10	M10 x 1,5 LH	Regular thread left	18	52	40	15	0,093
36	36	11 02 0010 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x20LH M10 x 1,5 LH Steel electr. galvanised white	AFKB 10x20 M10LH	electr. galvanised white	Steel	10	20	23	20	20	26	10	10	M10 x 1,5 LH	Regular thread left	18	52	40	15	0,093
37	37	14 02 0010 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x20FG M10 x 1,25 Steel phosphatised oiled	AFKB 10x20 M10FG	phosphatised oiled	Steel	10	20	23	20	20	26	10	10	M10 x 1,25	Fine-pitch thread right	18	52	40	15	0,093
38	38	14 02 0010 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x20FG M10 x 1,25 Steel electr. galvanised white	AFKB 10x20 M10FG	electr. galvanised white	Steel	10	20	23	20	20	26	10	10	M10 x 1,25	Fine-pitch thread right	18	52	40	15	0,093
39	39	10 02 0010 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x40 M10 x 1,5 Steel phosphatised oiled	AFKB 10x40 M10	phosphatised oiled	Steel	10	40	23	20	20	26,3	10	10	M10 x 1,5	Regular thread right	18	72	60	15	0,136
40	40	10 02 0010 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x40 M10 x 1,5 Steel electr. galvanised white	AFKB 10x40 M10	electr. galvanised white	Steel	10	40	23	20	20	26,3	10	10	M10 x 1,5	Regular thread right	18	72	60	15	0,136
41	41	11 02 0010 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x40LH M10 x 1,5 LH Steel phosphatised oiled	AFKB 10x40 M10LH	phosphatised oiled	Steel	10	40	23	20	20	26,3	10	10	M10 x 1,5 LH	Regular thread left	18	72	60	15	0,136
42	42	11 02 0010 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x40LH M10 x 1,5 LH Steel electr. galvanised white	AFKB 10x40 M10LH	electr. galvanised white	Steel	10	40	23	20	20	26,3	10	10	M10 x 1,5 LH	Regular thread left	18	72	60	15	0,136
43	43	14 02 0010 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x40FG M10 x 1,25 Steel phosphatised oiled	AFKB 10x40 M10FG	phosphatised oiled	Steel	10	40	23	20	20	26,3	10	10	M10 x 1,25	Fine-pitch thread right	18	72	60	15	0,136
44	44	14 02 0010 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 10x40FG M10 x 1,25 Steel electr. galvanised white	AFKB 10x40 M10FG	electr. galvanised white	Steel	10	40	23	20	20	26,3	10	10	M10 x 1,25	Fine-pitch thread right	18	72	60	15	0,136
45	45	10 02 0012 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x24 M12 x 1,75 Steel phosphatised oiled	AFKB 12x24 M12	phosphatised oiled	Steel	12	24	28	24	24	31,1	12	12	M12 x 1,75	Regular thread right	20	62	48	18	0,154
46	46	10 02 0012 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x24 M12 x 1,75 Steel electr. galvanised white	AFKB 12x24 M12	electr. galvanised white	Steel	12	24	28	24	24	31,1	12	12	M12 x 1,75	Regular thread right	20	62	48	18	0,154
47	47	11 02 0012 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x24LH M12 x 1,75 LH Steel phosphatised oiled	AFKB 12x24 M12LH	phosphatised oiled	Steel	12	24	28	24	24	31,1	12	12	M12 x 1,75 LH	Regular thread left	20	62	48	18	0,154
48	48	11 02 0012 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x24LH M12 x 1,75 LH Steel electr. galvanised white	AFKB 12x24 M12LH	electr. galvanised white	Steel	12	24	28	24	24	31,1	12	12	M12 x 1,75 LH	Regular thread left	20	62	48	18	0,154
49	49	14 02 0012 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x24FG M12 x 1,25 Steel phosphatised oiled	AFKB 12x24 M12FG	phosphatised oiled	Steel	12	24	28	24	24	31,1	12	12	M12 x 1,25	Fine-pitch thread right	20	62	48	18	0,154
50	50	14 02 0012 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x24FG M12 x 1,25 Steel electr. galvanised white	AFKB 12x24 M12FG	electr. galvanised white	Steel	12	24	28	24	24	31,1	12	12	M12 x 1,25	Fine-pitch thread right	20	62	48	18	0,154
51	51	10 02 0012 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x48 M12 x 1,75 Steel phosphatised oiled	AFKB 12x48 M12	phosphatised oiled	Steel	12	48	28	24	24	31,2	12	12	M12 x 1,75	Regular thread right	20	86	72	18	0,21
52	52	10 02 0012 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x48 M12 x 1,75 Steel electr. galvanised white	AFKB 12x48 M12	electr. galvanised white	Steel	12	48	28	24	24	31,2	12	12	M12 x 1,75	Regular thread right	20	86	72	18	0,21
53	53	11 02 0012 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x48LH M12 x 1,75 LH Steel phosphatised oiled	AFKB 12x48 M12LH	phosphatised oiled	Steel	12	48	28	24	24	31,2	12	12	M12 x 1,75 LH	Regular thread left	20	86	72	18	0,21
54	54	11 02 0012 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x48LH M12 x 1,75 LH Steel electr. galvanised white	AFKB 12x48 M12LH	electr. galvanised white	Steel	12	48	28	24	24	31,2	12	12	M12 x 1,75 LH	Regular thread left	20	86	72	18	0,21
55	55	14 02 0012 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x48FG M12 x 1,25 Steel phosphatised oiled	AFKB 12x48 M12FG	phosphatised oiled	Steel	12	48	28	24	24	31,2	12	12	M12 x 1,25	Fine-pitch thread right	20	86	72	18	0,21
56	56	14 02 0012 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 12x48FG M12 x 1,25 Steel electr. galvanised white	AFKB 12x48 M12FG	electr. galvanised white	Steel	12	48	28	24	24	31,2	12	12	M12 x 1,25	Fine-pitch thread right	20	86	72	18	0,21
57	57	10 02 0014 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x28 M14 x 2 Steel phosphatised oiled	AFKB 14x28 M14	phosphatised oiled	Steel	14	28	31	27	27	34,1	14	14	M14 x 2	Regular thread right	24	72	56	22,5	0,225
58	58	10 02 0014 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x28 M14 x 2 Steel electr. galvanised white	AFKB 14x28 M14	electr. galvanised white	Steel	14	28	31	27	27	34,1	14	14	M14 x 2	Regular thread right	24	72	56	22,5	0,225
59	59	11 02 0014 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x28LH M14 x 2 LH Steel phosphatised oiled	AFKB 14x28 M14LH	phosphatised oiled	Steel	14	28	31	27	27	34,1	14	14	M14 x 2 LH	Regular thread left	24	72	56	22,5	0,225
60	60	11 02 0014 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x28LH M14 x 2 LH Steel electr. galvanised white	AFKB 14x28 M14LH	electr. galvanised white	Steel	14	28	31	27	27	34,1	14	14	M14 x 2 LH	Regular thread left	24	72	56	22,5	0,225
61	61	16 02 0014 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x28FG M14 x 1,5 Steel phosphatised oiled	AFKB 14x28 M14FG	phosphatised oiled	Steel	14	28	31	27	27	34,1	14	14	M14 x 1,5	Fine-pitch thread right	24	72	56	22,5	0,225
62	62	16 02 0014 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x28FG M14 x 1,5 Steel electr. galvanised white	AFKB 14x28 M14FG	electr. galvanised white	Steel	14	28	31	27	27	34,1	14	14	M14 x 1,5	Fine-pitch thread right	24	72	56	22,5	0,225
63	63	10 02 0014 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x56 M14 x 2 Steel phosphatised oiled	AFKB 14x56 M14	phosphatised oiled	Steel	14	56	31	27	27	34	14	14	M14 x 2	Regular thread right	24	101	85	22,5	0,309
64	64	10 02 0014 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x56 M14 x 2 Steel electr. galvanised white	AFKB 14x56 M14	electr. galvanised white	Steel	14	56	31	27	27	34	14	14	M14 x 2	Regular thread right	24	101	85	22,5	0,309
65	65	11 02 0014 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x56LH M14 x 2 LH Steel phosphatised oiled	AFKB 14x56 M14LH	phosphatised oiled	Steel	14	56	31	27	27	34	14	14	M14 x 2 LH	Regular thread left	24	101	85	22,5	0,309
66	66	11 02 0014 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x56LH M14 x 2 LH Steel electr. galvanised white	AFKB 14x56 M14LH	electr. galvanised white	Steel	14	56	31	27	27	34	14	14	M14 x 2 LH	Regular thread left	24	101	85	22,5	0,309
67	67	16 02 0014 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x56FG M14 x 1,5 Steel phosphatised oiled	AFKB 14x56 M14FG	phosphatised oiled	Steel	14	56	31	27	27	34	14	14	M14 x 1,5	Fine-pitch thread right	24	101	85	22,5	0,309
68	68	16 02 0014 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 14x56FG M14 x 1,5 Steel electr. galvanised white	AFKB 14x56 M14FG	electr. galvanised white	Steel	14	56	31	27	27	34	14	14	M14 x 1,5	Fine-pitch thread right	24	101	85	22,5	0,309
69	69	10 02 0016 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x32 M16 x 2 Steel phosphatised oiled	AFKB 16x32 M16	phosphatised oiled	Steel	16	32	36	32	32	39,5	16	16	M16 x 2	Regular thread right	26	83	64	24	0,351
70	70	10 02 0016 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x32 M16 x 2 Steel electr. galvanised white	AFKB 16x32 M16	electr. galvanised white	Steel	16	32	36	32	32	39,5	16	16	M16 x 2	Regular thread right	26	83	64	24	0,351
71	71	11 02 0016 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x32LH M16 x 2 LH Steel phosphatised oiled	AFKB 16x32 M16LH	phosphatised oiled	Steel	16	32	36	32	32	39,5	16	16	M16 x 2 LH	Regular thread left	26	83	64	24	0,351
72	72	11 02 0016 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x32LH M16 x 2 LH Steel electr. galvanised white	AFKB 16x32 M16LH	electr. galvanised white	Steel	16	32	36	32	32	39,5	16	16	M16 x 2 LH	Regular thread left	26	83	64	24	0,351
73	73	16 02 0016 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x32FG M16 x 1,5 Steel phosphatised oiled	AFKB 16x32 M16FG	phosphatised oiled	Steel	16	32	36	32	32	39,5	16	16	M16 x 1,5	Fine-pitch thread right	26	83	64	24	0,351
74	74	16 02 0016 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x32FG M16 x 1,5 Steel electr. galvanised white	AFKB 16x32 M16FG	electr. galvanised white	Steel	16	32	36	32	32	39,5	16	16	M16 x 1,5	Fine-pitch thread right	26	83	64	24	0,351
75	75	10 02 0016 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x64 M16 x 2 Steel phosphatised oiled	AFKB 16x64 M16	phosphatised oiled	Steel	16	64	36	32	32	39,2	16	16	M16 x 2	Regular thread right	26	115	96	24	0,485
76	76	10 02 0016 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x64 M16 x 2 Steel electr. galvanised white	AFKB 16x64 M16	electr. galvanised white	Steel	16	64	36	32	32	39,2	16	16	M16 x 2	Regular thread right	26	115	96	24	0,485
77	77	11 02 0016 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x64LH M16 x 2 LH Steel phosphatised oiled	AFKB 16x64 M16LH	phosphatised oiled	Steel	16	64	36	32	32	39,2	16	16	M16 x 2 LH	Regular thread left	26	115	96	24	0,485
78	78	11 02 0016 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x64LH M16 x 2 LH Steel electr. galvanised white	AFKB 16x64 M16LH	electr. galvanised white	Steel	16	64	36	32	32	39,2	16	16	M16 x 2 LH	Regular thread left	26	115	96	24	0,485
79	79	16 02 0016 8002/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x64FG M16 x 1,5 Steel phosphatised oiled	AFKB 16x64 M16FG	phosphatised oiled	Steel	16	64	36	32	32	39,2	16	16	M16 x 1,5	Fine-pitch thread right	26	115	96	24	0,485
80	80	16 02 0016 8002/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 16x64FG M16 x 1,5 Steel electr. galvanised white	AFKB 16x64 M16FG	electr. galvanised white	Steel	16	64	36	32	32	39,2	16	16	M16 x 1,5	Fine-pitch thread right	26	115	96	24	0,485
81	81	10 02 0020 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 20x40 M20 x 2,5 Steel phosphatised oiled	AFKB 20x40 M20	phosphatised oiled	Steel	20	40	45	40	40	50	20	20	M20 x 2,5	Regular thread right	34	105	80	30	0,68
82	82	10 02 0020 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 20x40 M20 x 2,5 Steel electr. galvanised white	AFKB 20x40 M20	electr. galvanised white	Steel	20	40	45	40	40	50	20	20	M20 x 2,5	Regular thread right	34	105	80	30	0,68
83	83	11 02 0020 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 20x40LH M20 x 2,5 LH Steel phosphatised oiled	AFKB 20x40 M20LH	phosphatised oiled	Steel	20	40	45	40	40	50	20	20	M20 x 2,5 LH	Regular thread left	34	105	80	30	0,68
84	84	11 02 0020 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 20x40LH M20 x 2,5 LH Steel electr. galvanised white	AFKB 20x40 M20LH	electr. galvanised white	Steel	20	40	45	40	40	50	20	20	M20 x 2,5 LH	Regular thread left	34	105	80	30	0,68
85	85	16 02 0020 8001/002	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 20x40FG M20 x 1,5 Steel phosphatised oiled	AFKB 20x40 M20FG	phosphatised oiled	Steel	20	40	45	40	40	50	20	20	M20 x 1,5	Fine-pitch thread right	34	105	80	30	0,68
86	86	16 02 0020 8001/013	Clevis joint similar to DIN 71751, with folding spring bolt AFKB 20x40FG M20 x 1,5 Steel electr. galvanised white	AFKB 20x40 M20FG	electr. galvanised white	Steel	20	40	45	40	40	50	20	20	M20 x 1,5	Fine-pitch thread right	34	105	80	30	0,68
