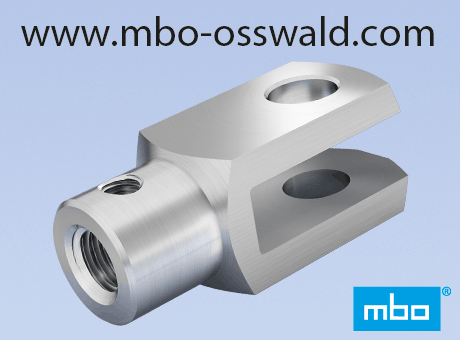

Clevises with additional thread

Manufacturer	mbo Oßwald
Identifier	Clevis with additional thread G 8x16 M8 Steel bright
Manufacturer Part Number	10 21 0008 0016/003
Size	G 8x16 M8
Material group	Steel
Surface	bright

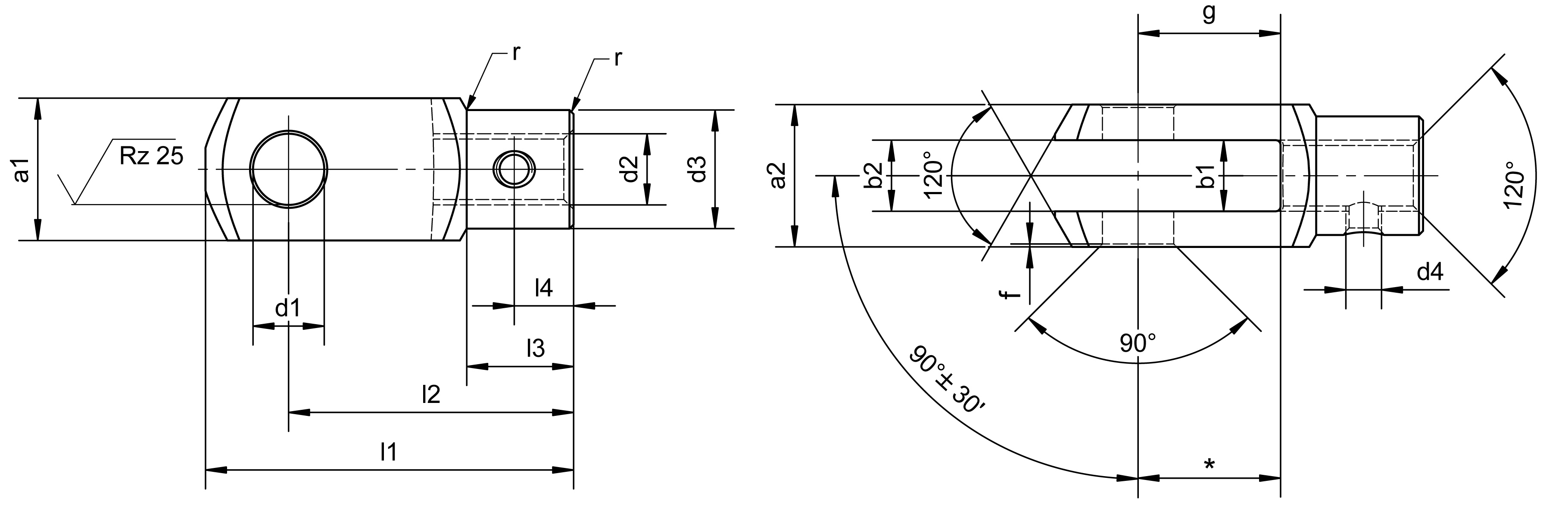

d1 H9	8
g ±0,5	16
a1 h11	16
a2	16
b1 B13	8
b2	8

d2	M8 x 1.25
Thread version	Regular thread right
d3 ±0,3	14
d4	M4 x 0.7
f ±0,2	0.5
l1	42
l2	32
l3	12
l4	6
r	0.5
Mass kg per piece	0.037

CAD models

Request for quotation

Product selection

	Manufacturer Part Number	Identifier	Size	Material group	Surface	d1 H9	g ±0,5	a1 h11	a2	b1 B13	b2	d2	Thread version	d3 ±0,3	d4	f ±0,2	l1	l2	l3	l4	r	Mass kg per piece
	10 21 0008 0016/003	Clevis with additional thread G 8x16 M8 Steel bright	G 8x16 M8	Steel	bright	8	16	16	16	8	8	M8 x 1.25	Regular thread right	14	M4 x 0.7	0.5	42	32	12	6	0.5	0.037
	10 21 0008 0016/013	Clevis with additional thread G 8x16 M8 Steel electr. galvanised white	G 8x16 M8	Steel	electr. galvanised white	8	16	16	16	8	8	M8 x 1.25	Regular thread right	14	M4 x 0.7	0.5	42	32	12	6	0.5	0.037
	10 21 0010 0020/003	Clevis with additional thread G 10x20 M10 Steel bright	G 10x20 M10	Steel	bright	10	20	20	20	10	10	M10 x 1.5	Regular thread right	18	M5 x 0.8	0.5	52	40	15	7	0.5	0.074
	10 21 0010 0020/013	Clevis with additional thread G 10x20 M10 Steel electr. galvanised white	G 10x20 M10	Steel	electr. galvanised white	10	20	20	20	10	10	M10 x 1.5	Regular thread right	18	M5 x 0.8	0.5	52	40	15	7	0.5	0.074
	10 21 0012 0024/003	Clevis with additional thread G 12x24 M12 Steel bright	G 12x24 M12	Steel	bright	12	24	24	24	12	12	M12 x 1.75	Regular thread right	20	M6 x 1	0.5	62	48	18	10	0.5	0.116
	10 21 0012 0024/013	Clevis with additional thread G 12x24 M12 Steel electr. galvanised white	G 12x24 M12	Steel	electr. galvanised white	12	24	24	24	12	12	M12 x 1.75	Regular thread right	20	M6 x 1	0.5	62	48	18	10	0.5	0.116
	10 21 0014 0028/003	Clevis with additional thread G 14x28 M14 Steel bright	G 14x28 M14	Steel	bright	14	28	27	27	14	14	M14 x 2	Regular thread right	24	M6 x 1	1	72	56	22.5	10	1	0.171
	10 21 0014 0028/013	Clevis with additional thread G 14x28 M14 Steel electr. galvanised white	G 14x28 M14	Steel	electr. galvanised white	14	28	27	27	14	14	M14 x 2	Regular thread right	24	M6 x 1	1	72	56	22.5	10	1	0.171
	10 21 0016 0032/003	Clevis with additional thread G 16x32 M16 Steel bright	G 16x32 M16	Steel	bright	16	32	32	32	16	16	M16 x 2	Regular thread right	26	M6 x 1	1	83	64	24	10	1	0.27
	10 21 0016 0032/013	Clevis with additional thread G 16x32 M16 Steel electr. galvanised white	G 16x32 M16	Steel	electr. galvanised white	16	32	32	32	16	16	M16 x 2	Regular thread right	26	M6 x 1	1	83	64	24	10	1	0.27
