Clevises with hardened cross hole

Manufacturer	mbo Oßwald
Identifier	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 4x8 M4 Steel bright
Manufacturer Part Number	10 20 0004 0008/003
Size	G 4x8 M4
Material group	Steel
Surface	bright

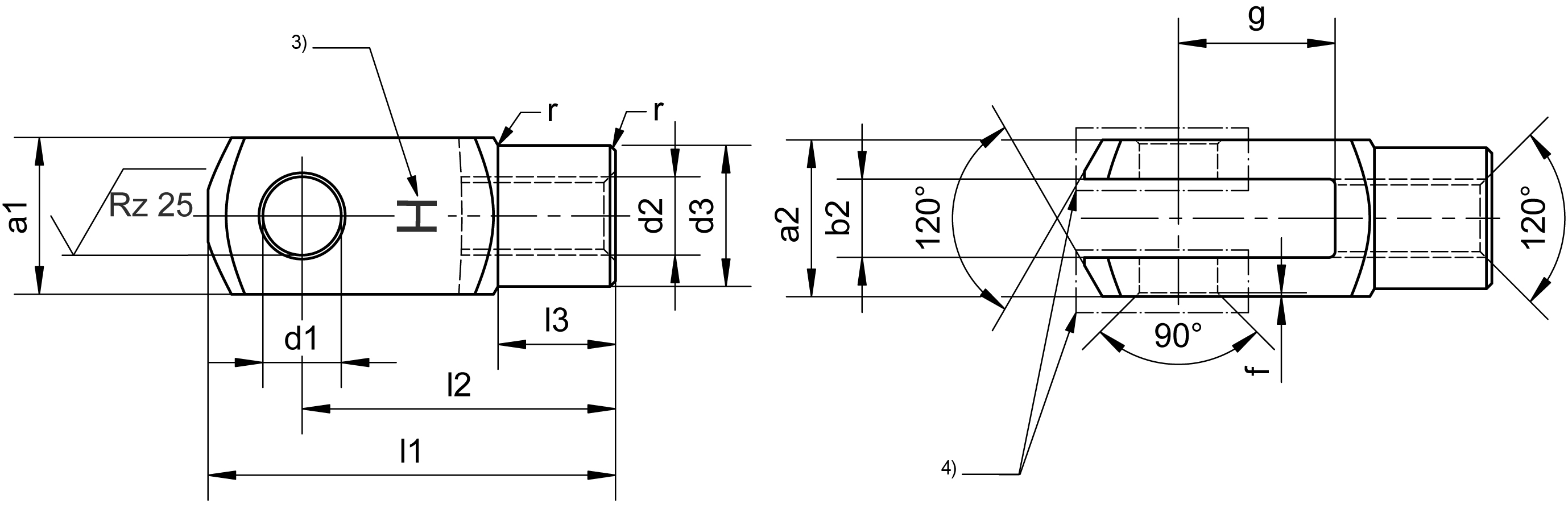

d1 +0,1	4
g ±0,5	8
a1 h11	8
a2	8

b2	4
d2	M4 x 0.7
Thread version	Regular thread right
d3 ±0,2	8
f ±0,2	0.5
l1	21
l2	16
l3	6
Mass kg per piece	0.005

CAD models

Request for quotation

Product selection

	Manufacturer Part Number	Identifier	Size	Material group	Surface	d1 +0,1	g ±0,5	a1 h11	a2	b2	d2	Thread version	d3 ±0,2	f ±0,2	l1	l2	l3	Mass kg per piece
	10 20 0004 0008/003	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 4x8 M4 Steel bright	G 4x8 M4	Steel	bright	4	8	8	8	4	M4 x 0.7	Regular thread right	8	0.5	21	16	6	0.005
	10 20 0004 0008/013	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 4x8 M4 Steel electr. galvanised white	G 4x8 M4	Steel	electr. galvanised white	4	8	8	8	4	M4 x 0.7	Regular thread right	8	0.5	21	16	6	0.005
	10 20 0005 0010/003	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 5x10 M5 Steel bright	G 5x10 M5	Steel	bright	5	10	10	10	5	M5 x 0.8	Regular thread right	9	0.5	26	20	7.5	0.009
	10 20 0005 0010/013	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 5x10 M5 Steel electr. galvanised white	G 5x10 M5	Steel	electr. galvanised white	5	10	10	10	5	M5 x 0.8	Regular thread right	9	0.5	26	20	7.5	0.009
	10 20 0006 0012/003	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 6x12 M6 Steel bright	G 6x12 M6	Steel	bright	6	12	12	12	6	M6 x 1	Regular thread right	10	0.5	31	24	9	0.015
	10 20 0006 0012/013	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 6x12 M6 Steel electr. galvanised white	G 6x12 M6	Steel	electr. galvanised white	6	12	12	12	6	M6 x 1	Regular thread right	10	0.5	31	24	9	0.015
	10 20 0008 0016/003	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 8x16 M8 Steel bright	G 8x16 M8	Steel	bright	8	16	16	16	8	M8 x 1.25	Regular thread right	14	0.5	42	32	12	0.037
	10 20 0008 0016/013	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 8x16 M8 Steel electr. galvanised white	G 8x16 M8	Steel	electr. galvanised white	8	16	16	16	8	M8 x 1.25	Regular thread right	14	0.5	42	32	12	0.037
	12 20 0008 0016/003	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 8x16 M8FG Steel bright	G 8x16 M8FG	Steel	bright	8	16	16	16	8	M8 x 1 FG	Fine-pitch thread right	14	0.5	42	32	12	0.037
	12 20 0008 0016/013	Clevis with hardened cross hole similar to DIN 71752 / DIN ISO 8140 / CETOP RP102P G 8x16 M8FG Steel electr. galvanised white	G 8x16 M8FG	Steel	electr. galvanised white	8	16	16	16	8	M8 x 1 FG	Fine-pitch thread right	14	0.5	42	32	12	0.037
