By Meccanica Besnatese

Control slides TRP Vertical mounting as Z-AXIS (TRP40 and TRP60)

Stroke from 15 to 50 mm. They are made with an anodized aluminium body; the slide is supported on cylinders made of hardened and ground steel or stainless steel, with pitch 1 adjustment screw. Sliding on self-lubricating bronze bushings.

Manufacturer	Meccanica Besnatese
Description	Stroke from 15 to 50 mm. They are made with an anodized aluminium body; the slide is supported on cylinders made of hardened and ground steel or stainless steel, with pitch 1 adjustment screw. Sliding on self-lubricating bronze bushings.
Table Model	TRP40 travel 15
A (mm)	28
B (mm)	132
Position	1

CAD models

Request for quotation

Product selection

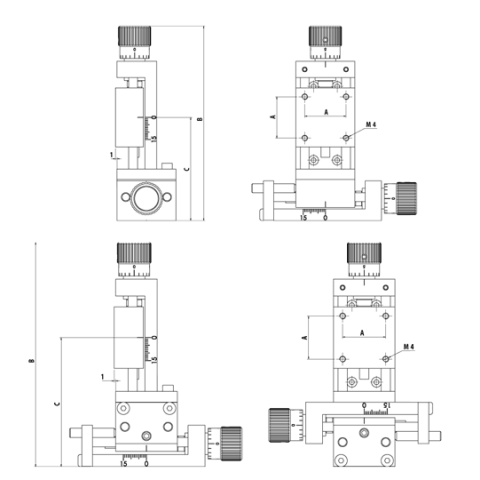

	Table Model	A (mm)	B (mm)	Position
	TRP40 travel 15	28	132	1
	TRP40 travel 15	28	132	2
	TRP60 travel 30	48	172	1
	TRP60 travel 30	48	172	2

Contact the supplier

Meccanica Besnatese

The company is specialised in manufacturing on third parties’ account and producing linear tables for industrial handling.
